A2Z i3/i5/i7 Rugged PC NVR DVR VMS CMS Pro AV Systems MOBILE-PC-6ix

Write a Review
  • A2Z Rugged PC NVR DVR VMS CMS Pro AV Systems MOBILE-PC-6ix  i3 i5 i7 Series

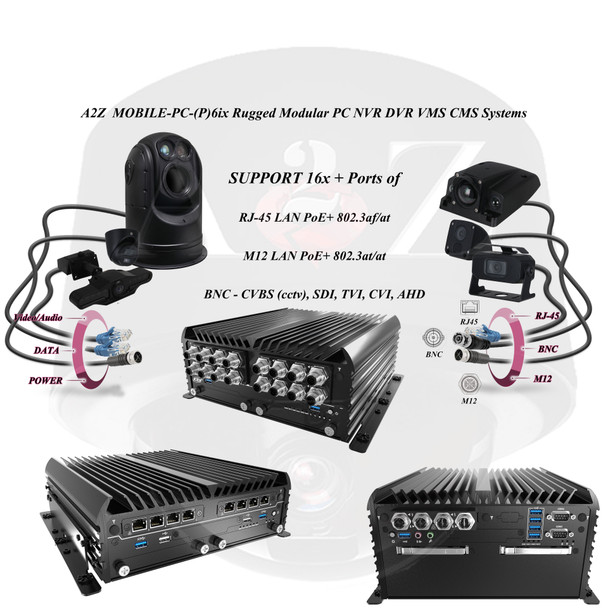

  • A2Z MOBILE-PC-6ix Rugged PC NVR DVR VMS CMS Pro AV Modular System
PoE for IP Cameras in M12 or RJ45 and BNC CCTV or HD CCTV Support Options
Contact Us


A2Z MOBILE-PC-6ix Rugged Mobile Ready PC Open-Platform NVR VMS Systems are a high quality, vastly modular, industrial grade CPU line featuring 6th and 7th as well as 8th and 9th generation Intel Processors like i3, i5 and i7. Perfect for powerful custom-tailored surveillance and security systems to other embedded applications be it Digital Signage to a world of other IoT and IIoT computing objectives like specialized Pro Audio Video Systems to Machine Vision and beyond. The A2Z MOBILE-PC-6ix Rugged NVR VMS System is a flagship among such industrial grade PC hardware and by default is supplied with Windows 10 IoT OS (with other options including Linux available) and delivers a wide range of high performing specifications alongside a wealth of attributes and unique perks for best in class systems. Provided in three chassis sizes from slim to medium and finally a "double stack" sized unit the latter two supporting various PCIe x8, PCIe x16 or PCI expansion slots such as for capture cards or video cards while the MOBILE-PC-6ix NVR or VMS platform can support integrated PoE+ Slots including 4, 8, 12 or up to 16 PoE (Power over Ethernet) Port connections and offer both standard RJ-45 Female Ports or M12 Connectors. Standard abilities on all models like triple, independent display support via DVI-I and DP connections while also boasting support for full 4K Ultra HD resolutions. From M2 SSD support to TPM 1.2 or TPM 2.0 support the premium characteristics of the MOBILE-PC-6ix line is in no shortage. Users can enjoy wide range DC power input to extreme temperature ratings, modular and comprehensive I/O options, Dual GB Lan to Support for SIM Slots for Cellular 4G or even 5G up-link and Wireless WiFi or Bluetooth Communications prove these Rugged Mobile Ready PC units provide the perfect balance of rugged design, rich features and high performance.

Superior Rugged In-Vehicle - Mobile PC CPU Performances options:

  • Open Platform Pre-Loaded/Licensed with Numerous Brand Name NVR DVR VMS CMS Software
  • Optional 4, 9, 12 or 16 Port PoE+ (Power Over Ethernet 802.3af/at) via M12 or RJ45 for IP cameras
  • Optional 1~4ch, 8ch, 16ch+ CCTV or HD CCTV via BNC Connector for CVBS, SDI, TVI, CVI, and/or AHD
  • MOBILE-PC-6ix Series (6th and 7th Generation Intel Processors) Selections:
    - Intel Core™ i3-6100TE, Dual Core, 4MB Cache, 2.7 GHz, Skylake
    - Intel Core™ i5-6500TE, Quad Core, 6MB Cache, up to 3.3 GHz, Skylake
    - Intel Core™ i7-6700TE, Quad Core, 8MB Cache, up to 3.4 GHz, Skylake
    - Intel Core™ i3-7101TE, Dual Core, 3MB Cache, 3.4Ghz Kaby Lake
    - Intel Core™ i5-7500T, Quad Core, 6MB Cache, 2.7Ghz, Kaby Lake
    - Intel Core™ i7-7700T, Quad Core, 8MB Cache, 3.8GHz, Kaby Lake

  • MOBILE-PC-P6ix PLUS Series (8th and 9th Generation Intel CFL-R S Processors)
    - Intel® Core™ i7-9700E, 8 Cores, 12MB cache, up to 4.4 GHz Coffee Lake Refresh
    - Intel® Core™ i5-9500E, 6 Cores, 9MB Cache, up to 4.2 GHz Coffee Lake Refresh
    - Intel® Core™ i3-9100E, 4 Core, 6MB Cache, 3.7 GHz Coffee Lake Refresh
    - Intel® Core™ i7-9700TE, 8 Cores, 12MB cache, up to 3.8 GHz Coffee Lake Refresh
    - Intel® Core™ i5-9500TE, 6 Cores, 9MB Cache, up to 3.6 GHz Coffee Lake Refresh
    - Intel® Core™ i3-9100TE, 4 Core, 6MB Cache, 3.2 GHz Coffee Lake Refresh
    - Intel® Core™ i7-8700T, 6 Cores, 12MB cache, up to 4.0 GHz Coffee Lake
    - Intel® Core™ i5-8500T, 6 Cores, 9MB Cache, up to 3.5 GHz Coffee Lake
    - Intel® Core™ i3-8100TE, 4 Cores, 6MB Cache, 3.1 GHz Coffee Lake
    - Intel® Pentium® G5400T, 2 Cores, 4MB Cache, up to 3.1 GHz Coffee Lake
    - Intel® Celeron® G4900T, 2 Cores, 2MB Cache, up to 2.9 GH Coffee Lake
  • DDR4 RAM Up to 32GB - Some Models up to 64GB RAM (P6ix Series)
  • Intel Q170 Chipset or Intel Q370 Express Chipset according to model
  • Triple Independent Display Support - DVI and DP Ports - 4K UHD Support
  • GbE LAN 1 & 2: Intel I219LM & I210-AT (Support Wake-on-LAN and PXE)
  • Intel® HD & UHD Graphics 610/630
  • 2x mini-PCIe (2x mSATA auto-detect) with 2x front universal I/O slots
  • 4x 2.5" SATA HDD bay and 2x mSATA supported
  • Support Up to 4x Full-size mini PCIe
  • Optional 3x SIM socket for Cellular 4G LTE Wireless Connectivity
  • Standard 4x RS-232/422/485 COM Ports, 6x USB 3.0, 16-bit Isolated digital I/O
  • Optional Power Over Ethernet 802.3at Support for up to 16 Ports RJ45 or M12 PoE - Some Models Max 8 Port*
  • TPM 1.2 (TPM 2.0 Some Models), Some Models E-Mark, EN50155 and EN-50121-3-2 certified
  • Built to United States Military Standard [MIL-STD-810G] (Not All Models/Configs)
  • mSATA with NVMe Storage Support Some Models
  • RAID SUPPORT 0, 1, 5 & 10
  • Superior Anti-Vibration Build:
  • - With SSD: 5 Grms, 5 - 500 Hz, 0.5 hr/axis
  • - With HDD: 1 Grms, 5 - 500 Hz, 0.5 hr/axis\
  • Superb Anti-Shock Construction:
  • - With SSD: 50G, half sine, 11ms
  • 9V to 48V DC wide range power input
  • Some Models w/Integrated Ignition Control Management System (Optional)
  • Cable less Internal Design for Superior Ruggedness
  • Extreme Temperature Range: -40°F ~ 158°F (-40°C ~ 70°C)
  • NOTICE: Not All features/Options available on all models simultaneously
  • Dimensions: 9 1/2" x 10 3/10" x 3" APPROX. BASE CHASSIS varies per configuration
  • Weight: 9.61 lbs. APPROX Varies Per Configuration - BASE CHASSIS.


Leading Rugged - Industrial - Mobile PC Performance:
The A2Z MOBILE-PC-6ix NVR & VMS open-platform system provides powerful computer processing with Intel Dual Core and Quad Core Processors from the 6th and 7th Generation Skylake and Kaby Lake processor family. With processor speeds of 2.7Ghz, 3.3Ghz, 3.4Ghz or 3.8GHz deployed in a fan-less design plus equipped with wide temperature hardware like DDR4 RAM up to 32GB or utilizing mSATA SSD OS Drives (also wide temperature) plus an internal cableless design for extra ruggedness these units are clearly well equipped for professional, commercial and industrial needs of many kinds. Yet it doesn't end there, Dual Intel GbE LAN ports supporting Wake-on-LAN and PXE, Support for Dual (2) SSD or HDD 2.5" Internal Drive Removable Storage Bays while supporting up to four SATA 2.5" HDDs including RAID 0, 1, 5, and 10, the units’ benefits are would seem almost endless. Models supports a various PCIe or PCI expansion slots allow custom tailored configurations included added support for all sorts of add-ons like VGA Cards, Capture Cards, CAN bus Cards, USB expansions, 10G NIC cards and more. From Intel Q170 chipset or modern functions like TPM 2.0 Support the A2Z MOBILE-PC-6ix is a top tier choice for quality rugged hardware.


Superior Connectivity:
The MOBILE-PC-6ix Rugged PC Platform in its three chassis forms presents an extremely modular industrial grade computer for professional applications in tough environments. The MOBILE-PC-6ix line holds back nothing, granting everything from Triple Independent Monitor support including 4K Resolutions to Isolated Digital I/O, 4x RS-232/422//485 COM ports, 6x USB 3.0 plus 2x USB 2.0 added together along with Internal and External SIM card support for optional 4G LTE cellular and WiFi plus Bluetooth with Wireless Antenna Kits, standard Microphone and Speaker Jacks this Industrial PC NVR VMS platform lacks little if anything in comparison to standard full size PC features yet in a compact, rugged design. In addition to this, the MOBILE-PC-6ix offers modular selection of built-in 4, 8, 12 or 16 PoE (Power Over Ethernet 802.3af/at) connectivity in both standard RJ45 or M12 connectors for simplified systems designs precisely such as those supporting PoE ready Mobile or standard IP Cameras.


Truly Rugged & Versatile with Superb Construction:
A2Z MOBILE-PC-6ix is a Modular PC based NVR VMS System that is truly mobile ready with not Just Anti-Shock, Anti-Vibration qualities to a very high degree but offers complete built-in power ignition control interface option that gives operational ignition functions like adjustable on/off timing control. All units support a wide range 9V to 48V DC input and benefit over and under-voltage as well as over-current protection also as standard features. All of this and more ensure the MOBILE-PC-6ix is not simply a rugged PC but a Rugged PC NVR or VMS system designed to meet the needs of professional transportation, transit and countless other vehicle applications be it land, sea or air not to mention fixed sites. Furthermore, these units endure tough conditions purposefully with a wide operating temperature from -13°F to 158°F and include a rugged, heavy duty aluminum casing ideal for embedded applications be it at factories, in robots or elsewhere. The A2Z's Rugged MOBILE-PC-6ix series NVR VMS System is perfect for supporting your edge-based system solutions be it simply custom mobile recording and video surveillance, vehicle operator awareness as well as a world of other objectives like live broadcast Pro AV or Digital Signage.

OPEN-PLATFORM VMS, NVR, PRO AV, Digital Signage, Etc. Software Support:
The A2Z MOBILE-PC-6ix series Rugged Mobile PC Systems are open platform units featuring options like Windows 10 IoT series Operating Systems or even Ubuntu Linux Operating Systems and featuring premium hardware components, rich driver support and ultimately vast software support options. As such, these systems provide the premium and professional open platform architecture and hardware performance to support countless different Software Application Types and brands including multiple applications at once. There is NVR and VMS software, Pro AV solutions like Live Broadcast or Transcoding solutions, Digital Signage and plenty more IoT possibilities.

A2Z MOBILE-PC-6ix VMS Open-Platform Video Management System
A2Z MOBILE-PC-6ix series can be supplied with numerous leading VMS / NVR brand Software including those licensed and Unlicensed requirements. They are too numerous possibilities to mention them all but popular choices for VMS NVR software vendors A2Z provides include brands like Geovision GV-VMS & GV-NVR, Senstar Symphony, Hanwha (FKA Samsung) WAVE and MANY more.

Last Updated October 8, 2020
