Description

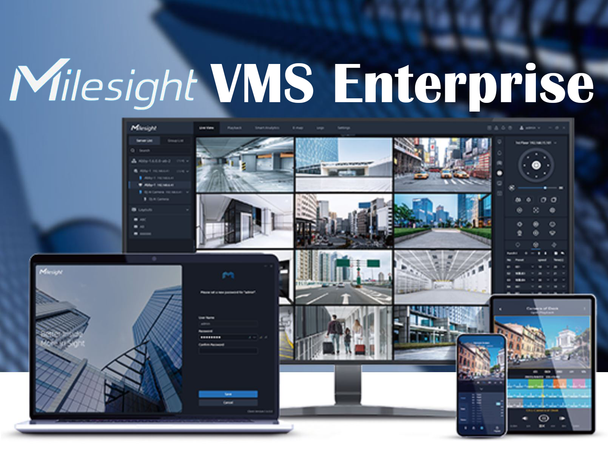

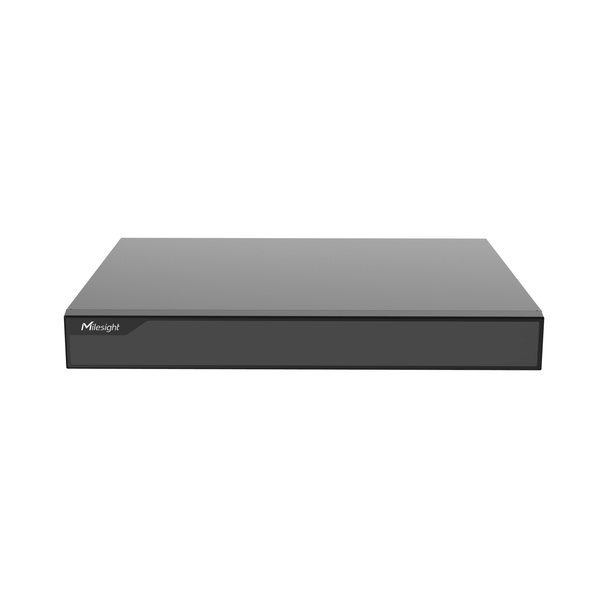

Milesight’s VE0201-A brings enterprise-grade VMS performance to 16-channel surveillance systems in a sleek 1U chassis. It boasts high-bandwidth capabilities (640Mbps input/output), seamless H.265 decoding, and intelligent features such as AI VCA (video content analysis), centralized event/alarm and LPR (ANPR) management. Supporting Miliseght's VMS PC Client Software and M-VMS mobile applications the appliance is pre-licensed and ready to deliver comprehensive, feature rich IP surveillance out of the box.
This model comes pre-loaded with Windows 10 IoT Enterprise and the full Milesight VMS software. With dual SATA HDD support (up to 40TB total) and M.2 SSD OS installation, it offers robust data protection. Its integrated GPU and Intel CPU provide effective yet efficient processing power for a satisfying video management system.
Display options include 2× HDMI and 1× DP port, supporting both independent and mirrored display modes. Dual LAN ports ensure failover or isolated traffic support and 5× USB ports plus RS485, audio I/O, and smart alarm integration round out a full featured physical interface suite. Meanwhile, diverse remote connectivity and powerful functionality of a professional VMS solution are all provided. Abilites such as N+M Failover to advanced VMS Client PC Software and Mobile Applications with advanced attributes like enhanced E-MAPS, TV Wall, IoT Connectivity and more ensure it.
✨ Key Features
- 16CH video input, VMS Pre-Licensed up to 12MP per channel
- Advanced Client/Server Architecture
- AI Analytics, Smart Search & Playback Functions
- Intuitive Interface Designs - PC Software, Mobile Apps Included
- VMS Software Upgrades Included
- 640Mbps input/output bandwidth
- Dual HDMI + DP 4K display support
- Pre-installed Milesight VMS on Windows 10 IoT
- AI VCA and smart playback
- 2× SATA (up to 40TB total)
- Dual Gigabit Ethernet ports
- USB 2.0, USB 3.0, USB-C interfaces
- Audio I/O, RS485, smart alarm
- 1U form factor, NDAA-compliant
✨ Specifications Summary
Video & Decoding
- Channels: 16
- Compression: H.265/H.264/MJPEG
- Resolution: Up to 12MP
- Bandwidth: 640Mbps input/output
- Decoding (1080P):
• 12MP@20fps = 6ch
• 8MP@30fps = 6ch
• 2MP@30fps = 16ch
Storage
- HDD: 2× SATA (up to 20TB each)
- SSD: 256GB M.2 (pre-installed)
Display
- Outputs: 2× HDMI, 1× DP
- Independent/Synchronous: Yes
Network
- Ports: 2× 1000Mbps LAN
- Concurrent Clients: 300
- Users: 1000
- Roles: 100
Interfaces
- USB: 2× USB 2.0, 2× USB 3.0, 1× USB-C
- Audio: 1× BNC In / 1× BNC Out
- RS485: Yes
System
- CPU: Intel Celeron 2.0GHz
- RAM: 2× 4GB DDR4 (max 16GB)
- OS: Windows 10 IoT Enterprise 64-bit
- Auto Power On: Yes
Power & Environmental
- Input: AC 100–240V / DC 12V
- Power: ≤30W (without HDD)
- Temperature: 0–35°C
- Humidity: 10%–90% RH
- Size: 380 × 317.6 × 51.8 mm
- Weight: 2.2 kg
- Warranty: 3 Years
