Description
Milesight’s VE1608-A is a powerhouse NVR designed for mission-critical, next generation IP surveillance deployments. Supporting 128 IP camera channels and 1920Mbps of bandwidth, it pairs cutting-edge storage and network flexibility with intuitive software. Pre-licensed (128ch) with Milesight VMS Enterprise, this pre-built appliance enables easy to establish world-class video security and AI metadata management with impressive attributes and very competitive cost. Provided as a complete, high-capacity VMS (Video Management System) NVR server, the device includes Software upgrades, PC Client Software and Mobile Applications all at no added cost.

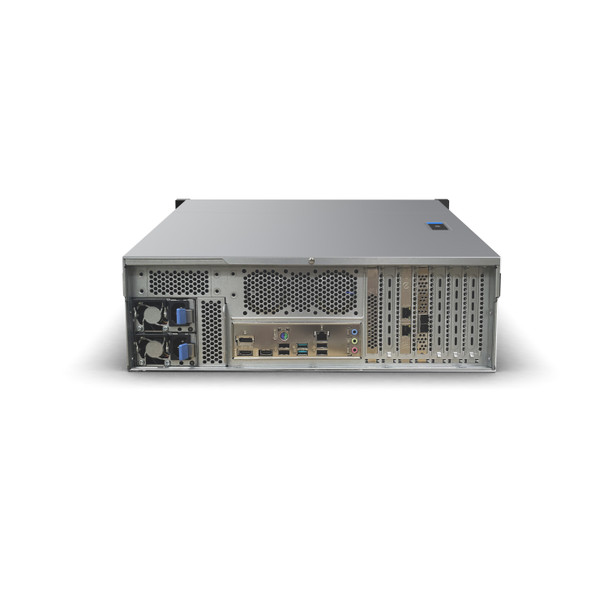

Housed in a 3U rackmount chassis, VE1608-A integrates 16 SATA bays for up to massive 320TB capacity with advanced RAID 0/1/5/6/10/50/60 support, and dual M.2 SSD slots for OS (250GB pre-installed). It includes an Intel 12th Gen i7 CPU and 16GB DDR4 RAM (expandable), delivering high-efficiency decoding and smart VMS functions. From N+M failover to P2P connectivity, users will find top tier VMS functionality with enhanced live viewing to search, playback, export and more. Powerful AI video Analytics support, 3rd party integration and IoT connectivity further ensure an enhanced solution rivaling any VMS system.
The unit outputs via dual HDMI and DP ports, while the 1× 2.5GbE and 2× 1GbE interfaces enable robust connectivity. With dual redundant PSUs, extensive USB options, and native Milesight VMS Enterprise on Windows 10 IoT, VE1608-A meets any large-scale NDAA-compliant surveillance need. For High Capacity security camera systems, the Milesight VE1608-A VMS Server grants outstanding results at the best price.
✨ Key Features
- 128CH IP input with 12MP support
- 1920Mbps bandwidth throughput
- RAID 0/1/5/6/10/50/60
- Advanced Client/Server Architecture
- AI Analytics, Smart Search & Playback Functions

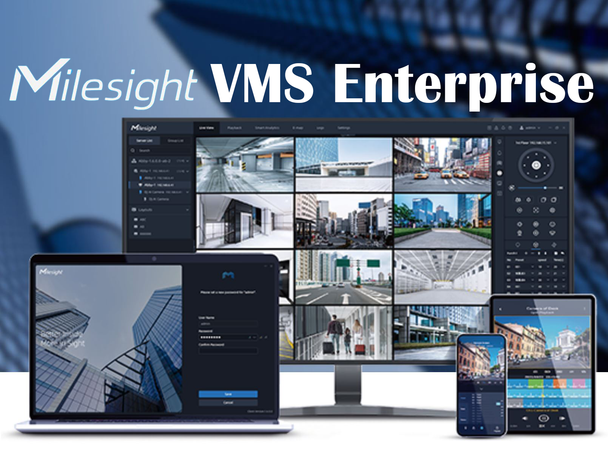

- Intuitive Interface Designs - PC Software, Mobile Apps Included
- VMS Software Upgrades Included
- Dual HDMI + 1× DP display output
- 16× SATA HDD (20TB max per drive)
- Dual M.2 SSD (1× 250GB installed)
- Windows 10 IoT Enterprise + VMS Enterprise software
- Intel 12th Gen i7 CPU, 2× 8GB DDR4 RAM
- 1× 2.5GbE, 2× 1GbE ports
- 2× USB 3.0, 2× USB 3.2 Gen2, 4× USB 2.0
- Redundant PSU
- NDAA-compliant 3U rackmount system
✨ Specifications Summary
Video & Decoding
- Channels: 128
- Formats: MJPEG, H.264, H.265
- Max Decoding: 12MP
- Decoding Capabilities:
• 12MP@20fps = 6ch
• 8MP@30fps = 6ch
• 2MP@30fps = 39ch
• 720P@30fps = 52ch
• D1@30fps = 64ch
- Bandwidth: 1920Mbps (input/output)
Storage
- 16× SATA bays (3.5"/2.5"), hot-swappable
- 2× M.2 SSD slots (250GB installed)
- RAID 0/1/5/6/10/50/60
Display
- HDMI ×2, DP ×1
- Modes: Independent/Synchronous
Network
- 1× 2.5GbE, 2× 1GbE
- 300 clients, 1000 users, 100 roles
Interfaces
- Front: 2× USB 3.0
- Rear: 4× USB 2.0, 2× USB 3.2 Gen2
- Audio: 1× BNC In/Out
- RS232/485, PCIe, PS/2
System
- CPU: Intel Core 12th Gen i7
- RAM: 2× 8GB DDR4 (expandable via 4 slots)
- OS: Windows 10 IoT Enterprise
Power & Environmental
- Dual PSU, AC 100–240V, 50–60Hz
- Power Use: ≤75W (no drives)
- Size: 480 × 675 × 133.5 mm
- Weight: 17–19kg
- Temp: 0°C to 50°C
- Humidity: 10%–90% RH
- Warranty: 3 Years
