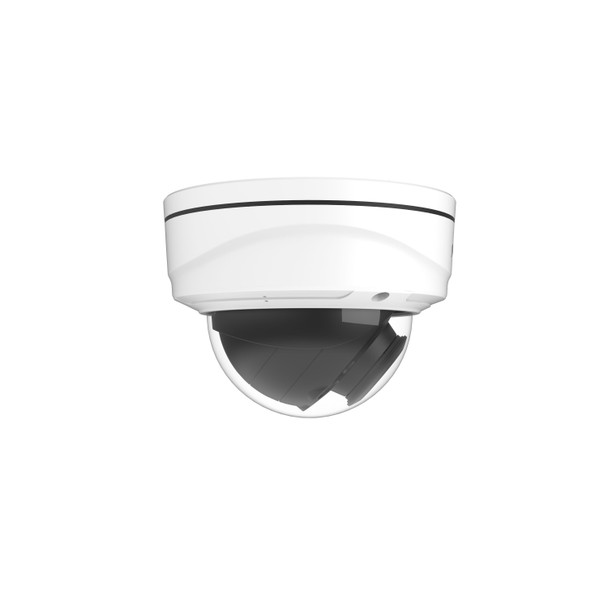

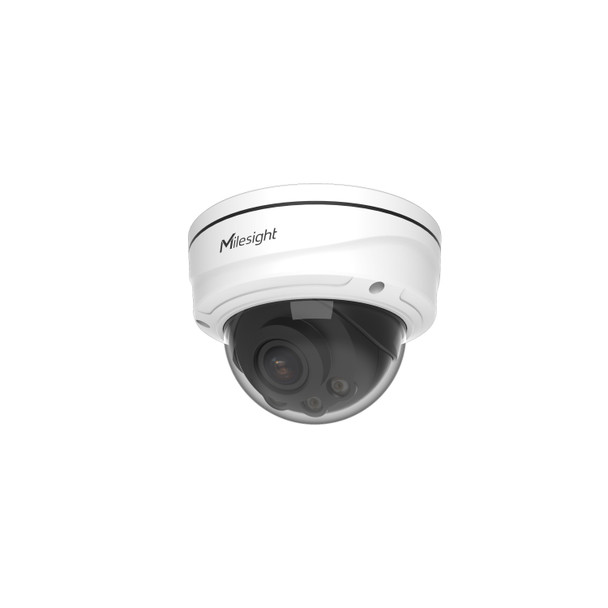

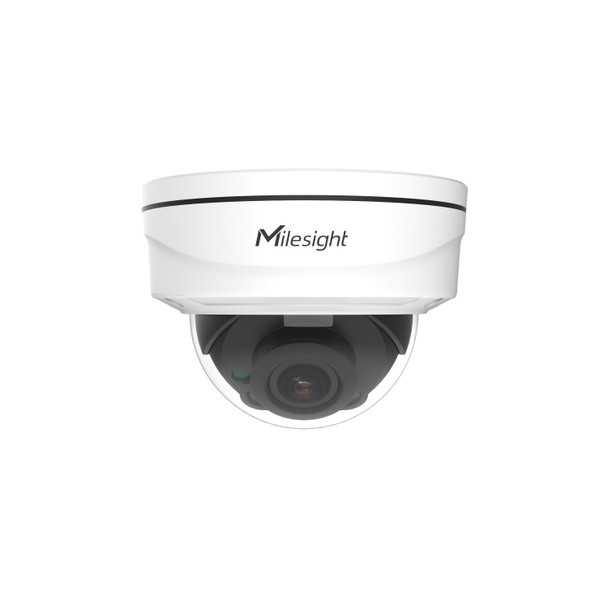

Milesight MS-C8272-FIPE 4K AI IR Vandal Dome IP Security Camera

Milesight MS-C8272-FIPE 4K AI IR Vandalproof Dome IP Security Camera delivers the pinnacle of modern pro video surveillance. Featuring a large format Sony Starvis 8-megapixel sensor the device provides stunning clarity and industry leading low light performance in full 4K UHD video. Combining other high-grade attributes like Motorized P-Iris Lens, True Wide Dynamic Range and Smart IR Illumination, this Milesight IR Vandal Dome Security Camera yields top of the line video security. Rich capabilities are realized in every degree, from high-efficiency video compressions methods like H.265 to high quality audio codecs like AAC, this security camera leaves little to else to desire. From Built-in Mic to full function web browser interface coupled with intelligent video analysis and high-capacity edge-storage, the Milesight MS-C8272-FIPE 4K AI IR Vandal Dome IP Camera is ready to provide pro video security all on its own. However, with just as rich network protocol support, the camera easily integrates with a wide range of professional systems including security to other pro-video demands. Capable of providing specialized functions including A.I. deep learning Video Analytics to rugged outdoor, vandalproof and weatherproof design, the unit is well equipped for all sorts of project demands. Additional optional mounts including in-ceiling to wall, pole or pipe mounting, there is hardly a place this advanced security camera cannot go.

Milesight MS-C8272-FIPE Main Features:

• 1/1.8" 8 MegaPixel (4K 3840x2160) @ 30fps Real-time
• Motorized lens: 3.6~10mm - P-Iris: HFOV 110° ~ HFOV 46° / VFOV 61° ~ VFOV 25°
• Powerful IR Night Vision 50m
• Color: 0.009 Lux @ F1.4 / B/W: 0 Lux IR ON
• Super WDR 120dB
• A.I. (Artificial Intelligence) Vehicle/Human Detection
• 3-Axis Camera Orientation
• ONVIF for 3rd Party Security Systems
• Micro SD Card Support
• Built-in Microphone
• Audio External I/O device
• Alarm/Relay External I/O device support

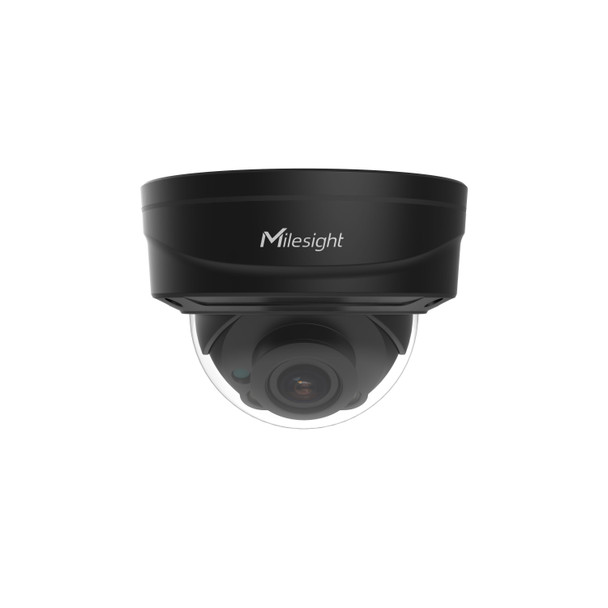

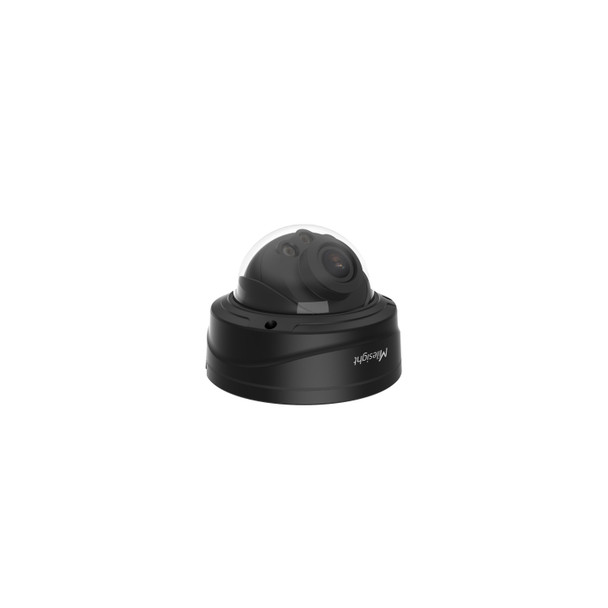

• Black Housing Optional (White Default)
• Weatherproof up to IP67 rating
• Vandalproof High Impact IK10 rating
• Optional mounts and adapters including recessed mount available
• PoE OR 12VDC Power Support

Camera Specs:

4K NDAA AI Motorized Pro Dome Network Camera
Image Sensor: 1/1.8″ Progressive Scan CMOS
Min. Illumination Color: 0.009Lux@F1.4
B/W: 0Lux with IR on
WDR 120dB Super WDR
Lens: Motorized 3.6~10mm@F1.4 P-Iris
Mount: Φ14
Field of View: H110°~H46°/D126°~D54°/V61°~V23°
Shutter Time: 1/100000s~1s
IR Distance Up to 50m
Day/Night Mode: Day/Night/Auto/Customize/Schedule
S/N: >55dB

Video
Max. Image Resolution: 3840x2160 (4K Ultra HD)
Primary Stream:
60Hz: 30fps@ (3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@ (3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream:
60Hz: 30fps@ (704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@ (704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream:
60Hz: 30fps@ (1920x1080, 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@ (1920x1080, 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
Video Compression: H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate: 16Kbps~16Mbps (CBR/VBR Adjustable)
Privacy Masking: Up to 8 Areas (Mask Area and Mosaic Area are optional)
ROI: Up to 8 areas
Image Setting: Brightness/Contrast/Saturation/Sharpness

Interface
Ethernet: 1*RJ45 10M/100M Ethernet Port
Audio I/O: Built-in Microphone and 1 Audio Output interface
Alarm I/O: 1/1
Network
Network Storage: NAS (Support NFS, SMB/CIFS), ANR
Protocol: IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2

Audio
Audio Compression: G.711/AAC/G.722/G.726
Audio Sampling Rate: 8/16/32/44.1/48KHz
Audio Bit Rate: 16~256kbps
Two-way Audio: Support
Intelligent Analytics
Video Analysis: Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection & Face: Attribute Recognition, Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap; Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically.
Object Counting & Report: Count the number of objects crossing the line, optionally human and vehicle,
Support regional people counting for up to 4 detection areas

System
Storage Support: microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced Function: Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support: Yes, Voice & Video-over-IP
Event Trigger: Motion Detection, Network Disconnection, Audio Alarm, External Input, etc.
Event Action: FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
System Compatibility: ONVIF Profile G & M & S & T, API

General
Working Temperature: -40°C~60°C
Working Humidity: 0~95%(Non-condensing)
Power Supply: PoE (802.3af) / DC 12V±10%
Power Consumption:
7W MAX / 9W MAX (With IR on)
Weather Proof: Up to IP67-rated for Weather-resistant Performance
Housing: Vandal-proof IK10-rated Metal Housing
Weight: 1100g
Dimensions: Φ143mmX108.4mm
Warranty: 3/5 Years
