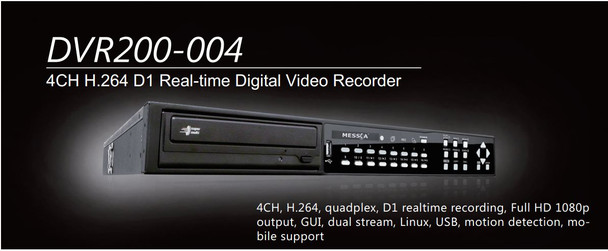

  • Messoa DVR200-004 DVR key features
  • Messoa DVR200-004 remote viewing software

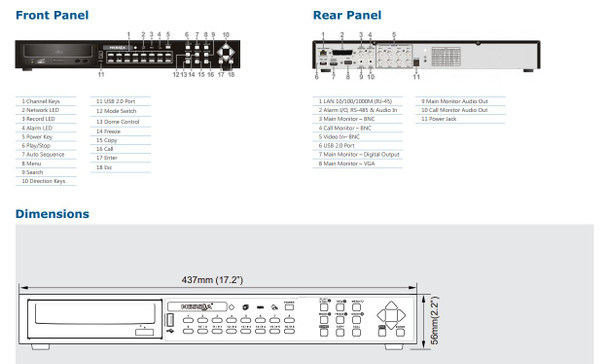

  • Messoa DVR200-004 dvr diagram
Contact us on 855 376 6699


Messoa DVR200-004 4ch DVR (Digital Video Recorder) is a powerful real-time H.264 Linux DVR system providing the highest quality CCTV recording and monitoring. The DVR system allows full D1 Resolution recording at 120fps and H.264 including dual streaming allows for optimized and individually configured video streams. The Messoa DVR200-004 DVR delivers professional system management with multiple layers of remote viewing applications including CMS Support; web Browser, Remote Client and mobile device viewing. Locally the Messoa DVR is equally impressive with a HD video output for true 1080P High Definition viewing. Other local benefits include DVR front control panel and IR Remote control.
The Messoa DVR200-0044 channel Digital Video Recorder (DVR) is also equipped with a variety of other quality attributes. Support for four audio inputs and one audio output enable two way communications. The unit further supports External I/O alarm devices, has a RS-485 PTZ Camera telemetry interface and even includes RS-232C for POS applications. As a quadplex DVR the unit simultaneously provides four major functions like recording, monitoring, searching and network viewing. The DVR unit’s software solutions enable efficient use and advanced operations such as multiple search methods.  Countless other benefits such as support for Two SATA Hard Drives ensure an optimal recording solution. The Messoa DVR200-004 Real-time D1 H.264 DVR is a powerful solution for top tier security camera systems.

Messoa DVR200-004 Main Features:

  • 4CH Linux Embedded DVR
  • Advanced H.264 Compression
  • D1 Real-time 120fps Monitoring/Recording
  • Full HD 1080P High Definition output
  • Dual Streaming Technology
  • Advanced GUI for easy operation and setup
  • USB Support and DVD Writer
  • Built-in Detection Methods
  • Two Way Audio Supported
  • RS-485 PTZ Camera Control
  • RS-232C for POS Applications
  • Support Mobile Devices

Messoa DVR200-004 Specifications

Operating System Embedded (Linux)
Display Resolution 1024x768, 1280x1024, 1920x1080p
Input BNC×8, 1.0 Vp-p, 75 ohm
Digital Display
Output / VGA 1024x768, 1280x1024, 1920x1080p
Main Monitor BNC × 1, 1.0 Vp-p, 75 ohm
Call Monitor BNC × 1, 1.0 Vp-p, 75 ohm
Video Looping N/A
 Input RCA x 4, Line-In
Main Audio RCA x1, Line-Out
Call Audio RCA x1, Line-Out
 Compression Method Proprietary
 Data Rate 8 KB/s, per CH
Compression Method H.264
Recording Mode Schedule, Alarm, Motion Detection
Pre-alarm Support
NTSC 720x480 Max 120 pps
 720x240 Max 120 pps
 360x240 Max 120 pps
PAL 720x576 Max 100 pps
 720x288 Max 100 pps
 360x288 Max 100 pps
Recording Quality 8 Levels Presets, Adjustable
Image Size 8 KB to 22 KB/Picture
Storage Mode Linear / Circular
Data Lifetime Yes (Programmable)
Built-in Storage Interface 2 SATA total (for HDD or DVD+RW)
Cartridge / DVDRW Optional
Export 2 USB 2.0 Ports (support Thumb Drive or DVD+RW)
Alarm Input 4 x Terminal Block (TTL)
Alarm Relay Output 3 Terminal Block, 1.0A / 30 VDC or 1.0A / 120VAC
Alarm Detection N.C. / N.O., Programmable
Motion Detection 16 × 12 Grid Array, Sensitivity, and Trigger level adjustable
Video Loss Detection Programmable
Network Connectivity RJ45, 10/100/1000 Mbps Ethernet,
Supports PPPoE/ DDNS/ DHCP
Remote Control Software CMS supported
Remote Operation Monitoring, Playback, Recording, System setup, Dome
Camera control, Archiving
RS-485 Terminal Block
RS-232C D-SUB for POS applications
IR Remote Yes
Dome Camera Control Protocol DSCP, Pelco P, Pelco D, AD422, Fastrax 2, Panasonic, JVC
Unit Dimensions (W × H × D) 437 × 373 × 56 mm (17.2 × 14.7 × 2.2 inches)
Unit Weight 5.5 Kg (12.1 lbs.)
Package Dimensions
(W × H × D) 510 × 450 × 135 mm (20 × 17.7 × 5.3 inches)
Package Weight 6.1 Kg (13.4 lbs.)
Operating Temperature 0 °C ~ 40 °C (32 °F ~ 104 °F)
Relative Humidity 10% ~ 90%, Non-condensing
Power Consumption & Input AC 100 ~ 240V, 50-60Hz, 60W adaptor
Order Information
Model No. NTSC: DVR200-004-N;
PAL: DVR200-004-P
