KT&C KPC-EW230NUWX 960H WDR Mini Bullet Security Camera

Write a Review
Calculated at Checkout
  • KT&C KPC-EW230NUWX WDR Mini Bullet Security Camera 750TVL 960H
  • KT&C KPC-EW230NUWX 750TVL Bullet Camera

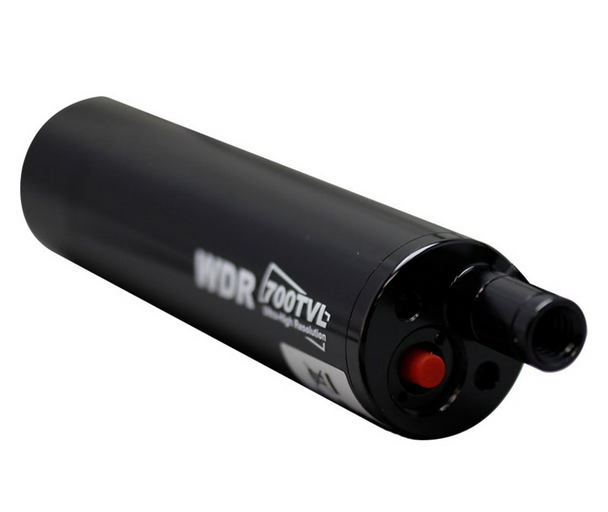

  • KT&C KPC-EW230NUWX OSD Joystick Control (Red Button)
  • KT&C KPC-EW230NUWX side view
  • KT&C KPC-EW230NUWX specifications

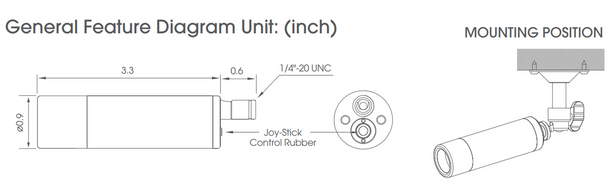

  • KT&C KPC-EW230NUWX diagram (mounting and size)


KT&C KPC-EW230NUWX 960H WDR Mini Bullet Security Camera is the latest version of a popular series with heavily upgraded technology for superb video security. The unit is now equipped with a cutting-edge 960H double scan CCD sensor yielding stunning 750TVL and offering WDR (Wide Dynamic Range) function for the most challenging lighting. Intelligent design allows support for a variety of lens options and the units include a rugged outdoor ready casing. The ultra-low light abilities and fully loaded image enhancements allow the KT$C KPC-EW230NUWX to stand as a best in class selection.

In addition to the benefits of 3D Digital Noise Reduction, Wide Dynamic Range, Digital Slow Shutter (DSS) or Highlight Compensations, full camera control via OSD and built-in joystick is a true advantage. The benefits of Privacy masking, motion detection to image mirror modes, digital zoom, and more is all easily controllable. Added design details for in-depth image control to multi-language menu make use enjoyable and effective. Numerous Fixed Lens and even Pinhole lens while the unit maintains an IP67 weatherproof rating, supports universal mounting plus includes simple 12VDC low power input.

The KT&C KPC-EW230NUWX 960H WDR Mini Bullet Security Camera provides excellent color reproduction and ultra-low lux viewing for nearly any environment. It offers superb cost effectiveness and delivers a high quality product that is clearly at the top of the market. KT&C surveillance solutions meet some of the world’s most demanding applications and it is likely that you have even seen such quality from media such as extreme sports where KT&C is often used. This model is no different, an updated version of one of the most popular units, it is certain to remain a top seller with incredible price versus performance.


KT&C KPC-EW230NUWX Main Features:

  • 960H 750TVL 1/3" Sony Double Scan Super HAD CCD II
  • Fixed Lens: 3.6mm, 4.3mm, 6mm, 8mm, 12mm Pinhole: 3.7mm or 4.3mm
  • Digital Day/Night with DSS: 0.000001 Lux (DSS: x256)
  • 3D DNR Digital Noise Reduction / WDR Wide Dynamic Range, HLC Highlight Compensation, DSS Digital Slow Shutter
  • Privacy Masking, Image Mirror/Flip, Digital Zoom, Motion Detection
  • Brightness, Contrast, Hue, Gain, Sharpness, BLC, While Balance Settings
  • Multiple Language Support for OSD (On-screen display menu) w/Built-in joystick control
  • IP67 Weatherproof Rated Aluminum Casing- Support for Optional 1/4-20 Universal Mounts
  • Temperature Range: 14 °F ~ 122 °F (-10 °C ~ 50 °C) Humidity: Less than 80% RH
  • Device Size: Ø0.9 x 3.3 inch (Ø23 x 85 mm)
  • Weight: 0.15 lbs (68 g)
  • 12VDC Power Input
