Hikvision OEM DS-2CD2142FWD-I 4MP IP Camera IR Vandal Proof Dome

  • Hikvision OEM DS-2CD2142FWD-I 4MP Vandal IR Dome IP Camera
  • Hikvision DS-2CD2142FWD-I OEM 4MP Dome IP Camera

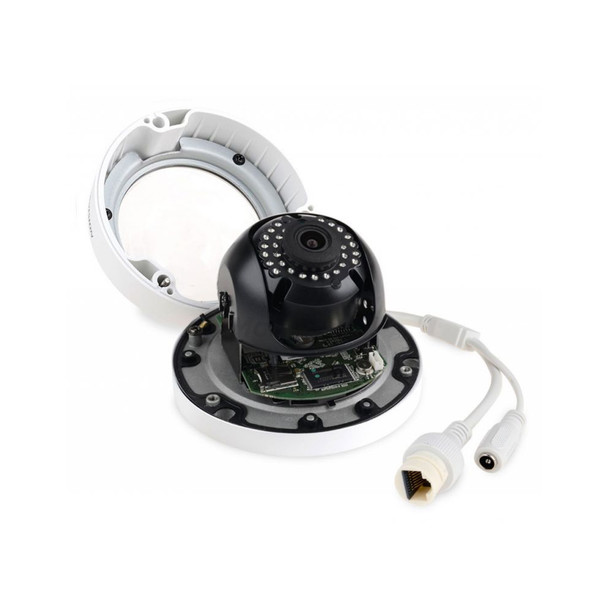

  • Hikvision DS-2CD2142FWD-I OEM Dome IP Camera open
  • Hikvision DS-2CD2142FWD-I Dome IP Camera accessories

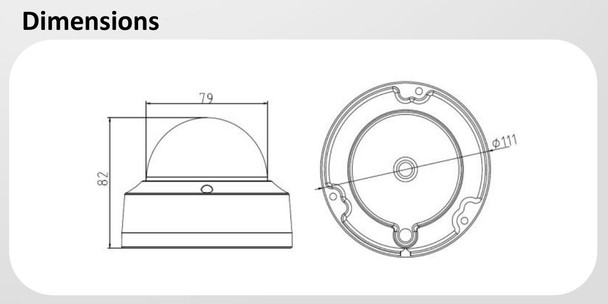

  • Hikvision DS-2CD2142FWD-I OEM Dome Dimensions
Calculated at checkout

Product Description

Hikvision OEM DS-2CD2142FWD-I 4MP Vandal IR Dome IP Camera is a discreetly compact dome style security camera packing a powerful combo of pro surveillance attributes. Built upon the latest 4 Megapixel Image sensor delivering up to 20fps in full 4MP HD this unit also allows dual streaming and use of multiple codecs like H.264. Including True Day/Night operation, powerful IR Night vision plus WDR and 3D DNR all add up for optimized clarity in challenging lighting. By default A2Z supplies the 2.8mm super wide angle model yet a 4mm Fixed and others are available upon request. A great choice for general security applications that want the maximum performance per price this small form factor dome security camera will likely surprise you with many advantages. Intelligent Video Analytics to ROI (region of interest) and its clear the unit is undoubtedly another best in class Hikvision IP Camera.

Hikvision OEM DS-2CD2142FWD-I Main Features:

  • 1/3" Progressive Scan CMOS
  • Up to 4 megapixel HD at 20ftps or Full 1080P HD Video at 30fps
  • Dual video streaming including H.264, H.264+ and MJPEG
  • 2.8mm Fixed Megapixel Lens for Wide HFOV (4mm option available)
  • 120dB WDR (Wide Dynamic Range) and 3D DNR (Digital Noise Reduction)
  • Flexible 3-axis camera orientation
  • Powerful IR LED Night Vision up to 30m IR range (or about 100ft)
  • Micro SD Card Support for local storage up to 128GB
  • Smart Video Analytics like Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis
  • IT Support for HTTPS, FTP, DNS, DDNS, RTSP, PPPoE, UPnP, 802.1X, QoS, IPv6 and more
  • 3rd Party System Compatibility with ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI
  • Mobile Monitoring via EZVIZ P2P or iVMS-4500
  • Outdoor Weatherproof IP66 rated
  • Vandal Proof High Impact IK10 rated
  • Operating Conditions: -30°C ~ 60°C or (-22°F ~ 140°F)
  • Power Supply: 12VDC or PoE (802.3af)
  • Dimensions: Φ111mm × 82mm (4.4” × 3.2”)
  • Weight: 500g (1.1lbs)

    W - Wireless Model Special Order
    S - Audio/Alarm Model Special Order

NOTE: OEM products are equivalent to branded version but include brand no label plus alternate part numbers.


Hik OEM DS-2CD2142FWD-I Superior Video Security:
Hikvision 4MP Vandal IR Dome IP Cameras employ powerful attributes to deliver round the clock IP surveillance in nearly any application. The advanced image processing like WDR, low light capabilities even before the added IR LEDs to a superb new wide screen format 4 Megapixel resolution simply introduce what is clearly a powerhouse IP camera at a most reasonable cost. Enjoy up to 100 feet or IR Night Vision while the default 2.8mm lens provides superb wide area coverage. Even more this 4MP Vandal Proof Dome IP Security Camera likewise allows H.264+, H.264 and MJPEG codecs as well as dual streaming for highly versatile video stream needs. Other advanced functions from Privacy masking to ROI (region of interest) and an assortment of commonly adjusted camera settings make for a totally pro-grade solution.

Hik OEM DS-2CD2142FWD-I IR Dome flexibility:
This OEM IR Vandal Dome IP Camera from Hikvision is a next generation producing of a well-designed and highly popular mini vandal dome IP camera series. This latest model packs numerous improvements in addition to a new level in high definition video resolutions. This unit gives an easily navigated web interface and an array of configurable options to best match you security system objective. Numerous commonly supported protocols and standards like ONVIF, RTSP, QoS, FTP, UPnP and plenty more give integration a wide net of possibilities. Regarding flexible install, the units also support PoE or 12VDC allowing easy system planning while a weatherproof IP66 and vandal proof, high impact IK10 ratings mean this unit is perfect for indoor or harsh outdoor security installations.
