Hanwha (FKA Samsung) Techwin XNP-6320RH 32x 2MP IR PTZ IP Camera

Write a Review
Calculated at Checkout
  • Hanwha (FKA Samsung) XNP-6320RH 1080p 32x IR PTZ IP Camera

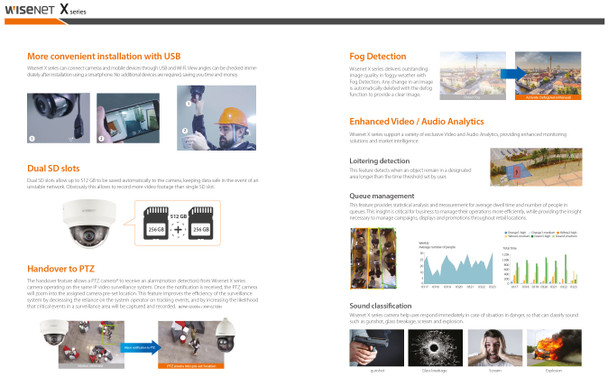

  • Hanwha (FKA Samsung) XNP-6320RH PTZ X-series features
  • Hanwha (FKA Samsung) XNP-6320RH 1080p PTZ X-series features
  • Hanwha (FKA Samsung) XNP-6320RH PTZ specifications page 1
  • Hanwha (FKA Samsung) XNP-6320RH PTZ specifications page 2
  • Hanwha (FKA Samsung) XNP-6320RH PTZ optional accessories

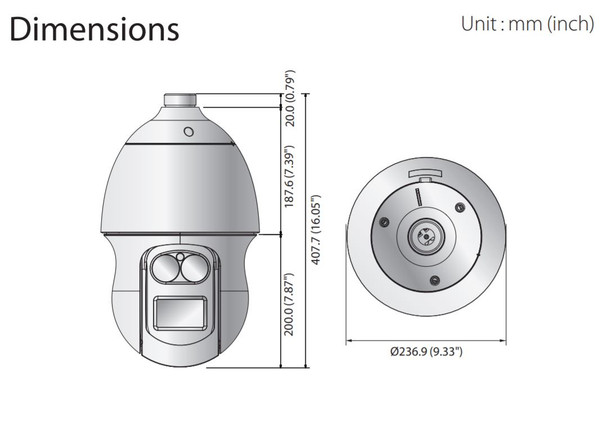

  • Hanwha (FKA Samsung) XNP-6320RH PTZ dimensions


Hanwha (FKA Samsung) Techwin XNP-6320RH 32x IR PTZ IP Camera is a powerful IP surveillance solution for stand-alone operation to large scale security system installations. The units grant exceptional quality and its excellent specifications have proven it a top choice for modern IP PTZ Cameras. The device boasts excellent optical zoom, powerful night vision to over 200 meters as well as cutting edge compressions like H.265 to other unique aspects such as on-board intelligence and impressive edge storage capacity. Built to robust weatherproof design standards and likewise including vandal proof rugged construction this PTZ unit is ready to meet the most demanding requirements. All around this Pan-tilt-Zoom IR PTZ Security Camera is well equipped, the device features diverse integration abilities, be it legacy RS-485 support to other aspects like modern ONVIF compliance for easy 3rd party security system support.

Hanwha XNP-6320RH Main Features:

  • NOTICE: A2Z is an Authorized Provider of Hanwha Techwin Security Products! Most Online Retailers are not! Don't Risk your Warranty & Support!
  • 2 Megapixel (1920 x 1080) 1080p HD resolution
  • H.265, H.264, MJPEG codec support
  • 4.44 ~ 142.6mm (Optical 32x) lens (XNP-6320RH)
  • IR Night Vision Effective Distance up to: 200m (656ft)
  • Day & Night (ICR), Extreme WDR (150dB), DIS (Built-in gyro sensor)
  • Intelligent Video / Audio Analytics, Shock detection, Sound Classification
  • Azimuth display (Cardinal & intermediate directions)
  • Multiple streaming, WiseStream II support
  • Full Function Web Browser Interface
  • Free Mobile Apps and optional PC CMS Software such as WAVE
  • Micro SD / SDHC / SDXC memory 2 slots (Up to 512 GB)
  • IP66, IK10, HPoE Injector included, 24VAC


Superior IP Video and Audio Surveillance:
The Hanwha X Series XNP-6320RH IR PTZ Camera is a well-equipped to produce exceptional quality 1080p HD video first off thanks to its large format 2 Megapixel Image Sensor. The additions of technologies such as SSNR V (Samsung Super Noise Reduction) and SSDR (Samsung Super Dynamic Range) paired with True Day/Night operation, True WDR (wide Dynamic range) rated to an awesome 150dB plus factors like Defog and EIS with gyro sensor support simply assure video is at its most optimal state in all sorts of challenging conditions. The units Optical Zoom of 37x grants close inspection of long range objects or targets while its IR Illumination assist for absolute night vision up to just over 650ft. Add in efficient triple video streams, including H.265 and including full 1080P HD video at up to 60fps for twice real-time speeds means even when faced with fast moving subjects this unit can capture the details. The Pan/Tilt/Zoom security camera audio surveillance abilities are equally impressive supporting microphone input and speaker outputs the unit can also power plug-in style mics like those used on your PC. Furthermore, a vast selection of the audio codecs such as the highly desired AAC format are available while even more audio related technologies are mentioned below.

X-Series Intelligence and Adaptability:
Hanwha Techwin XNP-6320RH 32x IR PTZ IP Cameras also feature added intelligence including video and audio analytics of many sorts. Functions including Directional / Virtual Line detection, Fog detection, Face detection, Motion detection, Appear / Disappear, Enter/Exit, Loitering, Tampering, Audio detection, Sound classification and Shock detection. Combined with a fully functional web interface these numerous event triggers can enable effective notifications and automated actions with reduced false alarms compared to traditional motion detection while a superior local storage capacity via dual Micro SD cards for up to 512GB capacity total allows truly stand-alone operation. Third party system integration is widely supported not simply via ONVIF but likewise via Hanwha's SDK direct integration thanks to Hanwha's recognition among leading NVR security manufacturers. Meanwhile other streaming methods like RTSP enable our customers like those in broadcast applications to benefit for none security and surveillance objectives. From Software to physical characteristics this PTZ IP Camera delivers superb results with rich feature sets and functions. Innovative attributes like its sound classification to face detection make it uniquely situated for creative installations while a wide assortment of optional mounting accessories and flexible power input including single cable install with HPoE (a new high powered PoE standard) promise absolute versatility.

Last Updated: March 1st, 2020
