Hanwha (FKA Samsung) Techwin XNP-6120H Outdoor 12x 2MP Mini PTZ IP Camera

Write a Review
Calculated at Checkout
  • Hanwha XNP-6120H Outdoor Vandal Dome 12x 2MP Mini PTZ IP Camera
  • Hanwha XNP-6120H Vandal Dome 1080p 12x Mini IP PTZ Camera

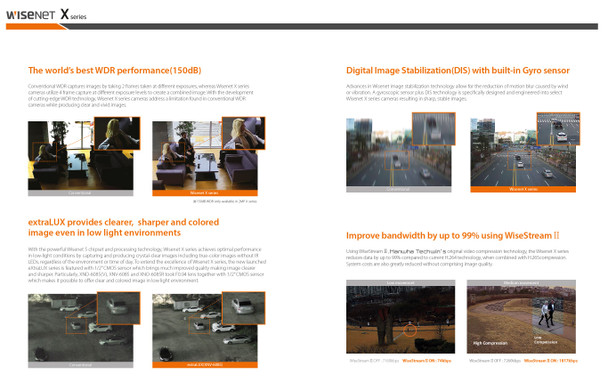

  • Hanwha XNP-6120H PTZ X-series Features

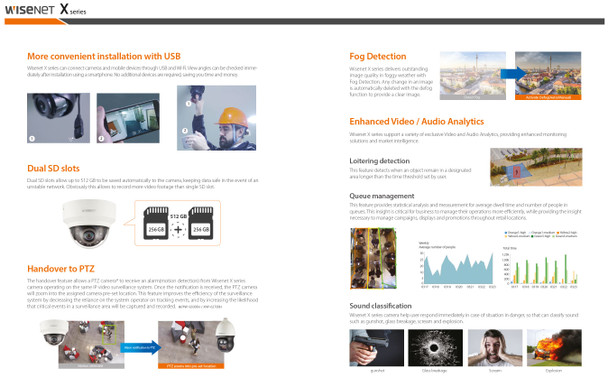

  • Hanwha XNP-6120H PTZ X-series Features 2
  • Hanwha XNP-6120H PTZ optional accessories

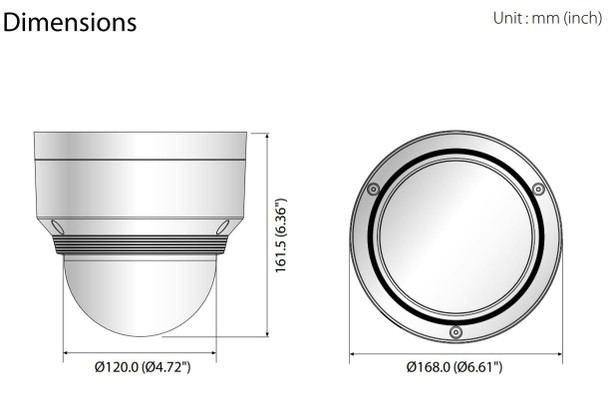

  • Hanwha XNP-6120H PTZ dimensions

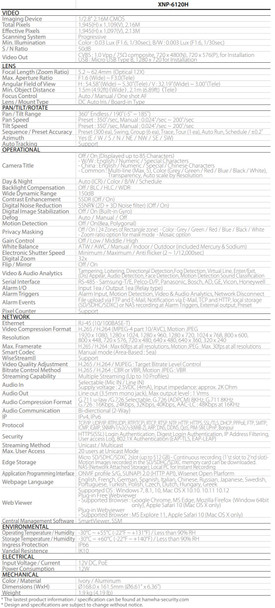

  • Hanwha XNP-6120H PTZ specifications


Hanwha (FKA Samsung) Techwin XNP-6120H Outdoor 12x 2MP Mini PTZ IP Camera is a unique compact Pan-tilt-Zoom camera loaded with latest technology and superior performance. The device boasts superior 1080P HD video in frame rates up to twice that of real-time standards and features exceptional low light performance along with Wisenet Image Enhancements like market leading Wide Dynamic Range for optimal clarity in the most challenging scenarios. The unit grants processional, precise Pan-Tilt-Zoom and its 12x optical zoom lens give satisfying reach for such a low-profile unit. Despite its size this X-Series Miniature PTZ doesn't lack at all when it comes to cutting-edge technology and you will find everything from rich user interfaces to abilities like H.265 compression plus added video analytics. Even more the device seems to boast every possible demand and offers unique high capacity on-board storage up to 512GB while everything else from Bi-directional ("Two-Way") audio support or legacy CCTV video output as well as PTZ controls and even PoE power support and an array of mounting accessories are all available to you. Perfect for stand-alone operation or as part of larger security camera system the XNP-6120H is a top choice even for third party security systems.

Main Features:

  • NOTICE: A2Z is an Authorized Provider of Hanwha Techwin Security Products! Most Online Retailers are not! Don't Risk your Warranty & Support!
  • Max. 2 Megapixel (1920 x 1080) high definition resolution
  • 16: 9 Full HD 1080p resolution support
  • 5.2 ~ 62.4mm (12x) optical zoom, 32x digital zoom
  • H.265, H.264, MJPEG codecs & supports multiple video streams
  • Day Night (ICR), WDR (150dB), Intelligent video analytics
  • SD / SDHC / SDXC memory slot (Max.512GB)
  • Weatherproof IP66, Vandal Proof IK10 High Impact, Bi-directional audio support
  • Surface Mount - Optional Accessories including Wall Mount Brackets to In-ceiling Adapters

Superb Video and Audio Surveillance:
Video performance is delivered without question with the XNP-6120H Mini PTZ. Hanwha Wisenet Imaging technology combines with a high performance, low light 2 Megapixel Image Sensor to provide maximum image clarity in all types of lighting conditions. Perks like 1080P HD at up to 60fps assure even fast-moving targets can be captured in detail while added advances such a low light color video in as little as 0.03 lux or 0.003 lux in monochrome promise vivid imaging. Low light video performance is further backed by functions like SSNR 5 (Samsung Super Noise Reduction) as well high contrast scenes conquered thanks to attributes such as SSDR (Samsung Super Dynamic Range) and an enhanced WDR (Wide Dynamic Range) which samples more combined images than common WDR cameras and is rated to an amazing 150dB. Though its 12x optical zoom lens may be comparable to the few other Mini PTZs on the market in respects to range, factors like Hanwha's DIS (Digital Image Stabilization) with added gyro-sensor promise superbly stable imaging where in conditions of extended zoom while under vibrations this unit will prevail where others fail. Beyond the image quality the unit is very capable allowing multiples of individual video streams with compression selections like H.265 or H.264 plus has add-ons such as WiseStream II for the ultimate in bandwidth efficiency. Likewise, a wealth of audio capabilities is incorporated including not just external microphone and speaker support but bi-directional ("two-way") audio as well as support for line in audio or certain plug-in style mics. The audio codec methods are also of those most demanded from ultra-efficient G-types like G.711 or G.726 to the highly desired, high quality ACC-LC format.

Smart Adaptability with Added Intelligence:
Hanwha XNP-6120H Outdoor 12x 2MP Mini PTZ IP Cameras feature the X-series line of functionality including advanced video and audio analytics. These intelligent additions enable this Mini PTZ camera to provide all sorts of sophisticated yet automated operations including everything from intrusion type detection to que management with video analysis based around virtual line or directional detection and more. Similarly, even more video and audio analytic functions are present most notably those like Face Detection and Sound detection with sound classifications. These and other unmentioned detection methods enable truly smart systems while when considered along with other aspects like its aforementioned high capacity local storage and rich, full function web interface this Mini PTZ is well enabled to perform very effectively as a stand-alone security solution. There are of course FREE mobile apps to other unique options like the Hanwha WAVE software which can function on windows, MAC (apple) or even Linux operating systems and of course the device is widely supported by third party recording and video management solution in the industry both via direction integration or via its ONVIF compliance. Even dozens of IT protocols are all on-board for you to choose from, so in short, there isn't much this little PTZ can't do.

Maximum Versatility:
If you've read this far it’s likely already pretty clear the Hanwha XNP-6120H Outdoor 12x 1080P Mini Network PTZ Security Camera is well-equipped for nearly any task. Installers will be pleased by a highly adaptable product that can provide all sorts of specialized demands including composite video output to RS-485 Pan-Tilt-Zoom controls for legacy CCTV system needs. There is beside the audio input and output support also connections for Alarm I/O and versatile install can be achieved thanks to PoE for single network cable install or via adding a 12V DC power source. The PTZ is surface mountable out of the box, but there is further a huge selection of mounting accessories offered which allow for basically every possible install style needed be it parapet mount, pole or corner mount, pendant wall mount and more.

Last Updated: March 5th, 2020
