Description
The Hanwha WRN-1632S is a high-capacity 16-channel NVR built for mid-sized surveillance systems. With support for up to 16 IP cameras and built-in PoE across all ports, it offers an easy and scalable plug-and-play solution. The included 8TB HDD and total 4-bay support up to 10TB each, making it ideal for extended video storage needs.
Optimized for AI applications, the WRN-1632S enables attribute-based video searches when paired with Hanwha AI cameras, accelerating forensic investigation. Its HDMI output supports 4K UHD resolution, and the system supports smart analytics like motion, defocus, and tampering.
This model integrates with WAVE, SSM, and WebViewer, and offers remote management via QR-based P2P setup. Reliable and secure, it includes support for TLS encryption, signed firmware, and N+1 failover configurations. Experience Premium Grade VMS Surviellance in a ready to go, purpose built device.
✨ Key Features:
- 16CH IP camera input, up to 8MP per channel
- Pre-installed 4TB HDD, up to 10TB capacity
- Built-in PoE switch with 16 ports
- HDMI output supports up to 4K UHD
- AI search support for object attribute-based filtering
- H.265, H.264, MJPEG video encoding
- Smart video analytics and search modes

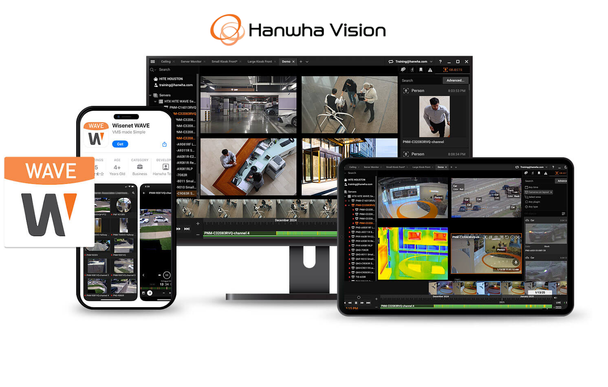

- Integration with Wisenet Viewer, SSM, and mobile
- TLS security, 802.1x authentication, TPM support
- N+1 failover and ARB backup ready
✅ Specifications Summary:
✨ Video & Display:
- Input: 16CH IP (up to 8MP)
- Display: HDMI (3840x2160 max), VGA (1920x1080)
- Layout: 1/2V/2H/3V/4/6/8/9/13/16/Sequence
✨ Recording & Playback:
- Max Recording Bandwidth: 80Mbps
- Playback: Max 16CH, 32Mbps bandwidth
- Modes: Normal, Event, Schedule, Bookmark
- Search: Calendar, Event, Text, Smart, Bookmark
⚖️ Storage:
- Pre-installed: 4TB HDD
- Max: 10TB per SATA drive (4 SATA bays)
- Backup: Recorder/SEC/AVI/JPG, AVI/PNG (network)
↔️ Network & Protocols:
- Protocols: TCP/IP, HTTPS, RTSP, SNMP, ONVIF, SUNAPI
- Ports: 16x LAN (PoE), 1x WAN (1Gbps)
- PoE Budget: 130W
⚡ Audio:
- Input: 16CH (network)
- Codecs: G.711, G.726, AAC
- Output: 1 RCA
⚠️ System / Security:
- OS: Embedded Linux
- Logs: 100,000
- Users: Max 4
- Security: TLS, 802.1x, TPM, Signed Firmware
✨ Interface & Ports:
- USB: 2x USB 2.0
- HDMI: 1, VGA: 1
- Alarm I/O: 4 In / 2 Out
⚡ Power, Environmental, Mechanical:
- Power: 100–240V AC, 50/60Hz
- Max Power: 188.2W
- Dimensions: 370 x 44 x 320 mm
- Weight: 2.88kg
