Description
The PRN-1600B2 is a 16-channel network video recorder developed by Hanwha Vision to deliver powerful AI-enabled surveillance performance. With support for up to 32MP (8K) security camera stream input and AI-based metadata searches including face, license plate, and object classification, this NVR enhances intelligent video monitoring for businesses and institutions.
It supports up to 250Mbps recording bandwidth and includes dual HDMI outputs for 4K and 1080p simultaneous display. The unit supports up to 80TB of internal storage across 8 SATA bays with RAID-5/6 configuration for data integrity. TLS encryption, TPM secure hardware, and signed firmware contribute to system security. Compatible with Wisenet Viewer, SSM, and mobile applications.
✨ Key Features:
- 16CH IP camera input, up to 32MP
- Up to 250Mbps recording throughput
- AI search (person, vehicle, face, license plate)
- RAID-5/6 support with 8 SATA bays (80TB max)
- Dual HDMI output (4K & 1080p)
- Fisheye dewarping & multi-channel search
- 2-way audio with alarm I/O
- Embedded Linux OS with failover support
- NDAA compliant, TPM & secure boot
- Supports Wisenet Viewer, SSM, and WebViewer
✅ Specifications Summary:
✨ Video & Display:
- HDMI Output: HDMI1 (3840x2160@30Hz), HDMI2 (1920x1080@60Hz)
- Display Layout: Dynamic/multi-monitor, virtual channel support
- Video Input: Up to 16CH, max resolution 32MP
✨ Recording & Playback:
- Compression: H.265, H.264, MJPEG
- Recording Modes: Manual, schedule, event
- Max Recording Bandwidth: 250Mbps
- Playback Bandwidth: 64CH simultaneous, 200Mbps
⚖️ Storage:
- Internal Storage: 8x SATA (up to 10TB each, 80TB max)
- RAID Support: RAID-5/6
- External Storage: iSCSI supported
- HDD Mode: Hot-swappable
↔️ Network & Protocols:
- Interfaces: 3x RJ-45 Gigabit Ethernet
- Protocols: IPv4, IPv6, TCP/IP, SNMP, HTTP/HTTPS, RTSP
- ONVIF Profile S, SUNAPI supported
⚡ Audio:
- Input/Output: 16CH input, 1CH 2-way audio
- Compression: G.711, G.726, AAC
⚠️ System / Security:
- OS: Embedded Linux
- Security: 802.1x, TPM, signed firmware, encrypted data, failover N+1
✨ Interface & Ports:
- USB Ports: 2x USB 2.0 (front), 2x USB 3.0 (rear)
- Alarm I/O: 8 inputs, 4 outputs
- Serial Interface: RS-232C
⚡ Power, Environmental, Mechanical:
- Power: 100–240V AC, Max 205W
- Operating Temp: 0°C–40°C (32°F–104°F)
- Dimensions: 438 x 86 x 434.9 mm
- Weight: Approx. 9.1kg without HDD
⚙️ Compatible Accessories / Software:

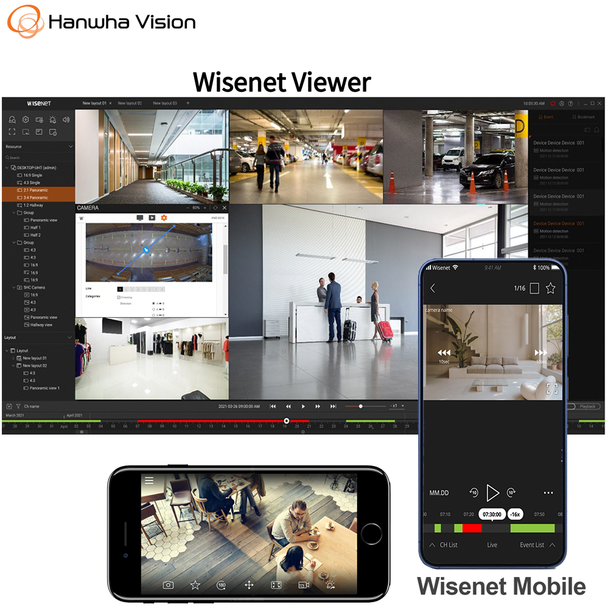

- Wisenet Viewer, SSM, SmartViewer, WebViewer, Wisenet Mobile
- SPC-2000 PTZ Controller
