Description
The ARN-1610S from Hanwha Vision is a professional-grade 16CH NVR designed for mid-size security applications. It offers high-resolution support up to 8MP per channel, dual display outputs (HDMI and VGA), and a massive 130W PoE budget for direct IP camera power across 16 ports.
This NVR supports advanced video analytics and compression formats including H.265 and MJPEG, ensuring bandwidth efficiency while delivering superior image quality. With up to 80Mbps recording and 2 internal HDD bays supporting up to 12TB total capacity, the ARN-1610S provides robust storage for mission-critical applications.

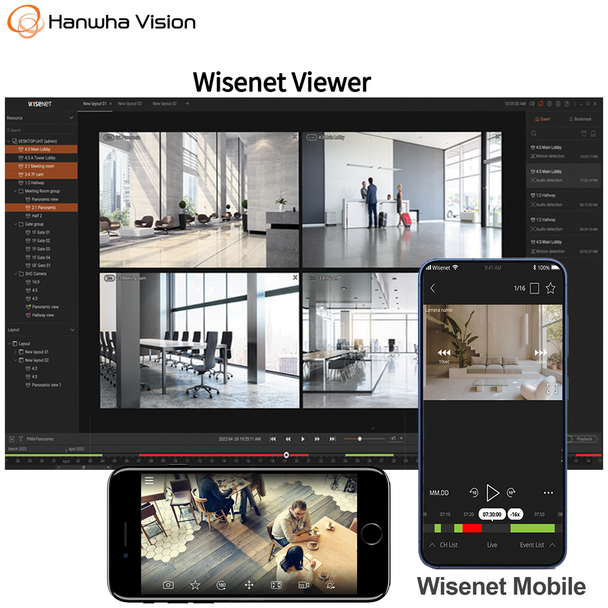

The system integrates seamlessly with Hanwha’s WAVE, SSM, and Wisenet Viewer platforms and offers P2P setup via QR code for easy remote access. Users benefit from ARB support, failover redundancy, event-based search/playback, and compatibility with multi-profile mobile streaming.
✨ Key Features:
- Supports 16 IP channels at up to 8MP resolution
- 80Mbps recording bandwidth
- Dual video output: HDMI (4K) and VGA (1080p)
- Integrated 16-port PoE switch with 130W budget
- H.265, H.264, MJPEG encoding support
- Dual HDD bays supporting up to 12TB
- Smart search, event triggers, dewarping and hallway view
- TLS encryption, TPM, and signed firmware support
- Failover N+1 and ARB redundancy
- Seamless integration with Wisenet, SSM, WebViewer, and mobile
✅ Specifications Summary:
✨ Video & Display:
- Network Input: 16CH, 8MP ~ CIF
- Local Display: HDMI (3840x2160), VGA (1920x1080)
- Display Modes: 1/2V/2H/3V/4/6/8/9/13/16/Sequence
✨ Recording & Playback:
- Compression: H.265, H.264, MJPEG
- Max Bandwidth: 80Mbps
- Recording Modes: Normal, Event, Schedule, Bookmark
- Playback Bandwidth: 32Mbps
- Simultaneous Playback: 16CH (4CH local/remote per user)
⚖️ Storage:
- HDD: 2x SATA (Max 12TB)
- Backup: BU/Exe, JPG/AVI
- Multi-channel Play: Up to 4CH
↔️ Network:
- Protocols: IPv4/6, TCP/IP, HTTPS, ONVIF (Profile-S), SUNAPI
- PoE Ports: 16x RJ-45 (LAN 10/100), 1x RJ-45 WAN (1Gbps)
- Bandwidth: 80Mbps
⚡ Audio:
- Input: 16CH (network)
- Codecs: G.711, G.726, AAC
- 2-Way Audio: Supported
⚠️ System / Security:
- OS: Embedded Linux
- Max Users: 4
- Logs: 100,000 (System/Event)
- Security: Encryption, 802.1x, Signed firmware
✨ Interface & Ports:
- USB: 2x USB 2.0
- HDMI: 1EA, VGA: 1EA
- Indicators: Power, Record, Network
⚡ Power, Environmental, Mechanical:
- Input: 100–240V AC ±10%, 50/60Hz
- Consumption: Max 188.2W
- PoE Budget: 130W
- Temperature: 0–40°C
- Dimensions: 370 x 44 x 320 mm
- Weight: 2.88kg
