Geovision

Geovision GV-BX220D-3 1080P HD IP Security Camera

Write a Review
SKU:
GV-BX220D-3
Shipping:
Calculated at Checkout
  • Geovision GV-BX220D Series 1080P HD IP Security Camera

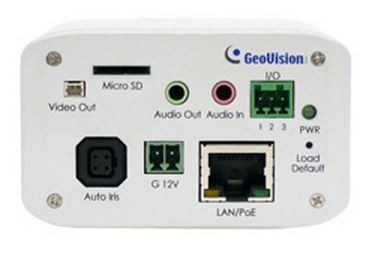

  • Geovision GV-BX220D  back of camera

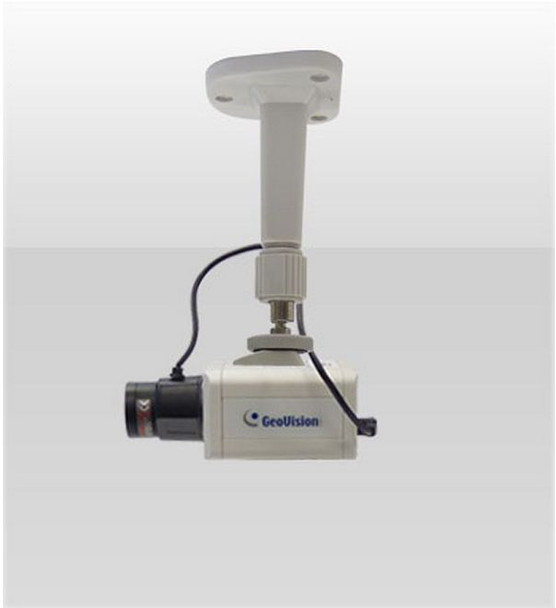

  • Geovision GV-BX220D ceiling mounting

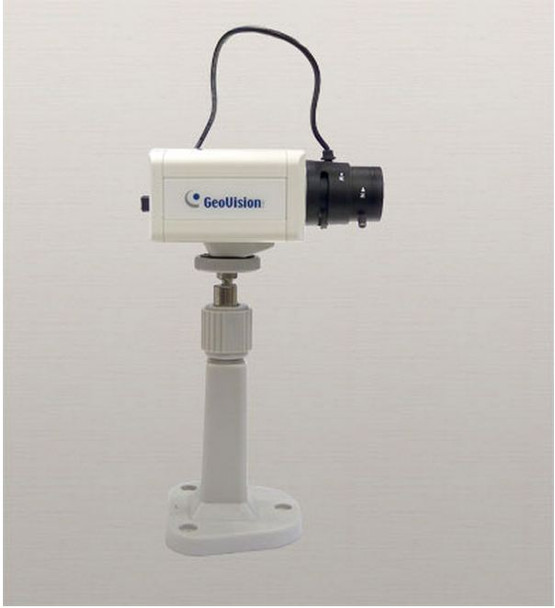

  • Geovision GV-BX220D desktop mounting

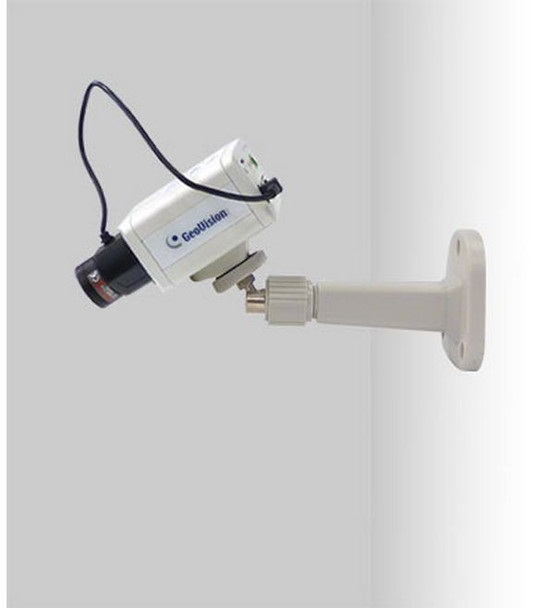

  • Geovision GV-BX220D Wall mounting
  • Geovision GV-BX220D dimensions
$405.00

Description

Geovision GV-BX220D-3 HD IP Security Camera is a high performance network camera for superior IP Surveillance video. The Geovision GV-BX220D-3 includes a 2 Megapixel progressive scan sensor providing full 1080p HD (1920 x 1080 pixels) in Real-time 30 frames per second. The camera also provides dual streams of H.264 and MJPEG video codecs with individually configurable streams. The HD IP Camera also supports WDR and True Day/Night function with automatic IR cut filter. The Geovision GV-BX220D series 1080P HD IP Security Cameras are available with a 2.8-12mm Varifocal Lens as the GV-BX220D-3 or with a 2.8-6mm Varifocal Lens as the Geovision GV-BX220D-2.
The Geovision GV-BX220D-3 HD Megapixel IP Camera is a powerful camera that not only delivers stunning 1080P HD but also offers a variety of professional functions including advanced web interface and flexible install features. The unit provides Two Way Audio with external audio connections and has a built in Microphone. The HD IP Camera from Geovision also has on board event triggers like motion detection with recording to local SD memory card slot. The Geovision camera further supports composite video output, Digital I/O and ONVIF compliance. The camera also allows both 12VDC and PoE (Power Over Ethernet) options.  The Geovision GV-BX220D HD IP Camera is a high quality solution for superior IP camera systems and surveillance.

Geovision GV-BX220D-3 Main Features:

  • 2 megapixel progressive scan CMOS
  • Dual streams from H.264 and MJPEG
  • Up to 30 fps at 1920 x 1080
  • Built-in / external microphone
  • 2-way audio
  • One sensor input and alarm output
  • TV-out support
  • Memory Card Slot
  • Wide Dynamic Range (WDR)
  • Defog
  • Motion detection
  • Tampering alarm
  • Privacy mask
  • IP address filtering
  • DC 12V / PoE
  • Removable IR-cut filter for Day/Night function
  • Varifocal megapixel lens
  • Supports iPhone, iPad, Android & 3GPP
  • 31 languages on Web interface
  • ONVIF conformant


Geovision GV-BX220D-3 Specifications:


Camera
Image Sensor 1/3” progressive scan CMOS
Picture Elements 1280 (H) x 720 (V)
Color 0.2 Lux at F/1.4
Minimum Illumination B/W 0.08 Lux at F/1.4
IR ON 0 Lux
Shutter Speed Automatic
White Balance Automatic, Manual(2800K ~ 8500K)
Gain Control Automatic
S/ 50 dB
WDR Pro Yes(with WDR sensor)
Lens
Megapixel Yes
Day/Night Yes(with removable IR-cut filter)
Lens Type Varifocal
Focal Length 2.8 ~ 12mm
Maximum Aperture F/1.4
Mount CS Mount
Image Format 1/3”
Focus Manual(w /lock)
Operation Zoom Manual(w /lock)
Iris Fixed
Max. Torque (Focus/ Zoom Screws) 0.049N.m
Operation
Video Compression H.264, MJPEG
Video Stream DualstreamsfromH.264 and MJPEG
Frame Rate
30 fps at 1280 x 720
* The frame rate and the performance may vary depending on the number of connections and data
bitrates(different scenes).
Image Setting Brightness, Contrast, Sharpness, Gamma, White Balance, Flicker-less, Image Orientation, Shutter Speed,
Defog
Audio Compression G.711, AAC (16 kHz/ 16 bit) * AAC is only supported byGV-SystemV8.5 or later
Two-way Audio Yes
Sensor Input 1 Input(Dry Contact)
Alarm Output 1DigitalOutput(200mA 5VDC)
Video Resolution
Main Stream 16:9 1280 x 720, 640 x 360, 448 x 252
Sub Stream 16:9 640 x 360, 448 x 252
Network
Interface 10/100 Ethernet
Ethernet Protocol HTTP,HTTPS, TCP,UDP, SMTP, FTP,DHCP,NTP,UPnP,DynDNS, 3GPP/ISMA, RTSP, PSIA, SNMP,QoS
(DSCP),ONVIF
Mechanical
Power 2-pin terminal block, PoE
Ethernet RJ-45
Audio 1 In (Using the built-in microphone or externally connecting a microphone)
1Out(Stereo phone jack, 3.5mm/ 0.14 in)
Digital I/O 3-pin terminal block, pitch 2.5mm/ 0.1 in
Auto Iris Not functional
Local Storage Micro SD/SDHC/SDXC memory card slot(for Class 6 card or above)
Connectors
TV-Out BNC connector(640 x 480 resolution)
LED Indicator 2 LEDs: Power, Status
General
Environment Temperature 0 °C ~ 50 °C / 32 °F ~ 122 °F
Humidity 10% to 90% (no condensation)
Power Source 12VDC / PoE
Max. Power Consumption 7 W
Dimensions(L X W XH) 75.5 x 75 x 54mm/ 3.05 x 2.95 x 2.13 in (without lens)
Weight 321 g / 0.71 lb.
Regulatory CE, FCC, C-Tick, RoHS compliant
Power over Ethernet
PoE Standard IEEE 802.3af Power over Ethernet/ PSE
PoE Power Supply Type End-Span
PoE Power Output Per Port 48VDC, 350mA. Max. 15.4watts
Web Interface
Installation Management Web-based configuration
Maintenance Firmware upgrade through Web Browser or Utility
Access from Web Browser
Camera live view, video recording, change video quality, bandwidth control, image snapshot, digital I/O
control, audio, Picture in Picture, Picture and Picture, Privacy Mask, Visual Automation, Tampering Alarm,
Text Overlay
Language
Arabic / Bulgarian / Czech /Danish /Dutch / English / Finnish / French /German /Greek /Hebrew / Hungarian /Indonesian /Italian /Japanese / Lithuanian /Norwegian / Persian / Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian / Slovenian / Spanish / Swedish / Thai/ Traditional Chinese / Turkish
Applications
Network Storage GV-NVR,GV-System,GV-Backup Center,GV-Recording Server
SmartDevice Access GV-Eye for Android smartphone,tablet, iPhone, and iPod Touch
GV-EyeHDforiPad
Live Viewing IE,mobile phone
CMS Serversupport GV-Control Center,GV-Center V2,GV-VSM
