Everfocus ECOR960-16X1 16ch Linux DVR 960H 120fps

  • Everfocus ECOR960-16X1 16ch Linux DVR Front Right

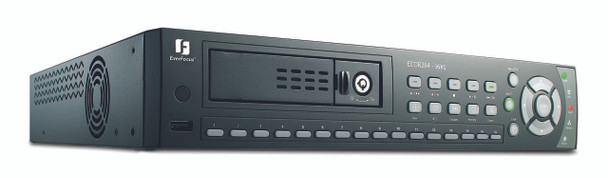

  • Everfocus ECOR960-16X1 16 channel DVR Front Left
  • Everfocus ECOR960-16X1 16ch DVR Front Panel

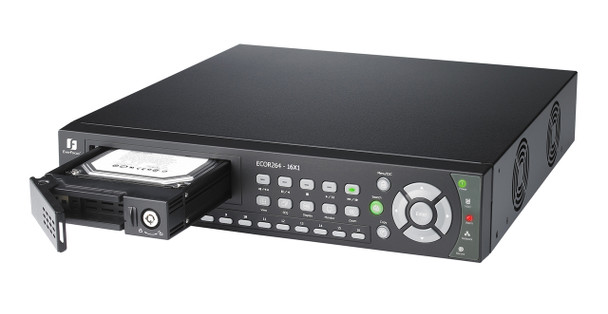

  • Everfocus ECOR960-16X1 16ch DVR with removable HDD
  • Everfocus ECOR960-16X1 DVR  Specifications

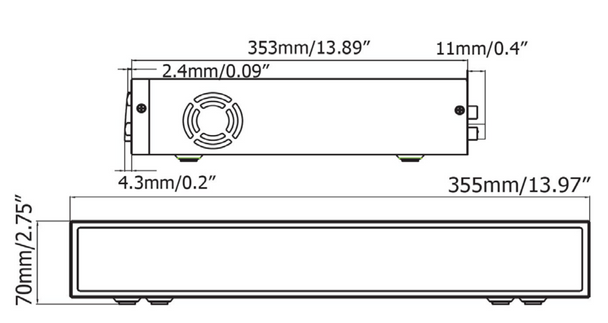

  • Everfocus ECOR960-16X1 DVR size
No Longer Available - Contact Us

Product Description

Everfocus ECOR960-16X1 960H 16 channel DVR system is a top of the line solution for price versus performance ratio. The new Everfocus Digital Video Recorder enables the latest WD1 (960H 960x480 pixels) video recording at 120fps or CIF at real-time 480fps on all 16 channels. Utilizing the H.264 compression this DVR system offers dual streaming for optimal bandwidth and video storage management. The Everfocus ECOR960-16X1 16ch DVR is also packed with all the professional features desired by modern CCTV Security Camera Systems and offers the maximum feature set, reliability and performance for an affordable cost.

Everfocus ECOR960-16X1 960H DVR is fully equipped for advanced video monitoring in both local and remote viewing scenarios. Multiple options for DVR control ranging from the front panel controls to USB mouse or DVR Keyboard / PTZ Joystick Controllers are optional. Users will also enjoy High Definition Local Display and looping BNC outputs can support solutions requiring matrix systems and video redistribution. Supporting easy back-up options the unit includes USB ports, eSATA and a built-in DVD-RW. Internal storage supports up to two SATA drives and a total of 12TB capacity. The usual RS-485 PTZ Camera, RS-232 Communications port, I/O Alarm interface and Two Way Audio is also all incorporated.

Everfocus DVR solutions like the ECOR960-16X1 provide superb remote video surveillance systems. The full range of video monitoring options from remote client, mobile viewing to CMS is all provided. In addition, Everfocus provides a Free DDNS service and the unit includes Gigabit Network while also supporting a wide range of IT standard network protocols. The solution is intelligently designed to offer efficient use and operations including easy setup and configurations with Express menus. The Everfocus ECOR960-16X1 16 channel DVR is the ideal choice for next generation 700TVL CCTV Security Camera Systems.

Everfocus ECOR960-16X1 Main Features:

  • 16 Channel 960H Linux DVR
  • 960H or WD1 (960x480) at 120fps or Real-time recording at CIF
  • Two Way Audio Support: 8ch Input, 1ch Outputs
  • H.264 Compression with dual streaming for efficient HDD and network use
  • Local Video Display via RCA/BNC, VGA or HDMI HD 1080P connection
  • Supports Digital Zoom on Live Video and Playback
  • Easy Graphical Interface supports DVR configuration and operation on Front Panel, Mouse and EBK500 Keyboard
  • Pentaplex Operation (Simultaneous live, record, playback, export and remote view)
  • Eleven (11) User Security Profiles for individualized access and restriction to DVR features
  • Independent CCTV Camera settings including frame rates, resolutions, record modes, etc.
  • FREE DDNS Service Hosted by Everfocus for EASY Networking Options
  • Gigabit Ethernet LAN connection and multi-protocol IT network standard support
  • RS-485 PTZ Camera Control, I/O Communications and eSATA connection
  • Internal Hard Drives: Two (2) SATA HDD Drive slots up to 12TB
  • Built-in DVD burner
  • 2 USB 2.0 ports (Export and USB Mouse)
  • Includes Watermark
  • Rack mountable (mounts included)
  • 19" Rack mountable-rack (mounts included)


Ordering Information
ECOR960-16X1/1T: 16 Ch. 960h DVR, DVD, 1TB
ECOR960-16X1/2T: 16 Ch. 960h DVR, DVD, 2TB
ECOR960-16X1/4T: 16 Ch. 960h DVR, DVD, 4TB
ECOR960-16X1/6T: 16 Ch. 960h DVR, DVD, 6TB
