Dahua OEM Linux NVR NVR4416-16P 16 channel 16 PoE

  • Dahua OEM Linux NVR NVR4416-16P 16 channel 16 PoE
  • Image 2

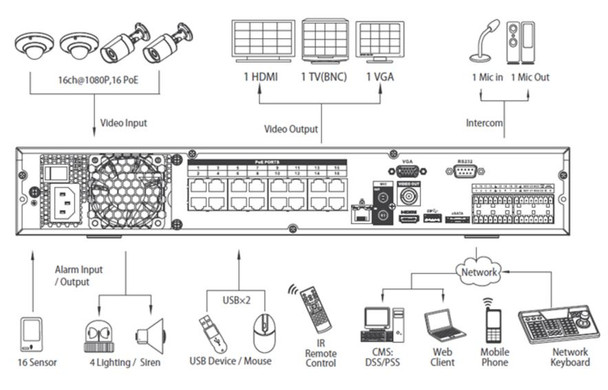

  • Dahua OEM NVR NVR4416-16P NVR rear diagram
Calculated at checkout

Product Description

Dahua OEM NVR4416-16P 16ch 16 PoE Network Video Recorder is a high performing, high capacity NVR for pro IP Surveillance Systems. The device is loaded with all the benefits of a modern Linux NVR system and delivers support for 5 megapixel video recording on up to 16 channels or in other words sixteen (16) IP Cameras. This allows flexible individual stream management and codec methods like H.264 and MJPEG. This Dahua NVR model is fully packed with all the features of less models, plus an integrated 16 port PoE Switch to added interfaces like eSATA for superior back-up or storage management. Even local display options are improved with a simultaneous output for HDMI, VGA and BNC (Analog CCTV TV) monitor support. Excellent performance, rich local and remote viewing options plus countless pro perks make this NVR not only a best in class, but an industry best you can surely rely on for your IP Camera System.

Dahua OEM NVR4416-16P Features:

  • Linux Embedded 16ch Network Video Recorder
  • 16 channel IP camera input Dahua or ONVIF
  • 16 Port Built-in PoE Switch (802.3sf and 802.3at)
  • H.264 or MJPEG dual codec and dual streaming
  • 200 Mbps Throughput with Up to 5 Megapixel viewing/Playback
  • HDMI, VGA and TV (BNC) simultaneous video display
  • 16 channel simultaneous real-time playback, GRID interface, Date or Time line Search to more
  • Support 3rd Party IP Cameras (by model): Arecont, AXIS, Bosch, Panasonic, Pelco, Samsung, Sony, Vivotek and etc.
  • IT functions like IPv4/IPv6, UPNP, RTSP, DNS, IP Filter, DDNS, FTP, and Alarm Server
  • ONVIF Compliance for easy 3rd party integration
  • Alarm I/O: 16 inputs 4 Relay Outputs
  • RS-232 Keyboard Joystick Controller interface
  • RS-485 PTZ Control interface
  • On-board Two Way Audio Talk 1ch Input and 1ch Output
  • 3D intelligent positioning with Dahua PTZ camera
  • Support 4 SATA HDDs up to 16TB, 1 eSATA port, 2 USB (1 USB3.0)

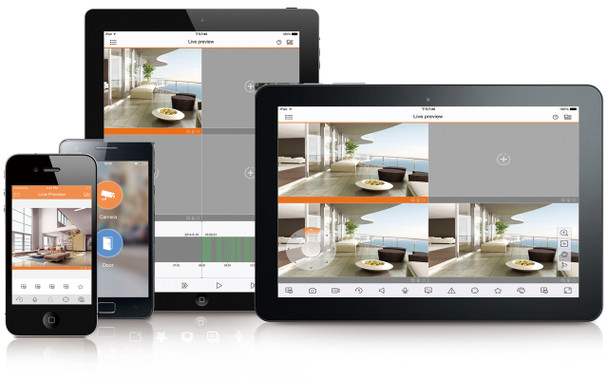

  • Remote Viewing and Management: Built-in Web Browser, PC or MAC capable CMS Software (SmartPSS) and NVR Software (DSS) Mobile Viewing Applications DMSS for Windows Smart Phone, Android, iPad and iPhone
  • Power Supply Included: AC 100V~240V, 50/60HZ
  • Power Consumption NVR: 40W (without HDD)
  • PoE: Max 25.5W for single port
  • Working Environment -10°C ~+55°C / 10%~90%RH / 86~106kpa
  • Dimensions: (W×D×H) 1.5U, 440mm × 413mm × 75mm
  • Weight 13.2lbs or 6KG (without HDD)

NOTICE: OEM products are original to referenced model except produced without brand labels for re-branding.


Pro IP Security Camera System operations:
Introducing all of the common expectations for a modern security video recorder, the Dahua OEM NVR4416-16P 16ch Linux NVR takes things even further. High Definition Megapixel Reordering, Common Compression Codec support like H.264 to recording schedule, various detection methods, Event Action and Notifications are all richly supplied. Fully equipped as well as Flexible Live Viewing to Search operations with Time-line navigation of recordings or synchronized playback are but just a few of the many perks you will appreciate. MAC and PC compatible CMS (SmartPSS) or NVR (DSS) remote surveillance software as well as Dahua Mobile Applications all provide unified control of this NVR. Third Party IP Camera Support is also provided for multiple models from the top IP Camera brands while ONVIF integration and other IT standards enable custom integration with ease.

Fully Equipped, Flexible Installation:
The Dahua OEM NVR4416-16P 16ch Network Video Recorder is a fully professional and well outfitted Linux NVR system. Its on-board storage capacity can support up to four internal hard drives easily allowing large local storage such as 24TB with four 6TB drives. The unit offers other specific benefits regarding storage management including eSATA and two USB 3.0 ports. Hardware advantages like Two Way audio with external microphone and speaker support directly from the NVR to sixteen (16) Alarm inputs or 4 Relay outputs delivers plentiful I/O integration options. Even more there is an RS-232 as well as RS-485 interface for serial keyboard joystick support or PTZ control. All of this and plenty more combine for a great Network Video Recorder at very reasonable cost.

Last Updated May 2nd, 2016
