Dahua OEM 4K NVR H.265 16ch 16 PoE NVR4416-16P-4K

Write a Review
Calculated at Checkout
  • Dahua OEM 4K NVR NVR4416-16P-4K 16ch

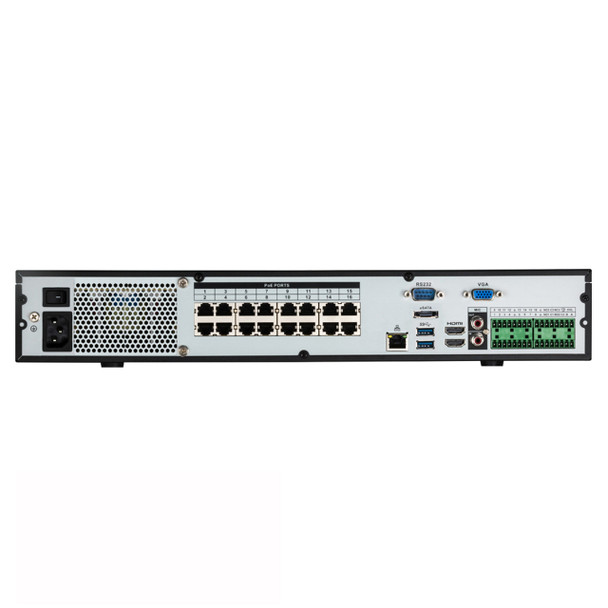

  • Dahua 4K NVR NVR4416-16P-4K 16ch rear panel

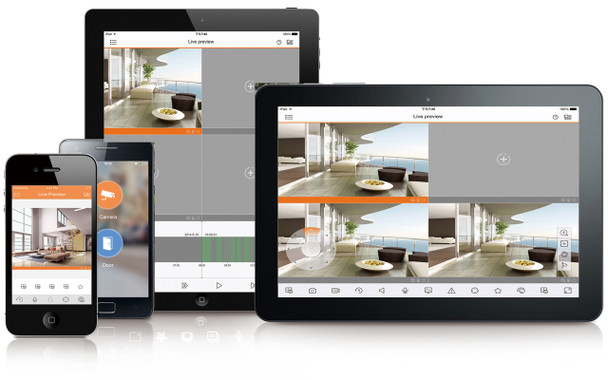

  • Dahua DMSS Mobile Surveillance Applications

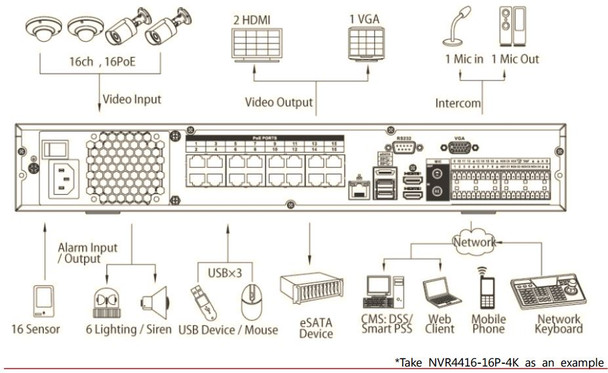

  • Dahua 4K NVR NVR4416-16P-4K 16ch rear panel diagram


Dahua OEM NVR4416-16P-4K 16ch 16 PoE NVR System delivers the next level in Linux Network Video Recorders with ultra HD video recording at up to 12 Megapixel. The lower resolutions of 4K (8MP), 6MP, 4MP, 3MP, 1080P and so on are all also supported of course and if UHD (Ultra HD) isn't impressive, the new H.265 compression method will impress you with dramatically better storage and bandwidth efficiency. The device is fully packed with professional attributes including support for sixteen (16) IP Cameras of the Dahua or other select 3rd party major brand models. Hardware attributes are plentiful with high capacity local storage to dual HDMI display plus much more ensure Pro security system requirements are well covered. Added hardware benefits all tie in with an innovative Surveillance Software loaded with smart functions like event triggers or notifications while diverse system monitoring and management is achieved easily as well as effectively in every regard. The Dahua OEM NVR4416-16P-4K H.265 16ch NVR is simply the NVR to have if you’re seeking reliable, high performing, quality and cost effective IP Surveillance.

Dahua OEM NVR4416-16P-4K Features:

  • 16ch Linux Network Video Recorder
  • Multi-Codec H.265, H.264 and MJPEG including dual streaming
  • Up to 256 Mbps Inbound throughput with up to 12MP video recording and playback
  • Up to 8ch at 1080P (4ch at H.265 plus 4ch at H.264) real-time live-view
  • Built-in 16 port PoE Network Switch (IEEE 802.3at and 802.3af)
  • Dual (2) HDMI and VGA simultaneous HD local video output
  • 16 channel synchronous real-time playback, GRID interface plus Time-line Search
  • Support 3rd Party IP Cameras (by model): Arecont, AXIS, Bosch, Panasonic, Pelco, Samsung, Sony, Vivotek and etc.
  • IT functions like IPv4/IPv6, UPNP, RTSP, DNS, IP Filter, DDNS, FTP, Alarm Server, and IPC uPnP, P2P, QR Code Scan and Add
  • ONVIF Compliance for easy 3rd party integration
  • Alarm I/O: 16 inputs 6 Relay Outputs
  • 4 SATA Internal HDD Slots for up to 24TB
  • 3 USB (2 USB 3.0) System control like via mouse to back-up function
  • RS-232 Keyboard Joystick Controller interface
  • RS-485 PTZ Control interface
  • On-board Two Way Audio Talk 1ch Input and 1ch Output
  • 3D intelligent Dahua PTZ camera positioning
  • Operating Conditions: -10°C~+55°C/10%~90%RH/86~106kpa
  • Dimensions: (W× D× H) 1.5U, 440mm× 413mm× 75mm
  • Weight: 10.23 lbs. or 4.65KG for PoE model (without HDD)

NOTICE: OEM products are original to referenced model except produced without brand labels for re-branding.


4K Ultra HD IP Surveillance and Better:
Dahua OEM NVR4416-16P-4K 16ch Linux NVR provides a sleek, simple and yet sophisticated network video recording solution. The Device is the perfect match for not only ultra HD 4K (8MP) video streams but likewise up to 12 Megapixel video recording. Add in the new H.265 codec recording, high bandwidth throughput processing power and 4 internal SATA III hard drive slots and its clear this unit offers serious recording capabilities. Administrators, installers or simply end-users will find device integration simple, yet flexible allowing even third party IP Cameras from many major brands at no extra cost. The on-board intelligence provides rich user configuration and as well as operation of every system aspect including live viewing, remote viewing, search, playback, export, user management and more.

Professional, Purpose Built:
Dahua OEM NVR4416-16P-4K 16 channel Network Video Recorder includes a sleek built-in web browser interface which delivers complete remote operations for pro security system management from anywhere. The NVR unit also comes with an advanced CMS Software (SmartPSS) capable of supporting multiple DVR, NVR or IP Camera Streams enabling even more advanced security operations. SmartPSS supports MAC or Windows computers for maximum convenience. Mobile Viewing is also versatile with Windows Phone, iPhone, iPad and Android Applications that all deliver top notch quality. Local Monitoring is furthermore powerfully equipped with an effective GUI plus allows Mouse and Keyboard Joystick System controllers for optimal on-site control. Dual HDMI output as well as other simultaneous monitor outputs ensure flexible HD video display. The unit’s on-board connections for RS-232, RS-485, Alarm I/O, and Two Way Audio to even eSATA promise a fully loaded Network Video Recorder for demanding IP Security Cameras Systems.

Last Updated May 2nd, 2016
