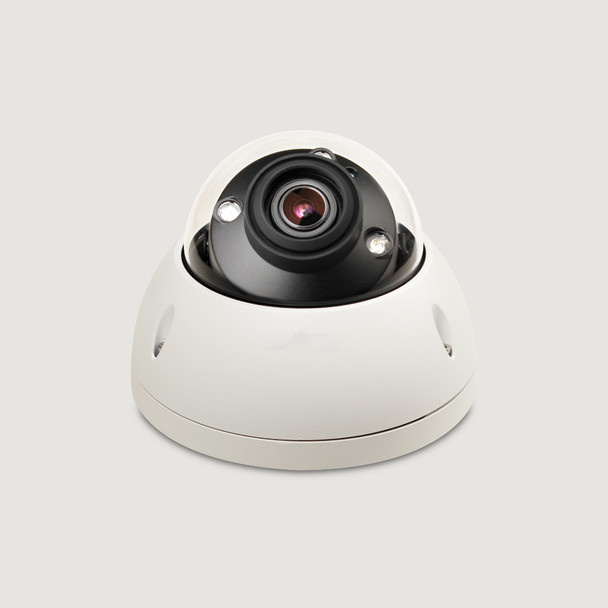

Dahua OEM IPC-HDBW5421E-Z 4MP WDR IR Vandal Dome IP Camera

OEM Dahua IPC-HDBW5421E-Z 4MP HD WDR IR Vandal Dome IP Camera delivers a new era of security cameras perfect for a wide variance of indoor or outdoor IP surveillance needs. The units boast high frame rate, high definition video resolution at up to 4 megapixel with multi-streaming including multiple H.264 codecs. These units are likewise equipped with superior imaging attributes like True WDR, True Day/Night and powerful IR LED illumination. The Dahua IPC-HDBW5421E-Z 4MP HD WDR IR Vandal Dome IP Camera is a full featured device supporting everything from motorized lens to Two Way Audio, Alarm/Relay I/O or on-board Recording with Micro SD. The units include a well-designed, easy to install unit that is flexible for 12VDC or popular PoE power sources. Multiple Surveillance Applications, On-board Smart Detection (video analytics) to various optional mounting accessories this IP Dome Camera ensures maximum benefit at a great low cost.

OEM Dahua IPC-HDBW5421E-Z Main Features:

• 1/3” 4 Megapixel progressive scan CMOS Sensor
• H.264 and MJPEG video codec dual streaming
• Max 20fps at 4MP (2688 × 1520), 30fps at 3MP (2304 x 1296)
• 2.7mm~12mm Motorized Lens Auto Iris (DC) w/HFOV: 100°~33°
• On-Board Video Analytic Smart Detection i.e. Tripwire, Intrusion, Missing, Face
• Smart IR LED Night Vision effective to 50 meters
• True WDR (120dB), True Day/Night (ICR), 3DNR, AWB, AGC, BLC
• Common Integration like: HTTPS, SSL, UPnP, RTSP, DNS, DDNS, QoS, ONVIF
• Numerous Remote Viewing Options Included: Web viewer, CMS (DSS/PSS) and DMSS Mobile App
• 1/1 Alarm I/O, Video BNC output, RJ-45 Network Connection
• 1/1 audio I/O with optional G.711a, G.711u or AAC Audio Codec
• Micro SD memory card slot for local recording 128GB Max
• Weatherproof IP67, Vandal Proof High Impact IK10
• Operating Temperature: -30°C~+60°C, Less than 95% RH
• Power Input: 12VDC or PoE (802.3af)
• Dimensions: Φ159mm×117.9mm or Φ6.25" × 4.64"
• Weight: 0.8kg or 1.76 lbs.

Excellent Image Performance, Anywhere:
The Dahua OEM IPC-HDBW5421E-Z 4MP HD WDR IR Vandal Dome IP Camera is fully outfitted to face even the most challenging lighting conditions. Its progressive scan, 4-megapixel Image Sensor captures vivid video surveillance and an array of video enhancements promise clear imaging in practically any condition. Even default settings conquer most applications but if needed in-depth manual configuration of camera properties allows flexible fine tuning. The selections range from shutter speeds to 3DNR (Noise Reduction) or BLC functions like HLC (Highlight Compensation) and True WDR (120dB Wide Dynamic Range). Coupled with functions like True Day/Night and integrated IR LED Illumination with an effective range to 50 meters it’s a perfect solution for indoor or outdoor IP Security Camera System.

Cutting Edge Technology:
Dahua IP Cameras are known for providing a well-rounded set of the latest features and of course at a low cost compared to other market leaders. The Dahua IPC-HDBW5421E-Z 4 MegaPixel HD IR Vandal Proof Dome IP Camera is yet another new example of the advantages Dahua offers. This unit boast attributes like a Motorized DC Auto Iris 2.7-12mm Lens ensuring Auto-Focus and easy adjustment. The units further enable a wide range of optional settings be it for camera imaging, network configurations, detection methods, alarm notifications, users and more. Benefits such as multiple on-board Video Analytics (Tripwire, Intrusion, Abandoned/Missing Object, Scene Change, Audio and Face Detection) to Micro SD local recording create a powerful surveillance solution even on its own. The Device is universally supported by Dahua NVRs, CMS Surveillance and Client Software as well as Mobile Applications directly. Most users, administrators and the like will find every feature they need be it ONVIF for integration or audio for optimal scene awareness.

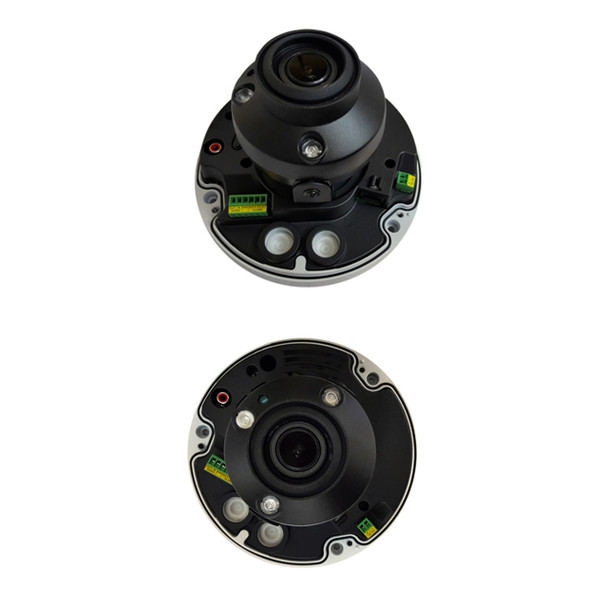

Quality Construction, Rugged and Smart Design:
The OEM Dahua IPC-HDBW5421E-Z 4MP HD WDR IR Vandal Dome IP Camera has a solid construction. We mean literally as not only does it rated to IK10 high impact standards but it also is IP67 weatherproof or in other words it is so outdoor ready that it can withstand temporary submersion. At roughly a six inch base and less than a five inch height, the device is well sized, but certainly not over-sized like some in the market. The addition of optional brackets from a simple L-bracket to pole mount adapters allows versatile installation for almost any application. One advantage after another continues to be found like a 12VDC or PoE for even easier install.

NOTICE: For Dahua A2Z Sales primarily OEM product versions which means no brand labels and models may vary but all specs are otherwise the same as referenced model.

Last Updated January 13, 2016
