Dahua IPC-HDBW4421E-AS28 4MP WDR IR Vandal Dome IP Camera

Write a Review
SKU:
IPC-HDBW4421E-AS28
MPN:
IPC-HDBW4421E-AS28
Shipping:
Calculated at Checkout
  • OEM Dahua IPC-HDBW5421E-Z 4 MegaPixel IR Vandal Dome IP Camera
  • OEM Dahua IPC-HDBW5421E-Z IR Vandal Dome IP Security Camera

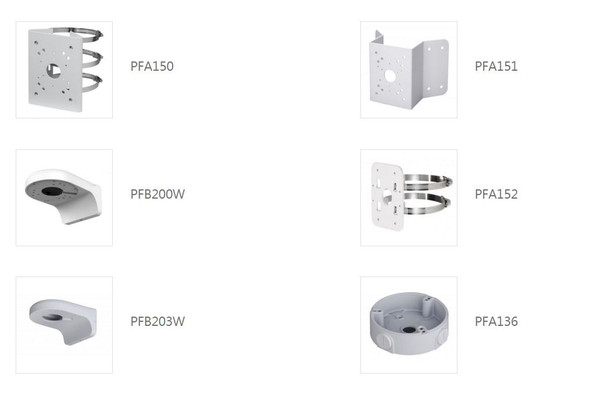

  • OEM Dahua IPC-HDBW5421E-Z Dome Security Camera Accessories
  • OEM Dahua IPC-HDBW5421E-Z Dome Security Camera Dimensions
$190.00

Description

Dahua OEM IPC-HDBW4421E-AS28 4MP WDR IR Vandal Mini Dome IP Cameras are a powerful model from this popular high performance, low cost brand. Boasting a 4 Megapixel High Definition Image Sensor this IP Camera delivers also high frame rate resolution for results that outperform most every competitors offering in its class. The unit of course delivers the latest H.264 compression, multi-streaming abilities and in-depth image control but it also features image enhancements like True WDR and 3DNR for sharp imaging an all kinds of challenging lighting. The addition of mechanical Day/Night and Integrated IR LEDs in a compact yet rugged dome casing promise a great fit for nearly any indoor or outdoor IP Surveillance System need. This model despite its low cost continues to provide advantages ranging from its 2.8mm lens for over 100 degree field of view to its Alarm, Audio and SD Card support making it a total IP Camera System in one device.

OEM Dahua IPC-HDBW4421E-AS28 Main Features:

  • 1/3” 4 Megapixel progressive scan CMOS Sensor
  • H.264 and MJPEG video codecs with dual streaming
  • 20fps at 4MP (2688×1520), 30fps at 3MP (2304×1296) or below,
  • On-Board Video Analytic Smart Detection i.e. Tripwire, Intrusion, Missing, Face
  • 2.8mm megapixel wide fixed lens w/HFOV 106° (3.6mm, 6mm optional)
  • IR LED Night Vision effective to 30 meters
  • WDR (120dB), Day/Night (ICR), 3DNR, AWB, AGC, BLC and customized image settings
  • Remote Monitoring: Web viewer, CMS (DSS/PSS) Client Software and DMSS mobile apps
  • Vast Integration such as SSL, HTTPs, UPnP, RTSP, FTP, DDNS, QoS or ONVIF
  • I/O Alarm Input/Relay Output
  • Two Way Audio I/O w/G.711a, G.711u or AAC codec selection
  • Outdoor weatherproof IP67 and Vandal Proof, High Impact IK10 rated
  • Operating Range: -30°C~+60°C, Less than 95% RH
  • Dimensions: Φ110mm × 81mm or Φ4.33" x 1.18"
  • Weight: 0.33 kg or 0.72 lbs.
  • Power: 12VDC or PoE


High Performance Video and Audio plus Smart Functions:
The OEM Dahua IPC-HDBW4421E-AS28 4MP IR Vandal Mini Dome IP Cameras are a best in class model packed with essential attributes for high performance while still maintaining low cost. The device features a new Progressive Scan 4 Megapixel CMOS image sensor and yields up to 4MP HD video at 20fps (faster than real-motion) and up to 30fps (real-time) in 3 Megapixel or lower resolutions. Image Enhancements like 3NDR (Digital Noise Reduction) accompanied by a true day/night operation and integrated IR LED illumination promise crisp night vision surveillance. The benefits of powerful WDR (Wide Dynamic Range 120dB) are also obviously apparent when facing high contrast scenes like building entrances/exits or anywhere adverse lighting occurs. The Triple Streaming with multiple codec selections such as H.264 and MJPEG are still but only a few of this device's key benefits. Users will also appreciate Two Way Audio with high quality codec support like AAC while this model's 2.8mm Lens promises a horizontal viewing angle of 106° for excellent wide area coverage. What else is quite nice about these units is their new Smart Detection methods giving powerful built-in Video Analytics including directional detection with functions like Tripwire or Intrusion modes to others like Scene Change, Face and Audio Detection plus more.

Compact Rugged Casing packed with Intelligence:
The Dahua IPC-HDBW4421E-AS28 4MP IR Vandal Mini Dome IP Camera is constructed in a solid yet super compact housing that has less than a four and half inch base and is barely over three inches high. This compact mini dome however still boast an IK10 high impact housing and a tough IP67 weatherproof rating for the harshest of outdoor environments. What is possibly even more impressive is the unit is rated to ultra-low temperatures far below freezing and the addition of various optional mounts allow install almost anywhere. Continuing with a good design concept this unit allows both DC 12V as well as PoE power (802.3af) for simplified install according to project needs. Besides featuring a fixed lens, this model provides performance and functions equal to most any full sized Dome IP Security Camera. Support for I/O Alarm Input/Relay Output, Two Way Audio for external microphone and Speaker as well as on-board high capacity Micro SD Card Support ensure a variety of advantages. Dahua's universal web interface design provide an intuitive highly similar web GUI allowing not only easy, effective device settings but also comprehensive device operations like full system management with live viewing, search (including time lines), playback (i.e. from SD card) to export and otherwise. Found to have solid quality and equal warranties the Dahua products are a great choice for optimal performance at a lower budget.

NOTICE: For Dahua A2Z Sales primarily OEM product versions which means no brand labels and models may vary but all specs are otherwise the same as referenced model.

Last Updated January 13, 2016
