Bosch NDC-265-P 720p HD IP Dome Security Camera

Write a Review
SKU:
NDC-265-P
Shipping:
Calculated at Checkout
  • Bosch NDC-265-P 720p HD IP Dome Camera

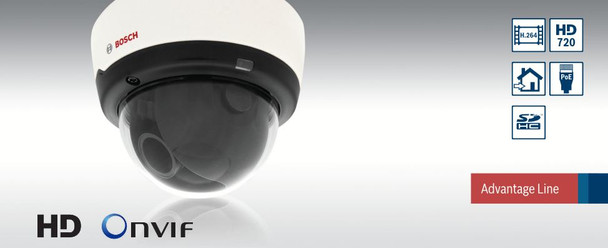

  • Bosch NDC-265-P 720p HD IP Dome Camera features
  • Bosch NDC-265-P 720p HD IP Dome Camera 3 axis adjustment

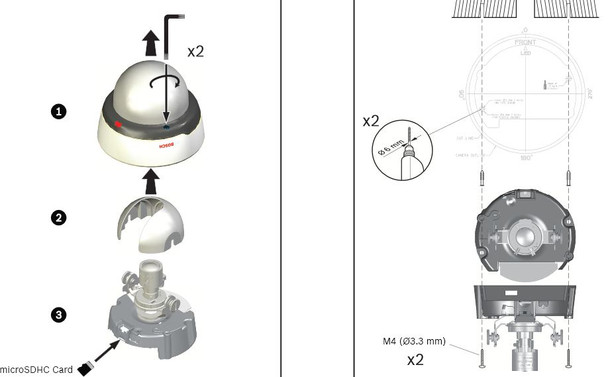

  • Bosch NDC-265-P 720p HD IP Dome Camera aseembly
$420.00

Description

Bosch NDC-265-P 720p HD IP Dome Camera is part of the Bosch advantage product line developed specifically to offer the market professional grade solutions at an effect cost. Bosch NDC-265-P HD Dome Security Cameras are best in class units that provide the key professional features that even enable the camera to be a stand-alone IP Surveillance system. First the camera delivers superior HD video with 720p high definition imaging including H.264 compression for superior image quality and optimized bandwidth. Next The Bosch HD Dome Camera also is equipped with a 2.7-9mm DC Auto Iris Lens for flexible adjustment and supports 12VDC or PoE (Power Over Ethernet IEEE 802.3af) for simplified installation. Then the Camera offers a built-in memory card slot and on-board detection methods for a complete security camera system in a single camera.
Finally, an assortment of other qualities ensure the Bosch NDC-265-P HD IP Dome delivers maximum capabilities for the investment. Other features like Audio with built-in Microphone and Alarm input with Relay output make certain the camera provides professional features for superior IP Camera System designs. Even more, the unit also supports ONVIF allowing countless third party VMS software and HD Camera Systems to make use of the Bosch NDC-265-P HD IP Dome Security Camera Advantage. Call our experts today to find out which cameras best suite your surveillance needs.


Bosch NDC-265-P  Main Features:

  • 720P High Definition (HD) Video Streaming
  • Supports H.264 and MJPEG Multi-streaming.
  • Real-time Video Surveillance 30fps in Full 720p HD.
  • Versatile 2.7-9mm DC Auto Iris Varifocal Lens.
  • Compact Indoor Dome Camera
  • Two Way Audio, Alarm Input and Relay output
  • Dual Power Input for 12VDC or PoE (Power Over Ethernet IEEE 802.3af)
  • ONVIF Compliant for universal system installation.


Bosch NDC-265-P Technical specifications:

Power
Input voltage
+12 VDC or PoE Power-over-Ethernet
Power consumption
4.2 W (max)
Video
Sensor type
¼-inch CMOS
Sensor pixels
1280 x 800
Sensitivity
1.0 lx
Video resolution
720p, 4CIF/D1, VGA, CIF, QVGA
Video compression
H.264 MP (Main Profile); H.264 BP+ (Baseline Profile Plus); M-JPEG
Max. frame rate
30 fps (M-JPEG frame rate can vary depending on system loading) Lens
Lens type
Varifocal 2.7 to 9 mm, DC Iris F1.2 to close
Lens mount
Board mounted
Connection
Analog video out
2.5 mm jack for installation only
Alarm input
Short or DC 5V activation
Relay out
Input rating Maximum 1 A 24 VAC/VDC
Audio
Audio input
Built-in microphone
Line in jack connector
Audio output
Line out jack connector
Audio communication
Two-way, full duplex
Audio compression
G.711, L16 (live and recording)
Local Storage
Memory card slot
Supports up to 32 GB micro SD/SDHC card
(An SD card of Class 4 or higher is recommended for HD recording)
Recording
Continuous recording, ring recording. alarm/events/schedule recording
Software Control
Unit configuration
Via web browser or PC surveillance software
Network
Protocols
HTTP, HTTPs, SSL, TCP, UDP, ICMP, RTSP, RTP, Telnet, IGMPv2/v3, SMTP, SNTP, FTP, DHCP client, ARP, DNS, DDNS, NTP, SNMP, UPnP, 802.1X, iSCSI
Ethernet
10/100 Base-T, auto-sensing, half/full duplex, RJ45
PoE
IEEE 802.3af compliant
Mechanical
Dimensions
Diameter: 135 mm (5.32 in)
Height: 102 mm (4 in)
Weight
568 g (1.25 lb.) approx.
Environmental
Operating temperature
Camera
-10 ºC to +50 ºC (14 ºF to +122 ºF)
Operating temperature
0 ºC to +40 ºC (+32 ºF to +104 ºF)
Universal Power Supply
Unit
Storage temperature
-20 ºC to +70 ºC (-4 ºF to +158 ºF)
Humidity
10% to 80% relative humidity (non-condensing)
Certifications and approvals
Region
Certification
Europe
CE
Standards
EN 60950-1: 2006,
Reference IEC 60950-1:2005
UL 60950-1:
1st edition dated October 31, 2007
CAN/CSA-C22.2 NO. 60950-1-03
EN 50130-4:1995 + A1:1998 + A2:2003
FCC Part15 Subpart B, Class B
EMC directive 2004/108/EC
EN 55022 class B
EN 61000-3-2 :2006
EN 61000-3-3 : 1995+A1 :2001+A2 :2005
EN 55024
AS/NZS CISPR 22 (equal to CISPR 22)
ICES-003 Class B
EN 50121-4:2006
Product certifications
CE, FCC, UL, cUL, C-tick, CB, VCCI
Power supply
CE, UL, cUL, PSE, CCC
Ordering information
NDC-265-P 720p IP Dome Camera
NDC-265-P
IP200 Mini Dome flush mount bracket
VDA-FMT-IP200DOM
