Bosch NBC-265-P 720p HD IP Security Camera

  • Bosch NBC-265-P Advantage series  720p HD IP Security Camera
  • Bosch NBC-265-P Key Features

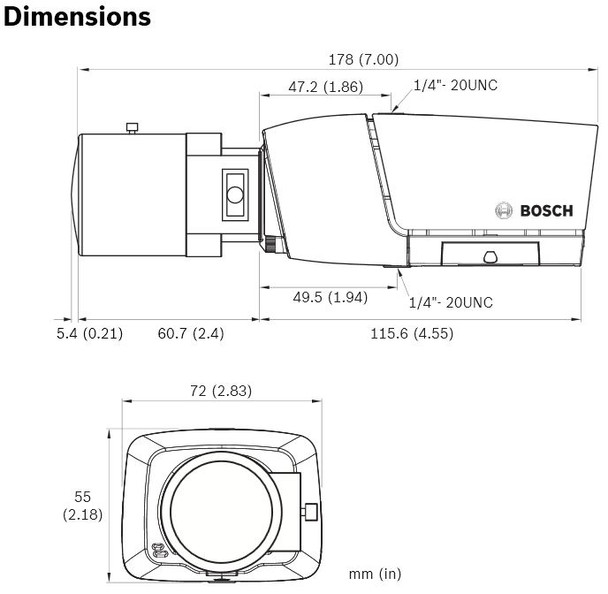

  • Bosch NBC-265-P dimensions
  • Bosch NBC-265-P IP Camera install guide 1
  • Bosch NBC-265-P IP Camera install guide 2
  • Bosch NBC-265-P IP Camera install guide 3
  • Bosch NBC-265-P IP Camera install guide 4
Price:
$372.00
SKU:
NBC-265-P
Brand:
Shipping:
Calculated at checkout
Quantity:


Product Description

Bosch NBC-265-P 720p HD IP Camera is a high performance, fully professional yet cost effective High Definition box style IP Security Camera. The Bosch NBC-265-P HD IP Cameras are part of the Bosch Advantage line offering superior quality IP Surveillance such as Real-time 30fps Full 720P HD video streaming with support for multiple streams. The Bosch 200 Series NBC-265-P Megapixel HD Cameras further provide the highly desirable H.264 and MJPEG compression codec options. The camera is supplied with a 2.8-12mm varifocal manual iris lens and supports other CS mount manual iris style megapixel camera lenses. The Bosch 720p HD Color IP Camera provides excellent low light sensitivity down to 0.3 lux.
The Bosch NBC-265-P 720p HD IP Camera is also loaded with other professional attributes for external device support and extended system operation. The Camera includes a built-in microphone and support integration of external audio devices with audio input and output connections. Furthermore the unit supports I/O connection allowing trigger from external sensors or relay control of other devices for maximum system flexibility. The Bosch 200 Series IP Cameras also offer dual power input for 12VDC or POE (power over Ethernet) for simple, single cable install. Finally these Bosch IP Security Cameras offer advantage to third party ip camera systems thanks to universal ONVIF compliance.

Bosch NBC-265-P Main Features:

  • HD 720p Real-time High Definition
  • Dual H.264 and M-JPEG streams simultaneously
  • SD/SDHC card slot for on-board (edge) recording
  • Flexible Power input with PoE Power over Ethernet or 12VDC
  • Two Way Audio with External Device Connection
  • Alarm input and relay output supported
  • ONVIF for universal third party system support


Bosch NBC-265-P specifications:

Power
Dual Input voltage:
+12 VDC or Power-over-Ethernet
Power consumption
3.6W (max)
Video
Sensor type
¼-inch CMOS
Sensor pixels
1280 x 800
Sensitivity
0.3 lx
Video resolution
720p, 4CIF/D1, VGA, CIF, QVGA
Video compression
H.264 MP (Main Profile); H.264 BP+ (Baseline Pro-file Plus); M-JPEG
Max. Frame rate
30 fps (M-JPEG frame rate can vary depending on system loading)
Lens
Lens type
Varifocal 2.8 to 12 mm, manual iris, F1.4 to 360
Lens mount
CS mount
Connection
Alarm input
+9 to 30 VDC
Relay out
24 VAC/VDC, 1 A
Audio
Audio input
Built-in microphone
Line in jack connector
Audio output
Line out jack connector
Audio communication
Two-way, full duplex
Audio compression
G.711, L16 (live and recording)
Local Recording Storage
Memory card slot
Support for up to 32 GB SD/SDHC card
(An SD card of Class 4 or higher is recommended for HD recording)
Recording Modes:
Continuous recording, ring recording. alarm/events/schedule recording
Software Control:
Unit configuration
Via web browser or PC surveillance software
Network
Protocols
HTTP, HTTPs, SSL, TCP, UDP, ICMP, RTSP, RTP, Tel-net, IGMPv2/v3, SMTP, SNTP, FTP, DHCP client,
ARP, DNS, DDNS, NTP, SNMP, UPnP, 802.1X, iSCSI
Ethernet
10/100 Base-T, auto-sensing, half/full duplex, RJ45
PoE (Power Over Ethernet)
IEEE 802.3af compliant
Mechanical
Dimensions with lens
(H x W x D)
55 x 72 x 178 mm (2.17 x 2.83 x 7.00 in.)
Weight (with lens)
352 g (0.77 lb.) approx.
Mounting
¼-inch mounting socket on top and bottom
Environmental
Operating temperature:
Camera
0 ºC to +50 ºC (+32 ºF to +122 ºF)
Operating temperature:
Power Supply
0 ºC to +40 ºC (+32 ºF to +104 ºF)
Storage temperature
-20 ºC to +70 ºC (-4 ºF to +158 ºF)
Humidity
10% to 80% relative humidity (non-condensing)
Certifications and approvals
Region
Certification
Europe
CE
Standards
EN 60950-1: 2006,
Reference IEC 60950-1:2005
UL 60950-1:
1st edition dated October 31, 2007
CAN/CSA-C22.2 NO. 60950-1-03
EN 50130-4:1995 + A1:1998 + A2:2003
FCC Part15 Subpart B, Class B
EMC directive 2004/108/EC
EN 55022 class B
EN 61000-3-2 :2006
EN 61000-3-3 : 1995+A1 :2001+A2 :2005
EN 55024
AS/NZS CISPR 22 (equal to CISPR 22)
ICES-003 Class B
EN 50121-4:2006
Product certifications
CE, FCC, UL, cUL, C-tick, CB, VCCI
Power supply
CE, UL, cUL, PSE, CCC
Ordering information
NBC-265-P 720p IP Camera
NBC-265-P
LTC 9348/00 Series Indoor Dome Housings
LTC9348/00
UHI-SBG-0 Series Indoor Housing
UHI-SBG-0
UHI-ASBG-0 Series Indoor Housing
UHI-ASBG-0

ORDERING INFORMATION:

Bosch NBC-265-P 720p HD IP Camera
Including Varifocal 2.8 to 8 mm lens
Commercial Type No: NBC-265-P
