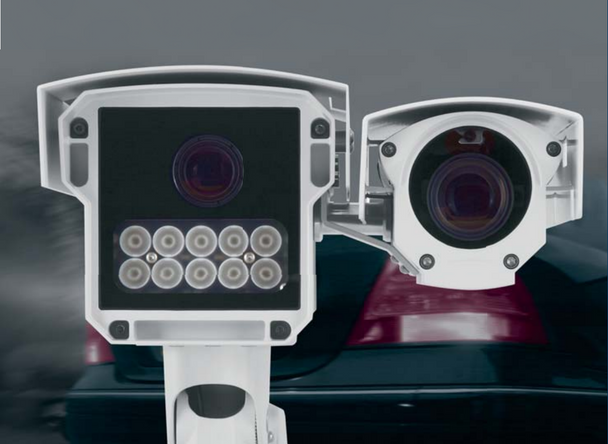

Bosch DINION 7000 License Plate Capture Camera LPR

Bosch DINION 7000 License Plate Capture Camera is a top tier CCTV Security Camera specially designed for vividly clear plate images in all conditions. The unit delivers 24/7 License Plate Capture and includes an over-view camera with both devices offering high resolution image capture. The Bosch DINION 7000 series provides superior High Contrast vehicle plate capture that includes Ambient Rejection technology to eliminate tail light and headlight glare. This enhanced CCTV Security Camera System includes improved accuracy for LPR and ALPR solutions with consistently crisp, clear images of vehicle license plate characters. The Bosch Dinion 7000 or VER-D2Rx-x is designed and succeeds at being a full-featured surveillance system for everything from parking lots to traffic on motorways and highways.

Bosch DINION 7000 is a rugged, weatherproof IP67 outdoor-ready License Plate Capture Camera System. Consisting of a true license plate capture camera equipped with a 5-50mm Lens that is optimally tuned to the capture distance based on model. The solution offers exceptional High Contrast Plate Capture and simultaneous vehicle description with independent scene overview. The Bosch Dinion 7000 provides a wide range ability with versions for short range starting at 12ft to long range distances at up to 92 feet. Additionally, Bosch DINION 7000 LPR Camera allows high speed capture of vehicles travelling up to 140mph.

From high quality capture to superior flexibility, the system is provided in both PAL and NTSC models for the improved LPR anywhere in the world. Intelligent automatic switch points to adjustable traffic modes allow simple tuning for regional license plate requirements. From parking garages to toll roads the Bosch Dinion 7000 License Plate Capture Camera provides superb performance and optimal License Plate Recognition effectiveness. If you have questions about the countless benefits of the Dinion 7000, contact the A2Z Security Cameras' Experts today.

Bosch DINION 7000 Main Features:

• Enhanced Results for LPR, ALPR and NLPR Systems
• True High Contrast Plate Capture w/Over-View Camera
• Ambient Light Rejection Technology Overcomes Glare for Clear Capture
• Adjustable Image Modes helps adapt to plates from different regions
• License Plate Capture Range (ALL MODELS) 3.8 to 28.0 m (12.5 to 92.0 ft.)
• Maximum License Plate Capture: 225 km/h (140 mph) at 30° mounting criteria.
• High Resolution 540 TVL
• Lens 5-50 mm Varifocal, calibrated to range option
• Six Programmable Preset Image Modes
• Dynamic Range 120dB (20-bit image processing)
• AGC On or Off (0 – 30 dB) selectable
• Auto Black, Dynamic Noise Reduction - Multi-Level Sharpness Enhancements
• Privacy Masking 4 Areas
• Controls OSD operation (multiple-languages)
• Video Motion Detection One area, fully programmable
• 3.8 to 28.0 m (12.5 to 92.0 ft.) Plate Capture Range 5-50mm Varifocal, is pre-calibrated
• Extended Temperature Range: –40°C to +50°C (–40°F to 122°F)
• Humidity 0% to 100% relative, condensing
• Weatherproof IP67, (NEMA 4X) Wind Load 90 mph Construction
• Dimensions (H x W x L) 340mm x 154mm x 139mm (13.3 x 6.1 x 5.5 in.), housing with sun-shield only see diagram*
• Weight 4.4 kg (9.7 lbs.)
• Wall mount included

ORDERING INFO

NTSC DINION 7000 LPR Camera Models:

VER-D2R1-2 DINION capture 7000 NTSC 12.5 to 21 feet capture range
Order number VER-D2R1-2
VER-D2R2-2 DINION capture 7000 NTSC 18 to 30 feet capture range
Order number VER-D2R2-2
VER-D2R3-2 DINION capture 7000 NTSC 26 to 45 feet capture range
Order number VER-D2R3-2
VER-D2R4-2 DINION capture 7000 NTSC 37 to 64 feet capture range
Order number VER-D2R4-2
VER-D2R5-2 DINION capture 7000 NTSC 54 to 92 feet capture range
Order number VER-D2R5-2

PAL DINION 7000 LPR Camera Models:

VER-D2R1-1 DINION capture 7000 PAL 3.8 to 6.4 meters capture range
Order number VER-D2R1-1
VER-D2R2-1 DINION capture 7000 PAL 5.5 to 9.1 meters capture range
Order number VER-D2R2-2
VER-D2R3-1 DINION capture 7000 PAL 7.9 to 13.7 meters capture range
Order number VER-D2R3-1
VER-D2R4-1 DINION capture 7000 PAL 11.3 to 19.5 meters capture range
Order number VER-D2R4-1
VER-D2R5-1 DINION capture 7000 PAL 16.5 to 28.0 meters capture range
Order number VER-D2R5-1

UNIT AVAILABLE WITH NO OVER-VIEW AS DINION 5000 (PLUS IP CAMERA VERSIONS OPTIONAL)

Accessories:

Power Supplies:

Indoor, 120VAC, 60Hz In; 24VAC, 50 VA Out
Order number UPA-2450-60
Indoor, 220VAC, 50Hz In; 24VAC, 50 VA Out
Order number UPA-2450-50
Universal Outdoor Power Supply, 120VAC to 240VAC, 50/60 Hz Input; 24 VDC, 50W Output
Order number PSU-124-DC050

Mounting Adapters:

White Pole Mount Adapter Plate DINION capture 5000/7000, MBE-27, MBE-28 or EXMB.020B HD L Bracket)
Order number MBE-15W
White Wall Mount Adapter Plate DINION capture 5000/7000, MBE-27, MBE-28 or EXMB.020B HD L Bracket)
Order number MBE-17W
