Messoa SCR515PROHB-HN2 License Plate Capture Camera

Write a Review
Calculated at Checkout
  • Messoa SCR515PROHB-HN2 LIcense Plate Capture Camera and Over-view Camera function

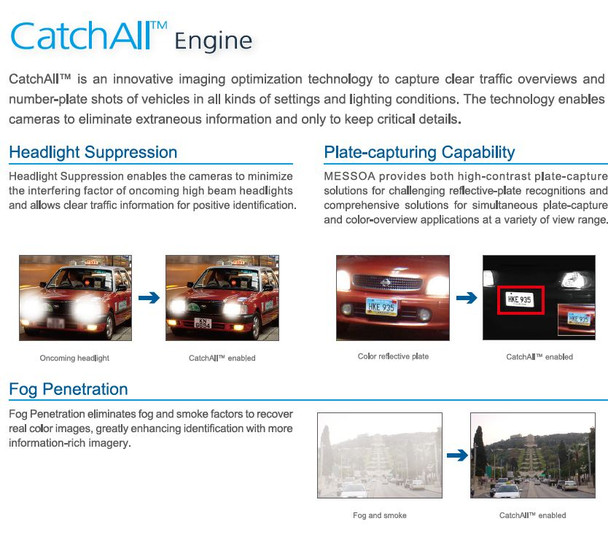

  • Messoa SCR515PROHB-HN2 CatchAll Features
  • Messoa SCR515PROHB-HN2 Superior PErformance for License Plate Capture
  • Messoa SCR515PROHB-HN2 LPR Camera Key Features
  • Messoa SCR515PROHB-HN2 Dimensions


Messoa SCR515PROHB-HN2 License Plate Capture Camera is an optimized surveillance camera designed specifically for the purpose of Automatic Numeric Plate Recognition (ANPR) Systems. The Messoa SCR515PROHB-HN2 LPR Camera provides Messoa CatchAll technology to deliver crisper, clear plate capture in a variety of traffic applications. The Messoa License Plate Camera includes class leading technology like Messoa's Fog penetration, Wide Dynamic Range, Intelligent Traffic Mode, 3D DNR and headlight suppression. High Resolution 600TVL Color Overview or High Contrast Black and White images can be achieved with the camera.
The Messoa SCR515PROHB-HN2 License Plate Capture Camera is also built strong with an IP66/IP67 (depending on install) weatherproof rating, includes built in heater / Blower and has a salt resistant finish. The Camera is also constructed with vandal proof, high impact resistance with cable feed through bracket for superior outdoor protection. The License Plate Camera is capable of capturing vehicles traveling up to 124 mph and at medium to long range distance. The camera can further be enhanced with Messoa IR LED Illuminator SLI080 Series. The Messoa SCR515PROHB-HN2 is suitable for High ways, toll roads, streets and other general traffic ANPR / LPR applications.

Messoa SCR515PROHB-HN2 Main Features:

  • True License Plate Capture Camera for LPR Systems and High Security
  • Superb High Resolution 540TVL Color - 600TVL B/W Optimized High Contrast Images
  • Powerful IR and 7.5-50mm Varifocal Lens offer extended capture range
  • Messoa CatchAll Technology for Optimal License Plate Capture
  • Wide Dynamic Range WDR, 3D DNR, Headlight Suppression, Fog Penetration
  • Rugged Vandal-proof Weatherproof IP67 Outdoor Construction
  • Built-in Heater/Blower for extended operating range
  • CCTV Composite output and OSD Menu with Rs-485 Remote Control Supported
  • (NTSC) EIA / (PAL)CCIR Models available
  • 24VAC Power Input 45 Watts Max


Messoa SCR515PROHB-HN2 Specifications:

Signal system NTSC PAL
 Imaging area 4.9mm x 3.7mm
 Image pickup device SONY 1/3" Super HAD II Hi-Res CCD
 Effective pixels(HxV) 768 x 494 752 x 582
 Scanning system
2:1 Interlace V: 59.94Hz, 2:1 Interlace V: 50Hz,
H: 15.734KHz H: 15.625KHz
 Sync system Internal / line lock (AC input only)
 Horizontal resolution 600 / 700 TV lines (day/night mode)
 Infrared illuminator 70M distance, 850nm wavelength, view angle of 50 degree
 LEDs Superior power:96 pcs LEDs; Metaphase-type LEDs, high-efficient array
 Gamma correction 10 levels selectable
 Minimum illumination
Day mode: 0.01 Lux(F1.4, AGC on , 10IRE); 0.04 lux (F1.4, AGC on , 50IRE)
Night mode: 0.003 Lux(F1.4, AGC on , 10IRE); 0.01 lux (F1.4, AGC on , 50IRE)
 S/N ratio More than 50dB (AGC off)
 Built-in Lens f:7.5-50mm F1.3, IR-corrected (DC Lens)
 Privacy zone On / Off, up to 8 zones
 Day/Night mode Auto / Mono / Color / D/N Sync / Schedule
 Iris control Video / DC driver
 Lumii 9 levels selectable
 White Balance ATW1 / ATW2 / Manual
 Electric shutter Auto ( 1/60 to 1/100K sec.) / manual 46 steps (1/60 to 1/100K sec.) Auto ( 1/50 to 1/100K sec.) / manual 46 steps (1/50 to 1/100K sec.)
 BLC BLC1 /BLC2 /BLC3 /BLC4 /BLC5 /BLC6 / Off
 Aperture control High / Mid / Low
 Chroma 9 levels selectable
 OSD Yes
 Intelligent traffic mode
1. Traffic 1 : 20 to 110 km/hr.
12 to 68 mph
2. Traffic 2: 90 to 180 km/hr.
56 to 112 mph
3. Traffic 3 : 20 to 110 km/hr.
12 to 68 mph
4. Traffic 4: 0 to 20 km/hr.
0 to 12 mph
 Headlight suppression 10 levels selectable
 Fog penetration On / Off
 D. WDR On / Off
 Digital Noise Reduction(DNR) Off/ 2DNR/ 3DNR
 Mirror On / Off
 Flickerless On / Off
 Remote control Yes (RS485)
 Video output 1Vpp composite output, 75 ohm
 Dimension (L x W x H) 422 x 174 x 145mm (16.6" x 6.9" x 5.7")
 Enclosure Vandal-proof, side opening, IP67, vandal-proof, die-cast aluminum with stainless screw, salt resistance, with wall mount cable management bracket
 Weight 6 kg (13.22 lbs.)
 Application Ceiling mount/Corner mount/Pole mount
 Operating temperature -30C ~ 50C
 Operating humidity 30% ~ 90% RH
 Storage temperature -30C ~ 60C
 Protection Class IP66/IP67
Power supply
 Power requirement AC24V AC90 ~ 260 V AC24V
 Power consumption 45W (max. with heater blower)
Ordering Information SCR515PROHB-HN2 SCR515PROHB-HN7 SCR515PROHB-HP2
