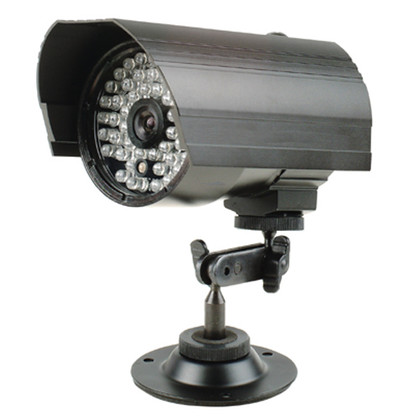

A2Z AZBIREF IR Bullet Security Camera

Write a Review
Calculated at Checkout


A2Z AZBIREF IR Bullet Security Camera is an ultra high performance effio CCD based surveillance camera. The A2Z Infrared Bullet camera offers sxtended night vision illumination with 36 high intensity IR LEDs. The A2Z AZBIREF IR Bullet Security Cameras also provide superior 720TVL high resolution. The camera has an integrated IR corrected 2.8-12mm Auto Iris Lens for sharp focus day or night. The A2Z Infrared Bullet Security Camera simply dominates cameras in it class thanks to an array of advanced image processing technology. Powerful attributes like 3D DNR, Sens Up, DIS and Blemish compensation are a masterful combination of the best the industry offers. The IR Camera goes on to support Motion Detection, Digital Zoom, Freeze, and other image adjustments via an On Screen Display. It is clear from the video performance alone the IR Bullet is a high grade unit. Environmental protection takes the camera to the next level. The high quality casing and outdoor ready, weatherproof design including sun shield and cable feed through bracket make for a pro security camera system install!

A2Z AZBIREF Main Features:

  • 1/3” Color EFFIO CCD
  • 720TVL High Resolution
  • 0 LUX Night Vision with 36 High Intensity IR LEDs
  • 3D DNR (Digital Noise Reduction)
  • Sens Up, DIS, and WDR
  • IR ICR Auto Iris 2.8~12mm Lens
  • Weatherproof Outdoor Design w/Cable Feed Through Bracket
  • 24VAC / 12VDC 800mA

A2Z AZBIREF Specifications:

  • Sensor: 1/3 inch,SONY EFFIO COLOR CCD
  • Total Pixels: 811(H) x 508(V)
  • Effective Pixels: 768(H) x 494(V)
  • Scanning System: 2:1 Interlace
  • Synchronization: Internal / Line Lock
  • O.S.D (On Screen Display): Available
  • Dynamic Range: 52dB(x128)
  • Backlight Compensation: WDR/BLC/OFF Selectable
  • Resolution: 720TVL (Typ.)
  • S/N ( Y Signal): 52dB (AGC OFF, Weight ON)
  • D&N Selection: Color / Black & White / Auto / Ext
  • Min. Illumination: Color Mode: 0.003(0.6) Lux B/W Mode: 0.0001 (0.1) Lux
  • Lens: Auto Iris 2.8~12mm Varifocal (External Adjustments)
  • Iris Control: DC
  • White Balance: ATW/AWC/Manual/Outdoor (1800°K~10500°K) Indoor(4500°K~8500°K)
  • Electronic Shutter Speed: 1/60sec~1/120000sec 1/50sec~1/120000sec)
  • Sens-up: AUTO / FIXED / OFF (Selectable Limit x2 ~ x128)
  • Gain Control: LOW / MIDDLE / HIGH / OFF Selectable
  • 3D-DNR: OFF/ON (1~63 Level Adjustable)
  • Blemish Compensation: 265 Point ( Even 128 Points, ODD 128 Points)
  • Digital Image Stabilizer (DIS): ON/OFF
  • Mirror (H-Rev): ON/OFF
  • Flip (V-Rev): ON/OFF
  • Freeze: ON/OFF
  • Sharpness: ON/OFF
  • Motion Detection: ON/OFF (8 Zone, ALARM Output)
  • Privacy: ON/OFF
  • Digital Zoom: ON(6x) / OFF
  • Power: AC24V / DC12V ± 10% , Max 800ma
  • Storage Temperature / Humidity: 0-10°C to +50°C / 30% to 80% RH
  • Operating Temperature / Humidity: -20°C to +60°C / 20% to 90% RH
  • Dimensions: 152mm x 76mm x 84mm (6"x3"x3.25")
  • Weight: 1300g
