A2Z AZ61NV6S 36x Mobile PTZ Camera System

  • A2Z Security Cameras AZ61NV6S 36x Mobile PTZ Camera System

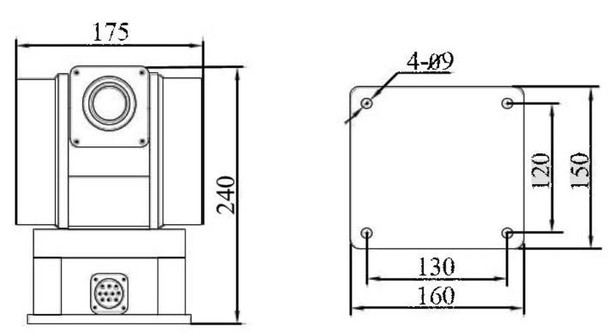

  • A2Z Security Cameras AZ61NV6S Diagram

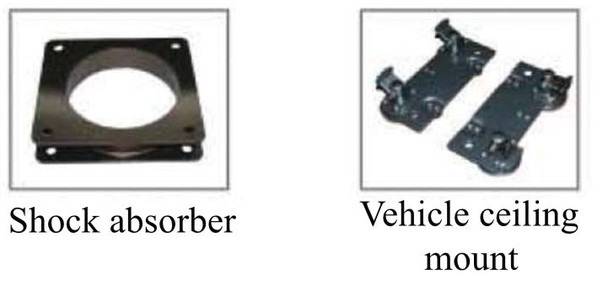

  • A2Z Security Cameras AZ61NV6S Mobile PTZ Camera System accessories

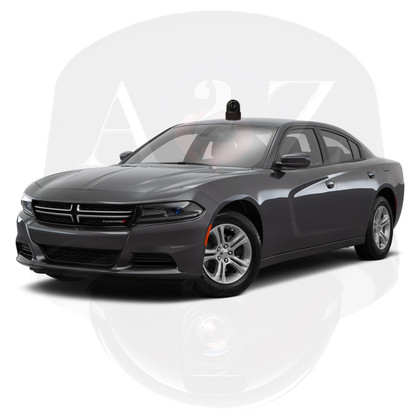

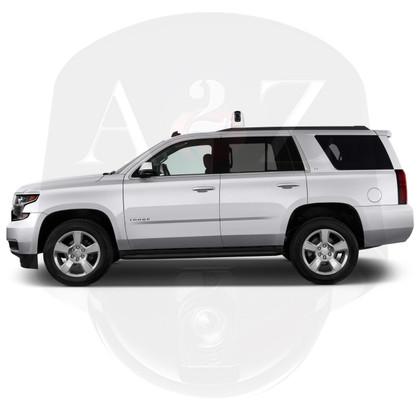

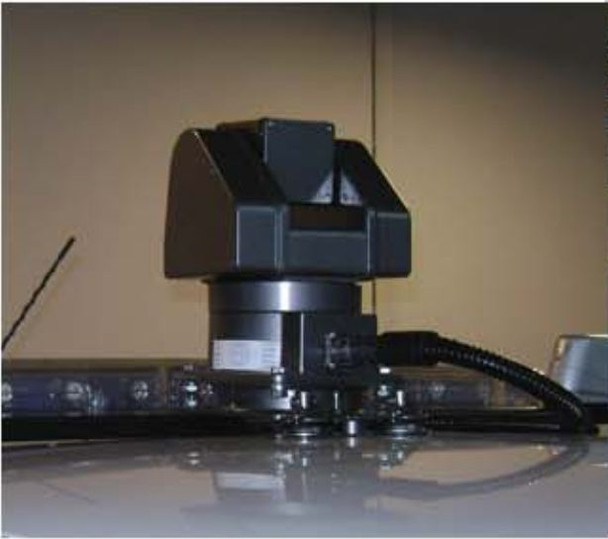

  • A2Z AZ61NV6S 36x Mobile PTZ Camera System mounted on police car
Contact us at 855 376 6699

Product Description

A2Z Security Cameras AZ61NV36S is a high performance Pan/Tilt/Zoom Camera system ideally suited for mobile surveillance requirements. The unit is built rugged with the finest parts such as the Sony made 36x Day/Night Block Camera for stunning high resolution performance. The unit delivers exceptional low light performance to 0.01 Lux and is also benefitted by the superb WDR (Wide Dynamic Range) function which allows the camera to overcome high contrast lighting differences in a scene as well as resolve issues like glare. This PTZ Camera system is built to deliver and succeeds at providing a cost effective solution that maintains fully professional features.
The 36x Mobile PTZ Camera System is built to IP66 weatherproof standards and includes temperature control to withstand high and low temperature extremes. The Unit is further fabricated from die-cast aluminum and has an  anti-corrosion finish to ensure optimal system operation for years. In fact, the camera includes a robust shock-proof design with shock absorber and specialized rooftop mount. This makes installation easier and the PTZ camera is a total camera solution on nearly any car, truck, boat, surveillance trailer, command trailer or other vehicle type. With continuous 360 degree pan, no blind spots, 128 presets, cruising tracks and more promise to fulfill PTZ user requirements. The AZ61NV36S 36x Car PTZ Camera System is multi-protocol and can easily also adapt to a variety of fixed camera system needs.

A2Z Security Cameras AZ61NV36S  Main Features:

  • 36x Motorized Zoom Sony Block Camera
  • High Resolution 530TVL w/True Day/Night function
  • WDR (Wide Dynamic Range)
  • Electronic Shutter Speed Control
  • Low Light 0.1 Color 0.01 B/W
  • High Speed and High Precision Pan/tilt/Zoom Movement
  • 360 Degree Continuous Pan with versatile tilt
  • Supports 128 Presets and Cruising Tracks (Grouped Presets)
  • Multi-Protocol Telemetry Support for RS-45 Control
  • Unit also offers RF Wireless Remote
  • Anti-shock design the camera is also weatherproof IP66 with anti-corrosion finish
  • Supplied shock absorber and special vehicle rooftop mount further enable super shock-proof resistance
  • 12VDC Power Input

Sony 36x Motorized Zoom Block Camera Specifications:

Picture Elements: Approx., 380K Pixels (NTSC) / Approx., 440K Pixels (PAL)
Horizontal High Resolution: NTSC: 530TVL (wide end) / PAL: 530TVL (wide end)
Motorized Zoom Lens: 36x Optical F=3.4mm-122.4mm (Wide-Telephoto), F1.6 ~F4.5
Zoom Speed Movement (NTSC): Optical Wide/Optical Tele 4.0sec,
Optical Wide/Digital Tele 6.0sec, Digital Wide/Digital Tele 2.1sec.
Zoom Speed Movement (PAL): Optical Wide/Optical Tele 4.0sec,
Optical Wide/Digital Tele 6.2sec, Digital Wide/Digital Tele 2.3sec.
Focus Movement Time: to near 1.0sec
Digital Zoom: 12x (432x with optical zoom)
Viewing Angle: Approx. 57.8° (wide end) to Approx. 1.7°(Tele end)
Min. Working Distance: 320mm (Wide end), 1500mm (Tele end)
Sync System: Internal / External (V-Lock)
Min. Illumination: 1.4 Lux/1/60 sec (NTSC), 1/50sec (PAL) (Typical value)
0.1 Lux/1/4 sec (NTSC), 1/3sec (PAL) Color Mode
0.01 Lux/1/4 sec (NTSC), 1/3sec (PAL) B/W Mode
Recommended Illumination: 100 to 100,000 Lux
S/N Ratio: 50dB (Weight ON)
Back Light Compensation (BLC): ON/OFF
Electronic Shutter Speed: NTSC: 1/4 to 1/10000 sec. (20 steps)
PAL: 1/3 to 1/10000 sec. (20 steps)
White Balance: AUTO, ATW, Indoor, Outdoor, One Push WB, Manual WB
Gain: Auto / Manual (-3 to 28dB, 16steps)
Wide Dynamic Range (WDR): ON/OFF
Aperture Control: 16 Steps
Video Output: VBS: 1.0Vp-p (Sync negative), Y/C Output

Pan/Tilt(PT) Specifications:

Pan Range: 360 Degree Continuous
Tilt Range: -87 degrees to 88 Degrees
Manual Speed Pan: 0-60 Degrees/sec
Manual Speed Tilt: 0-40 Degrees/sec
Preset Speed Pan: 80 Degrees/sec
Preset Speed Tilt: 60 Degrees/sec
Preset Positions & Cruising Tracks: 128 presets with 6 cruising tracks
Communication: Multi-protocol, Baud Rate from 2400Bps to 19200Bps via RS-485 Interface
Auto pan Speed: 0.5-30 Degrees/sec
Intelligent Start-up Time: 40 seconds
Alarm Inputs: 4
Alarm Output: 1
Power Supply: 24VAC - 10% -/+
Power Consumption: 50VA 2.5A
Weight: 10Kg
Relative Humidity 10-90%
Operating Temperature: -35C-55C
Ingress Protection: Weatherproof IP66 rated
