Wired vs. Wireless Surveillance Systems – CCTV & IP Security Camera Systems
By Justin C., Video Security System Specialist — A2Z Security Cameras
Introduction
In the world of modern surveillance, decision-makers often face the question of whether to invest in a wired or wireless security camera system. An uninformed choice can significantly impact system reliability, installation complexity, scalability, long-term adaptability, and overall operating costs.
For businesses, government facilities, small businesses, and home users, the decision isn’t just about perceived convenience — it’s about operational priorities such as uptime, data security, feasibility, and total cost of ownership. This guide breaks down both technologies, their pros and cons, and the ideal use cases for each to help you make an informed decision.
Understanding the Basics
What Is a Wired Surveillance System?
A wired surveillance system transmits video, audio, data, and sometimes power for the security camera through Ethernet (mostly IP, though occasionally used for CCTV systems) or coaxial (primarily used for analog and HD CCTV systems) cables. In modern IP camera systems, power is most often supplied through PoE (Power over Ethernet). In CCTV setups, power is typically delivered via separate lines, although alternatives like CAT5e or CAT6 cabling with adapters, or in rarer cases, PoC (Power over Coax) solutions exist.
In professional-grade installations, combo cables are common — especially unterminated spools that include both coaxial and power wires, often referred to as siamese cable. These simplify installation by keeping both signal and power delivery in a single run. Over time, CCTV has evolved from purely analog to advanced HD CCTV technologies, which now rival IP systems in many ways. Modern HD CCTV can carry video, audio, control, and other signals over a single coaxial cable, much like network-based systems consolidate transmission over Ethernet.
Common in: - Small to large-scale commercial installations - Government & enterprise security networks - Permanent infrastructure setups - Still common in home security
What Is a Wireless Surveillance System?
A wireless surveillance system transmits video — and in many cases audio, data, and control signals also — over Wi-Fi, proprietary wireless links, or cellular networks. The cameras still require power, supplied by localized source, battery, or solar power system, but no physical video cable connects them to the recorder or head-end.
Different wireless technologies suit different scenarios. While Wi-Fi–based security cameras are more common in home security, professional-grade systems often rely on wireless for specific objectives rather than the core transmission method. For example, wireless links may be used to connect remote points or establish backbones between structures (wireless bridges or point-to-point backhaul) while within each building, cameras are deployed with wired runs. These have been proven effective for supporting higher remote camera counts for more than a decade.
Other wireless technologies, such as cellular (4G/5G) and satellite connectivity, continue to expand — particularly in mobile, off-grid, or remote deployments.
Common in: - Rapid deployment or temporary surveillance projects - Sites with challenging or cost-prohibitive cable runs - Mobile, off-grid, or remote-location security - Multi-building properties using wireless bridges or backhaul links - Wi-Fi–based systems in residential security
Key Factors to Consider
1. Reliability
Wired:
- Provides consistent, interference-free transmission in the majority of applications - Generally not affected by RF issues like Wi-Fi congestion or range
- Generally unaffected by weather-related signal loss
- Lower latency compared to wireless, beneficial for real-time monitoring or analytics
Wireless:
- Dependent on factors like signal strength and bandwidth
- Susceptible to interference from other devices or competing wireless networks
- Requires more careful planning at scale
- Performance impacts from distance and obstructions vary by site
- Latency can be slightly higher than wired, especially in high-traffic or long-distance links
2. Installation
Wired:
- Often involves greater installation complexity, sometimes more suitable for Pro or skilled DIY installers
- Best for permanent infrastructure
- May involve drilling, trenching, or conduit work
- Choice of cable pathway and protection (e.g., conduit type, burial depth) can affect long-term durability
- Multi-building installs or excessively long runs can require more planning or equipment to stay within system cable limitations
Wireless:
- Often faster setup, which can be ideal for DIY, long-range, or rapid deployments
- Eliminates extensive cabling, even enabling installs where wiring is otherwise impractical
- Limited by power source availability — many still require some wiring
- Pro-grade installs can benefit from site surveys, line-of-sight verification, and antenna placement optimization
3. Security & Data Protection
Wired:
- Data travels on a closed network — harder to intercept
- Lower cybersecurity risk with CCTV or segmented IP networks
- Often preferred for sensitive facilities (government, critical infrastructure)
- Physical risks include cable tapping or cutting. These can be mitigated with tamper-resistant conduit, secure pathways, and other techniques.
Wireless:
- Security varies by transmission type (consumer Wi-Fi vs. enterprise-class point-to-point)
- Strong encryption and secure authentication can meet compliance requirements
- Frequency licensing, protocol hardening, and firmware management play a role in maintaining security
- Improper setup, weak credentials, or unencrypted links raise cybersecurity risk
4. Scalability
Wired:
- Easier to expand large systems without complex bandwidth issues
- Supports higher resolutions and frame rates, often with higher stability and fewer issues
- Infrastructure investment supports long-term adaptability
- Scaling requires ensuring switch capacity and PoE budgets or recorder capacity and suitable power supply for CCTV
Wireless:
- Adding cameras can strain network capacity (varies by technology)
- Sometimes the only viable option when cabling is impractical
- Channel planning, spectrum management, and antenna configuration are critical for large expansions
- Hybrid expansion strategies can combine wired stability with wireless reach
5. Maintenance
Wired:
- Minimal troubleshooting once installed properly
- Cable wear can occur over years; quality and environmental factors matter
- Upgrades may require re-cabling if not planned for current and future needs
- Periodic cable testing and inspection for UV, moisture, or rodent damage help extend life
Wireless:
- More frequent firmware/network updates for security
- Signal interference or loss may require adjustments
- Wire-free units may need regular charging or battery replacement
- Antenna alignment checks and monitoring of firmware deprecation cycles help maintain performance
- Upgrading to newer technology (e.g., Wi-Fi 6/6E or 5G) may require hardware upgrades sooner than with wired systems
COST SUMMARY (Plain English)

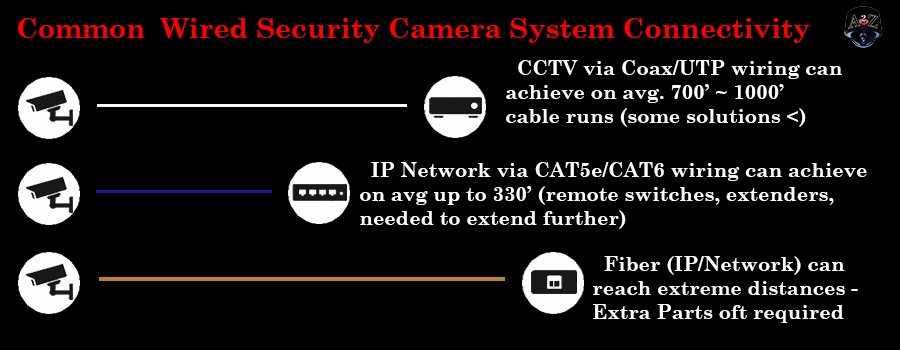

• Wired — Ethernet (PoE) & CCTV Coax: Up-front can be higher due to cable, conduit/trenching, and labor, but ongoing costs are usually low. Ethernet runs ≈300' per span; CCTV coax can reach ≈700–1,000'+ per run (distance and image quality depend on cable type/condition).

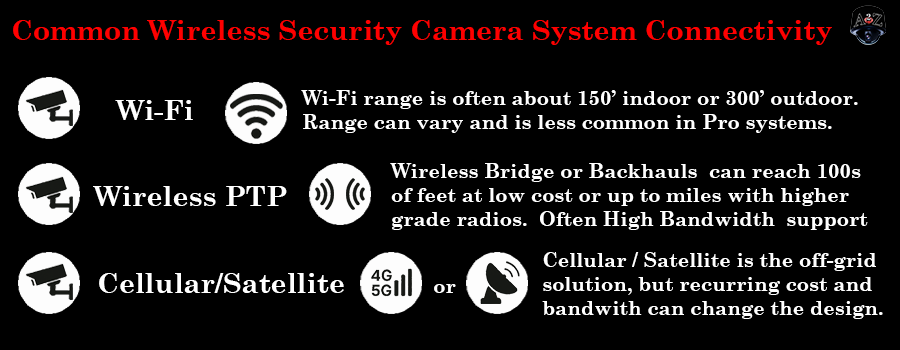

• Wi-Fi Cameras (on-site LAN): Lowest up-front for small add-ons (≈1–4 cameras) since you skip new long pulls; ongoing is low–medium depending on equipment life-span and site interference.
• Wireless Bridge (PtP/PtMP): Medium up-front for radios/mounts; often cheaper than trenching across lots/roads. Low ongoing; best for IP camera systems when clear line-of-sight is available.
• 4G/5G Cellular: Lowest up-front and fastest to deploy off-grid; ongoing is highest (data plan). Great for remote or temporary surveillance, but sustained uplink is lower than LAN/bridge.
| Transport Type | Perks | Tradeoffs | Best Use |
|---|---|---|---|
| WIRED — Ethernet (PoE) / CCTV Coax | Highest reliability & throughput; predictable 24/7 recording; reuse existing cable; coax ≈700–1,000' reach; Ethernet ≈300' per span. | Up-front civil work (trenching/conduit/permits); less flexible after install. | Critical/regulated sites; high-res continuous recording; large, long-term systems. |
| WI-FI CAMERAS — on-site LAN | Fast add-ons (≈1–4 cams); minimal cabling; low up-front when power is nearby. | Interference/congestion risk; AP capacity planning; local power/battery swaps. | Small retrofits; quick installs where pulling new cable is costly; frequent relocations. |
| WIRELESS BRIDGE — Point-to-Point / Point-to-Multipoint | Spans 200' to miles with clear LoS; avoids trenching across lots/roads; high bandwidth when aligned. | Needs LoS & sturdy mounts; alignment/weather sensitivity; RF planning. | Lot/road crossings; building-to-building/campus links; long runs where trenching is impractical. |
| 4G/5G CELLULAR | Works anywhere with coverage; off-grid & temporary friendly; fastest to deploy. | Recurring data cost; lower sustained uplink than LAN/bridge; coverage/congestion variability. | Remote/off-grid gates, farms, lots; rapid-deployment or temporary surveillance. |

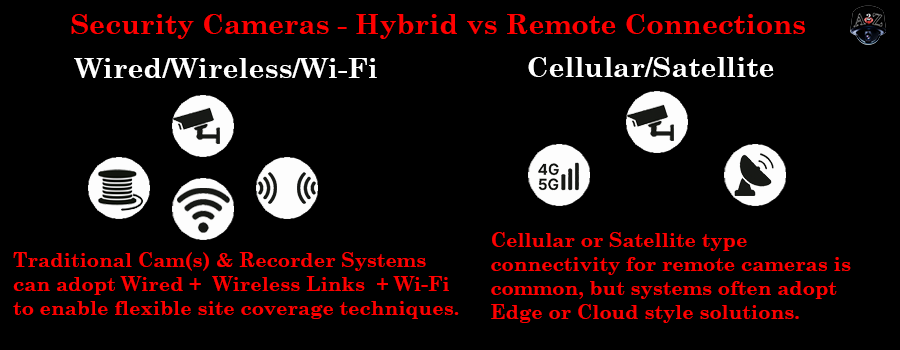

Hybrid Systems: The Best of Both Worlds
Many deployments combine wired stability for primary coverage with wireless flexibility for areas where cabling is impractical. This approach is common in commercial, government, and critical infrastructure projects including larger sites or multi-building complexes where uptime is critical but speed of deployment is also a priority.
Expert Insights
Why wired remains the backbone for most surveillance systems
In most small to large-scale systems — from home security to enterprise networks — wired connections deliver predictable performance, stable bandwidth, wider future adaptability, and long service life. For many applications, that reliability outweighs wireless flexibility when uptime and quality are key. Likewise, wired often — though not always — provides a greater variety of servicing options, such as when replacing a single camera in a multi-camera system.
Overcoming wireless interference and bandwidth challenges
Wireless can be highly effective when deployed correctly. Spectrum analysis, selecting optimal frequencies, adjusting channels, and using environment-matched antennas are proven ways to solve interference and performance issues. Understanding the specifics of any given wireless technology — along with the performance capabilities of the hardware involved — is just as important as considering the environment where it will be deployed.
Choosing the right cables for wired systems
When designing a wired surveillance network, cable quality is critical for long-term performance and reliability. Solid copper cabling outperforms copper-clad aluminum (CCA) in both voltage stability and signal integrity — especially for PoE applications. Gauge matters too; 23 AWG cable can better handle longer PoE runs than 24 AWG. Environmental factors also dictate choice: use plenum-rated cable for air-handling spaces, UV-resistant jackets for outdoor runs, and direct-burial cable for underground. In high-interference areas, shielded cable (STP) can prevent data loss. Proper termination, strain relief, and certification testing ensure the cables installed will support current and future camera requirements.
Optimizing wireless links for reliability
For wireless surveillance backhaul or remote camera connections, choosing the right frequency band and configuration is key. For example, in Wi-Fi–based technologies, the 5 GHz band often offers higher throughput for shorter ranges, while 2.4 GHz is better suited for longer distances or obstructed paths. Licensed frequencies and dedicated point-to-point (PTP) or point-to-multi-point (PTMP) links can provide higher stability and security compared to consumer-grade Wi-Fi.
Long-distance connectivity, throughput, and other performance factors can differ dramatically between types of wireless equipment. Sometimes, determining whether you can deploy a Wi-Fi or cellular-based security camera solution is as simple as using a mobile device to check for reliable signal and speeds at the intended deployment point. From consumer-grade Wi-Fi cameras to professional-grade gear, you can often find built-in tools ranging from simple signal strength indicators to full spectrum analysis functions, depending on the product.
Hybrid solutions to meet varied needs
A hybrid surveillance approach blends the stability of wired systems with the flexibility of wireless technologies, allowing organizations to optimize coverage, cost, and deployment speed. This often means using wired cameras for primary areas that require continuous, high-quality recording, while deploying wireless bridges or point-to-point links to connect remote structures or hard-to-reach zones. Cellular or satellite units can then fill in gaps for mobile, off-grid, or temporary monitoring needs.
When planned strategically, hybrids can reduce installation costs, speed up deployment timelines, and expand coverage into areas that would otherwise be impractical to wire. However, because wireless introduces many more variables than wired — such as bandwidth limits, signal interference, and equipment compatibility — careful planning is essential. Site surveys, proper frequency/channel selection, and an understanding of environmental challenges are key to ensuring reliable performance.
It’s also important to consider operational limitations. While some government agencies or large organizations have access to truly unlimited cellular bandwidth through carrier agreements, most consumers and businesses face data caps or throttling. This can significantly limit the viability of certain 4G or 5G deployments if continuous high-resolution streaming is required. In these cases, a hybrid design can help balance data usage by reserving wireless links for only the locations or situations that truly need them.
Conclusion
Wired and wireless surveillance systems each have distinct strengths and limitations. Wired remains the gold standard for reliability and scalability, while wireless offers unmatched flexibility in mobile, temporary, or hard-to-wire environments.
Choosing the right approach means understanding how each technology will function in your environment. In some cases, wireless is the backbone; in others, it’s a supporting tool. Likewise, cable quality and type directly affect the performance of wired systems.
With a working knowledge of reliability, installation, security, scalability, and maintenance, you can confidently decide whether a wired, wireless, or hybrid setup best meets your security needs.
