Vivotek FD9381-HTV 5MP H.265 IR Vandal Dome IP Camera

Write a Review
SKU:
FD9381-HTV
MPN:
FD9381-HTV
Shipping:
Calculated at Checkout
  • Vivotek FD9381-HTV H.265 5MP P-Iris IR Vandal Dome IP Camera
  • Vivotek FD9381-HTV Vandal Dome IP Camera web interface sample

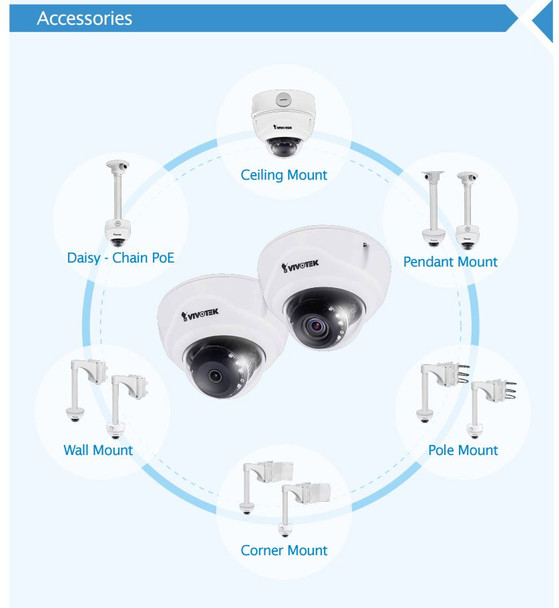

  • Vivotek FD9381-HTV Vandal Dome IP Camera Optional dome mounts

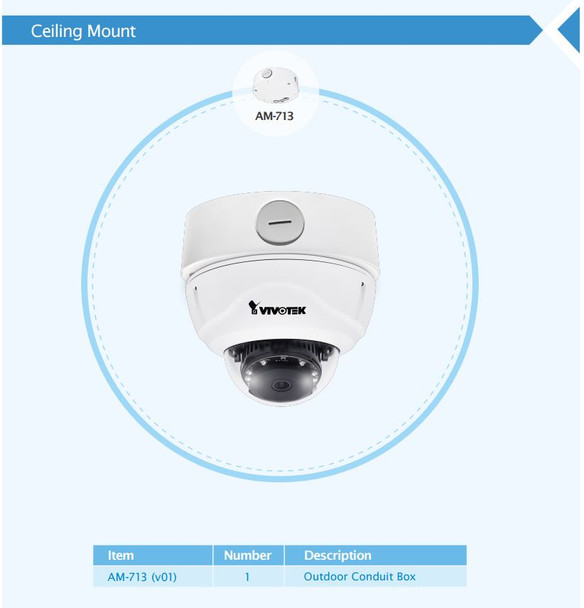

  • Vivotek FD9381-HTV Vandal Dome IP Camera conduit box

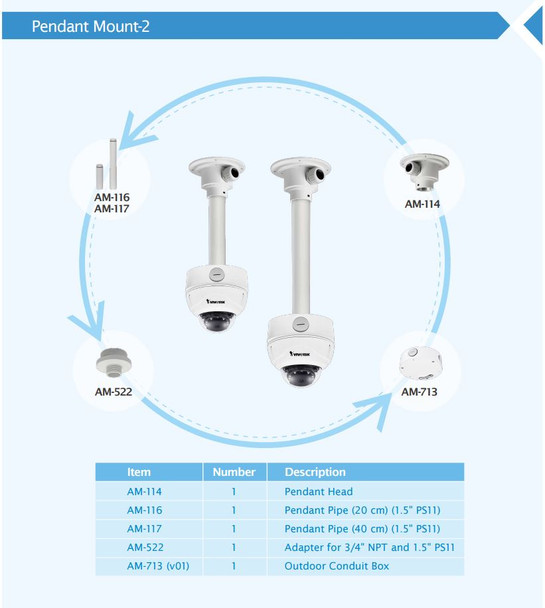

  • Vivotek FD9381-HTV Vandal Dome IP Camera pendant mounts
  • Vivotek FD9381-HTV Vandal Dome IP Camera pendant mounts
  • Vivotek FD9381-HTV Vandal Dome IP Camera wall mounts

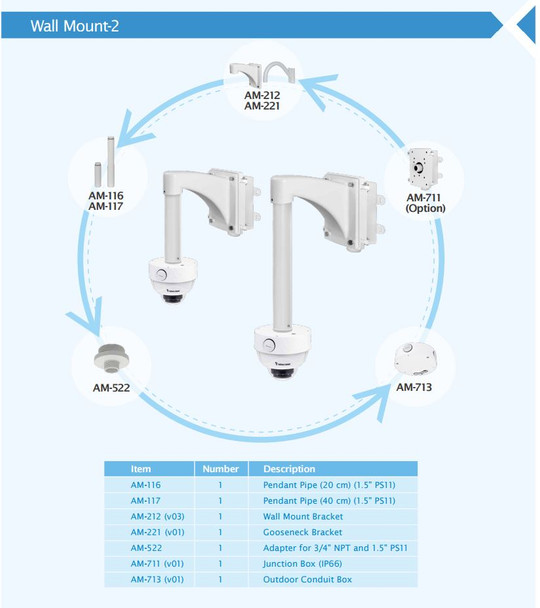

  • Vivotek FD9381-HTV Vandal Dome IP Camera more wall mounts
  • Vivotek FD9381-HTV Vandal Dome IP Camera pole mounts
  • Vivotek FD9381-HTV Vandal Dome IP Camera more pole mounts

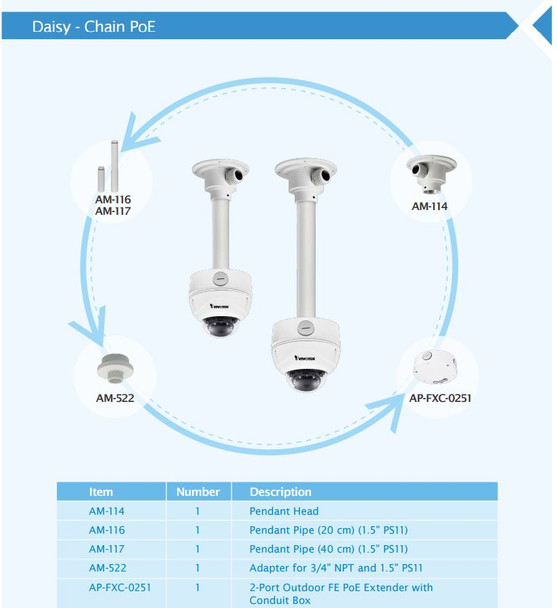

  • Vivotek FD9381-HTV Vandal Dome IP Camera daisy chain PoE mounts
  • Vivotek FD9381-HTV Vandal Dome IP Camera dimensions
  • Vivotek FD9381-HTV Vandal Dome IP Camera internal diagram
$830.00

Description

Vivotek FD9381-HTV 5MP H.265 IR Vandal Dome IP Camera is introduces significant technology advantages in all the right places for a new level of professional IP Surveillance. The device is outfitted with a 5 Megapixel Image sensor yielding up to real-time 30fps in full 5MP resolution, while even higher frame rates can be achieved like 60fps when using 1080P video stream settings. Quad Streaming including the latest H.265 compression as well as H.264 and MJPEG offer diverse video streaming abilities. The addition of Vivotek Smart Stream II paired with the new H.265 codec has shown to benefit up to 80 percent lower bandwidth or storage file sizes compared to traditional H.264. Furthermore the unit includes an assortment of image enhancements ranging from WDR Pro to SNV plus as expected is built with a powerful IR LED Illumination effective to about 90 feet. Another innovative attribute is this Vandal Proof 5MP Dome IP Camera has both Remote focus and P-Iris ensuring exceptional clarity all the time.

Constructed in compact weatherproof IP66 and vandal proof, high impact IK10 rated dome casing this unit is built to withstand extreme environments. A selection of optional mounting accessories including pendant, pole or wall mounts and more also help perfect all kinds of installation needs. The device is well developed in all regards offering Digital I/O, Two Way Audio to on-board Micro SDHC or SDXC card slot for local recording. Excellent Privacy Masking to Video Motion Detection including optional Video Analytics are all potential abilities needed in modern video security systems. Flexible and feature packed the device allows power input of 12VDC or PoE 802.3af and 802.3at standards for simplified install. Likewise Vivotek's widely supported SDK, the latest ONVIF or various other methods enable customized, end-to-end security systems with ease. Either as a stand-alone IP Surveillance solution or using Vivotek's Free VAST NVR/CMS Software the Vivotek FD9381-HTV is sure to satisfy the high performing demands.

Vivotek FD9381-HTV Vandal Dome Main Features:

  • 1/1.8" 5 MegaPixel Progressive CMOS Sensor
  • 30fps at 5MP 2560x1920, 60fps at 2MP 1920x1080
  • H.265, H.264 and MJPEG Codec options including Quad Streaming
  • Smart Stream II for Optimal Bandwidth Efficiency
  • WDR Pro (Wide Dynamic Range 100 dB) for Unparalleled Visibility in High Contrast Environments
  • SNV (Supreme Night Visibility) for Low Light Conditions
  • Vari-Focal 4mm-9mm (F1.3 ~ F2.2) P-iris Lens with Remote Focus
  • Built-in IR LED Illuminator, Effective up to 30 Meters
  • Horizontal Field of View (HFOV): 45° ~ 93°
  • Advanced Image settings: privacy masks, Scheduled profile settings, 3DNR, corridor view video rotation, defog, DIS (Digital Image Stabilization)
  • Digital I/O: 1 Alarm Input, 1 Relay output
  • Two Way Audio: Line Input, Line Output
  • Numerous IT Protocols and is ONVIF Compliant
  • Five Window Video Motion Detection
  • VAC* Video Analytics: Line Crossing, Field Detect, etc. On Request
  • Weather-proof IP66-rated housing and Vandal-proof IK10-rated metal housing
  • Safety Certifications: CE, LVD, FCC Class A, VCCI, C-Tick, UL
  • Operating Temperature: -20°C ~ 50°C (-4°F~ 122°F) (Starting Temp.: -10°C or 14°F) Humidity: 90%
  • Power Input: DC12V or IEEE 802.3af/at PoE Class 0
  • Power Maximum Draw: 12.8 W
  • Dimensions: Ø 155mm x 103mm
  • Weight: 927 grams (about 2.04 lbs.)
  • 3YR Warranty
