Samsung SRD-1640 DVR 16ch Digital Video Recorder H.264

Write a Review
SKU:
SRD-1640-500
  • SRd-1640 slim dvr samsung

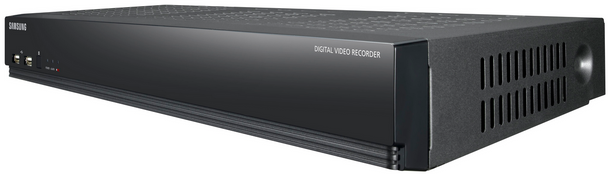

  • Samsung SRD-1640 16 channel 480fps DVR
No Longer Available - Contact Us

Description

Samsung SRD-1640 16ch DVR or Digital Video Recorder is an economic solution for professional, high quality CCTV Surveillance Systems. The unit has a slim form factor design and offers Real-time CIF recoding at 480fps across all channels or can support up to 4CIF resolution at lower frame rates. The unit includes H.264 compression, remote viewing and mobile viewing for convenient and effective security camera systems.

The Samsung SRD-1640 16 channel DVR is a Linux embedded Digital Video Recorder that is easy to use and setup. The unit support local monitoring needs with BNC main and spot monitor output as well as a VGA monitor connection. The unit also supports Audio for Two Way communication abilities, I/O alarm terminals, RS-485 for PTZ camera or systems controllers and USB functions. The Samsung DVR further allows a variety of Streaming Network protocols while multiple recording, viewing and export modes are all also supported.

Samsung SRD-1640 DVR is an all-around sleek, affordable and highly effective Digital Video Recorder for all kinds of video security applications. The nit includes support for multiple languages, is easy to use and ultra-reliable offering users a major brand name solution for their security camera system at a very attractive price.

Samsung SRD-1640 Main Features:

  • 16 Channel H.264 Linux DVR CIF 480fps Real-time
  • Video composite inputs 0.5–1 Vpp, 75ohm (auto terminating)
  • Resolution NTSC: D1/4CIF (720x480) or PAL: D1/4CIF (720x576)
  • Live Viewing:
  • Frame Rate: NTSC: 480fps or PAL: 400fps Real-time
  • Resolution NTSC: D1 (720x480) or PAL: D1 (720x576)
  • Multi-Screen Display 1/4/7/9/13/16/PIP/Sequence
  • Record Rate:
  • NTSC: Up to 120fps at D1/4CIF (704x480) or PAL: Up to 100fps at D1/4CIF (704x576)
  • NTSC: Up to 240fps at 2CIF (704x240) or PAL: Up to 200fps at 2CIF (704x288)
  • NTSC: Up to 480fps at CIF (352x240) or PAL: Up to 400fps at CIF (352x288)
  • Record Mode NTSC: Manual, Schedule (Continuous/Event), Event (Pre/Post)
  • Record PAL: Manual, Schedule (Continuous/Event), Event (Pre/Post)
  • Event Alarms: Video Loss, Motion Detection (Level 1~10), Alarm, Tampering (Level 1~3)
  • Storage overwrite Mode: Continuous
  • Pre-alarm: Up to 30 sec (5, 10, 20, 30 Sec)
  • Post-alarm: Up to 6 hour (5,10,20,30 sec,1,3,5,10,20 min,1,2,3,4,5,6 hour)
  • Search and Playback:
  • Search Mode: Date/time, Event, Back up, POS, Motion
  • Playback Function:
  • Fast Forward/Backward (x2, x4, x8, x16, x32, x64) Reverse Play I-frame only,
  • Slow Forward/Backward (x1/2, x1/4, x1/8)
  • Step Forward/Backward (x2, x4, x8, x16, x32, and x64) Reverse Play I-frame only,
  • Network:
  • Transmission Speed: CIF (120fps NTSC, 100fps PAL)
  • Bandwidth: Up to 4Mbps
  • Bandwidth control: Auto
  • Video Stream: H.264 (CIF)
  • Max. Remote Users: Search (2)/Live Unicast/Live Multicast
  • Protocol Support: TCP/IP, DHCP, PPPoE, SMTP, NTP, HTTP, DDNS, RTP, RTSP,
  • Monitoring: Net-I Viewer, Smart viewer, Webviewer
  • Smart phone support: Platform Android, iOS and Protocol Support: RTP, RTSP, HTTP, And CGI
  • Max. Remote Users Live (1)
  • Video Storage: Internal 1 SATA HDD
  • Export: USB (Back up) 2 USB Ports
  • Export File Format: (Back up) BU (DVR Player), EXE (Include Player)
  • Security Password Protection: 1 Admin, 10 Group, 10 User per 1 Group
  • Video Authentication: Watermark
  • Video Outputs:
  • VGA Connector: 1 VGA (1280x720)
  • Spot (composite) Digital spot (2CH) - Included OSD on screen, Multi-mode support (1CH)
  • Two Way Audio: Input: 16CH (Built in 4CH) Output: 1CH
  • Compression G.711, 8 KHz
  • Alarm Inputs/outputs Terminal: 16 Inputs (NO/NC) / Terminal 4 relay Outputs (NO/NC), rating: 30VDC/2A, 250VAC/0.25A
  • Remote Alarm Notification: via e-mail
  • Network Ethernet Port: 1x RJ45 10/100/1000 Base-T
  • Serial Interface RS-232/RS-485 for PTZ, Samsung System Keyboard, USB 2.0, 2 ports, e-SaTa 2 External SATA ports
  • Application Interface Supported by Mouse, Remote Controller
  • Multi-Language Support: Korean, Japanese, Chinese (Simplified / Traditional), English, French, German, Spanish, Italian, Russian, Polish, Czech, Turkish, Netherlands, Portuguese, Swedish, Danish, Thai, Romanian, Serbian, Croatian, Hungarian, Greek, Chinese, Finnish, Norwegian (25 Language)
  • PTZ Camera and Control Protocols: Samsung-T/E, Pelco-D/P, Panasonic, Phillips, AD, DIAMOND, ERNA, KALATEL, VCL TP, VICON, ELMO, GE
  • PTZ control via coaxial cable: Samsung CCVC and Pelco-C (Coaxitron))
  • Power Electrical Input Voltage: 100VAC to 240VAC ±10%; 50Hz/60Hz, Auto-ranging
  • Power consumption Max. 60 W (with 1x HDD)
  • DVR System Operating Temperature: +0°C ~ +40°C (+32°F ~ +104°F) Humidity: 20% ~ 85% RH
  • Dimension: (WxHxD) 440mm x 88mm x 246.8mm (17.32” x 3.46” x 9.72”)
  • Weight: (With hard disks) Approx. 5.2 kg (11.46 lb.)
  • Rack Mount Kit included

Models:

SRD-1640-500 16CH DVR 500GB HDD 120FPS @ 4CIF/480FPS @ CIF 4CH AUDIO
SRD-1640-1TB 16CH DVR 1TB HDD 120FPS @ 4CIF/480FPS @ CIF 4CH AUDIO
SRD-1640-2TB 16CH DVR 2TB HDD 120FPS @ 4CIF/480FPS @ CIF 4CH AUDIO
