Description
The AZP-CC13231BK595DB provides the same rugged construction as the 1000ft version but in a compact 500ft spool. Designed for CCTV and security installations, this RG59 Siamese cable combines a 20AWG solid bare copper coax conductor with 95% bare copper braided shielding and an 18/2 stranded copper power cable. The PE direct burial jacket protects against moisture and soil, ensuring dependable performance for underground or outdoor runs.

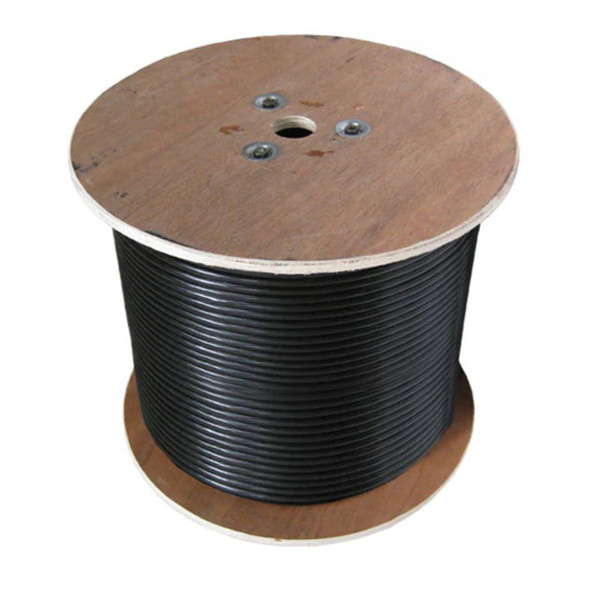

Packaged on a 500ft wooden spool, it is ETL verified and RoHS compliant, offering installers a reliable option for medium-sized surveillance projects requiring both video and power in one cable.
Key Features:
- 20AWG solid copper coax conductor
- 95% bare copper braided shield
- 18/2 stranded copper power cable integrated
- Direct burial PE jacket
- 500ft wooden spool
- ETL verified, RoHS compliant
- Ideal for CCTV and security system wiring
Technical Specifications:
- Cable Type: RG59 Siamese (video + power)
- Video Conductor: 20AWG Solid Bare Copper
- Shield: 95% Bare Copper braid
- Power Cable: 18AWG / 2 conductor stranded copper
- Jacket: PE Direct Burial, Black
- Length: 500ft Wooden Spool
- Applications: CCTV cameras, outdoor surveillance, direct burial installs
- Compliance: ETL, RoHS
