Description
The VE0602-A from Milesight offers enterprise surveillance at scale, supporting up to 32 IP cameras in a robust 2U rackmount chassis. Preloaded with Windows 10 IoT and Milesight’s advanced VMS platform, it delivers advanced recording, smart event search, and role-based management out of the box. The unit boast Advanced management of A.I. VCA (video content analysis) and ANPR (aka LPR or License Plate Recognition) to rich IoT interconnectivity. The true Server/Client architecture allows numerous benefits compared to common embedded Linux system with advantages ranging from N+M failover to enhanced live view, playback, search, E-MAP, TV wall and other functionality.
Designed for maximum uptime and performance, this NDAA-compliant unit features 4× 2.5GbE RJ-45 ports, 6 SATA HDD bays (up to 120TB raw capacity), and M.2 SSD for the OS. AI VCA and real-time hardware decoding are supported for high-definition multi-channel playback, even at 12MP. From integrated GPU to upgradeable RAM, the device is a solid choice for professional IP video security with premium features and competitive price. NDAA compliant the unit is perfect for all sorts of projects including government and enterprise demands.
✨ Key Features
- 32CH video input licenses pre-installed

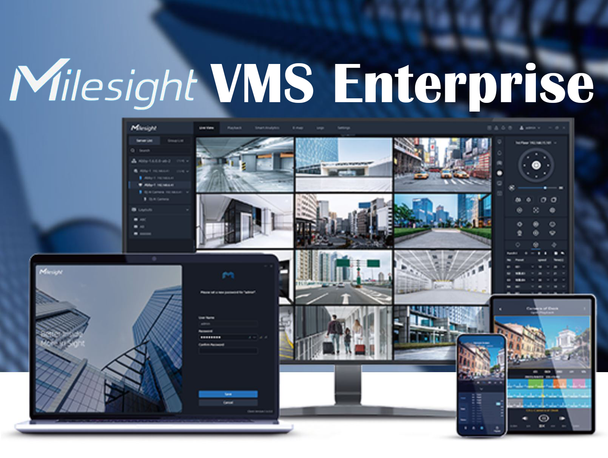

- Pre-loaded Milesight VMS Enterprise
- Advanced Client/Server Architecture
- AI Analytics, Smart Search & Playback Functions
- Intuitive Interface Designs - PC Software, Mobile Apps Included
- VMS Software Upgrades Included
- Windows 10 IoT Enterprise OS
- 640Mbps throughput
- Dual display (HDMI + DP)
- 6× SATA HDD bays, 1× M.2 SSD (256GB)
- 4× 2.5GbE ports for LAN redundancy
- Supports AI VCA and smart alarms
- USB-C, USB 2.0, USB 3.0, RS485, audio ports
- NDAA-compliant architecture
✨ Specifications Summary
Video & Decoding
- Channels: 32
- Formats: MJPEG, H.264, H.265
- Max Resolution: 12MP
- Decoding (1080P Monitor):
• D1@30fps = 32ch
• 2MP@30fps = 25ch
• 5MP@30fps = 11ch
• 12MP@20fps = 5ch
Storage
- HDD: 6× SATA bays (20TB each)
- SSD: 1× M.2 256GB (OS)
Display
- HDMI ×1, DP ×1
- Modes: Independent or Synchronous
Network
- 4× 2.5GbE LAN ports
- Up to 300 clients
- 1000 users / 100 roles
Interfaces
- USB Ports: 2× front USB 2.0, 2× rear USB 2.0, 2× USB 3.0
- PCI-E Slot: 1× PCI-E 4.0
- Audio: 1× HD Audio Connector
- RS485, COM, CPU fans, front panel I/O
System
- CPU: Intel Celeron 2.0GHz
- RAM: 2× 4GB DDR4 (expandable to 16GB)
- OS: Windows 10 IoT Enterprise
Power & Environmental
- Input Power: 100–240V AC, 50–60Hz
- Consumption: ≤30W (no HDD)
- Temp: 0°C to 35°C
- Humidity: 10%–90% RH
- Dimensions: 440mm × 420mm × 88.2mm
- Weight: 8.1kg
- Warranty: 3 Years
