Description

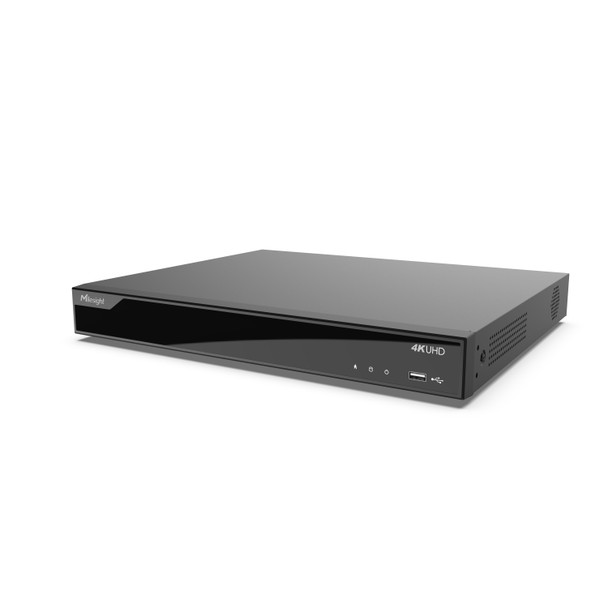

Milesight’s MS-N5016-NPE is a fully NDAA-compliant professional NVR that supports 16-channel IP surveillance with built-in 16-port PoE. Supporting H.265+ video compression and up to 20TB of total storage, it ensures efficient and scalable video management.
Boasting cutting edge features like A.I. Video Content Analysis for Milesight AI security cameras to HTML5 plug-in free web browser interface ensures optimal performance, capabilities and convenience. Milesight's CMS PC Software and Mobile Applications are also provided promising effective remote video management from anywhere while P2P support ensure easy remote connectivity to your devices.
RAID 0/1 is supported across 2 SATA bays for improved data integrity or performance. With dual monitor output, the HDMI supports 4K visuals locally and users can achieve multi-screen layouts. Meanwhile smart VCA allows intelligent playback search and LPR Camera data management is also on-board.
Ideal for institutional and business deployments, the MS-N5016-NPE combines simplicity and power in a single 1U enclosure, streamlining both installation and operation. For single site or multi-site, even multi-system deployments the Milesight 5000 series Network Video Recorders allow entities to easily expand or adapt system capacity in a simplified, reliable and cost effective manner.
✨ Key Features
- 16CH IP input with built-in 16-port PoE
- NDAA-compliant architecture
- Dual Monitor w/1x HDMI 4K video output
- Dual SATA (RAID 0/1) with up to 20TB storage
- H.265+/H.264+ support
- HTML5 H.265 Streaming
- AI LPR Management
- Smart VCA event search & playback
- ANR edge recording
- USB 3.0/2.0, alarm I/O, RS485
- Fan-cooled metal chassis
- Embedded Linux OS
✨ Specifications Summary
System
- OS: Embedded Linux
- Video Input: 16 IP Cameras
- Bandwidth: 80Mbps incoming
Video & Display
- HDMI Output: 1× HDMI 4K
- VGA Output: 1x VGA up to 1080p
- Display Modes: 1/4/8/9/16 split
- OSD Overlay: Camera name, status
Recording & Playback
- Modes: Manual, Schedule, Event
- RAID: 0/1
- Simultaneous Playback: 16CH
Storage
- HDD: 2× SATA, up to 20TB
- ANR Support: Yes
Network & Protocols
- Ethernet: 1× RJ45 + 16 PoE ports
- ONVIF: S, G, T
- Protocols: HTTPS, TCP/IP, FTP, NTP, P2P, HTML5, etc.
Audio
- Codecs: G.711, AAC, etc.

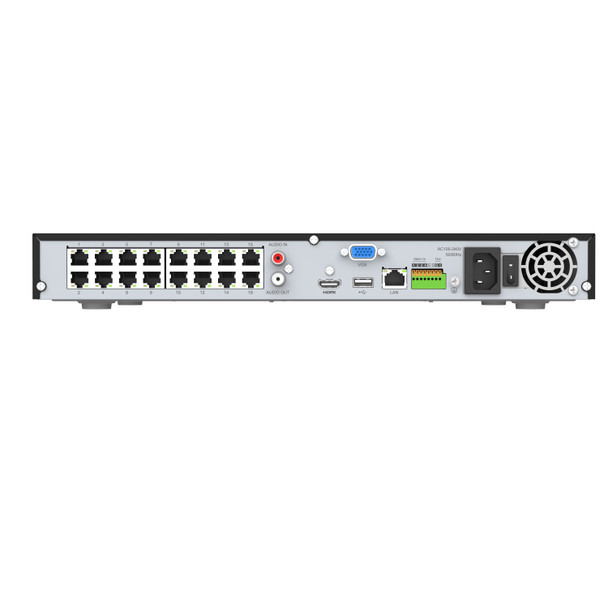

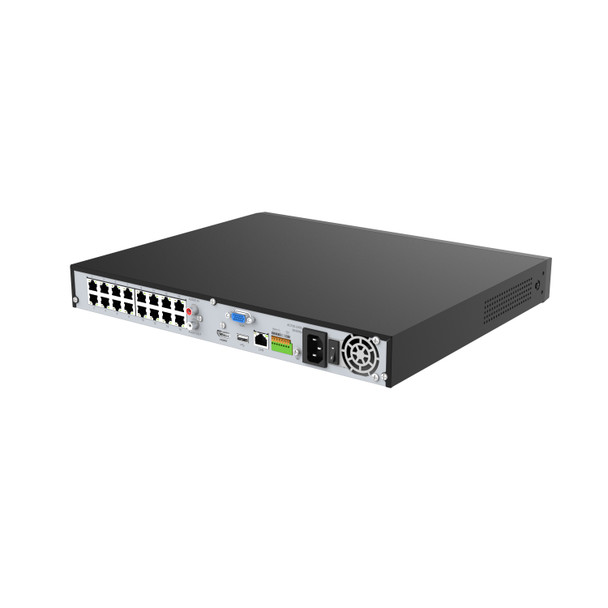

Interface & Ports
- USB: 1× USB 3.0, 1× USB 2.0
- Alarm I/O: 4 in / 1 out
- RS485: 1 port
Mechanical
- Size: ~300mm × 248mm × 50mm
- Build: 1U metal
Power & Environmental
- Max PoE Output: ~150W
- Operating Temp: -10°C ~ +55°C
- Humidity: 10–90% RH
