Milesight MS-C8165-PE 4K AI 180° Panoramic Mini IR Bullet IP Security Cameras

Milesight MS-C8165-PE 4K AI 180° Panoramic Mini IR Bullet Network Security Cameras are a superior choice for achieving maximum coverage in high detail. The units are well equipped for around the clock IP surveillance boasting 4K Ultra HD resolution with true day/night operation and add-ons like WDR and IR Night Vision for absolute imaging. Across the board these devices grant cutting edge technology advances ranging from the latest video compression methods to a built-in Microphone with similar high-quality codecs for superior results. The units are built to support multi-web browser plug-in free use including full function operation and offer a micro-SD card slot enabling stand-alone applications. The additions like ONVIF compliance among other IT protocols promise a wide range of 3rd party system integration. Their rugged build including weatherproof and vandalproof construction likewise ensure a reliable solution even in harsh outdoor environments. Milesight MS-C8165-PE 4K AI 180° Panoramic IR Bullet Security Cameras have plenty more to offer only further proving their best-in-class status.

Milesight MS-C8165-PE Main Features:

• 1/2.8" 4K / 8 Megapixel Panoramic View at 20fps high frame rate

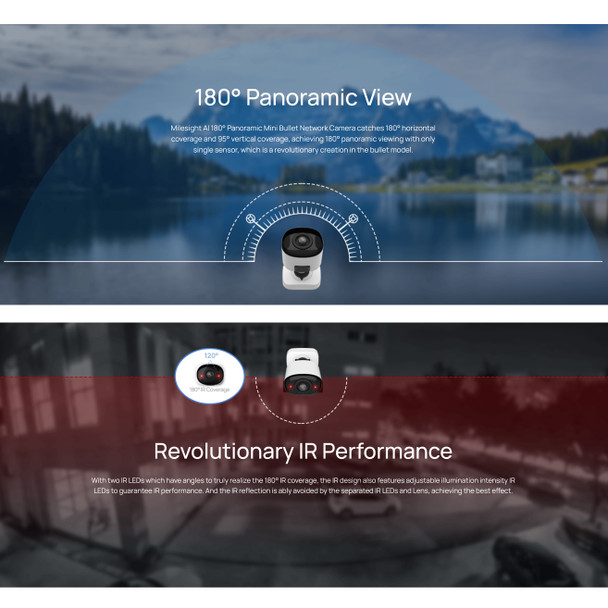

• Panoramic Fixed lens: 1.68mm @ F2.0 for HFOV 180° / VFOV 86°
• Panoramic IR Night Vision 15m
• Color: 0.012 Lux @F2.0 / B/W: 0 Lux IR ON
• Super WDR 120dB
• A.I. (Artificial Intelligence) Vehicle/Human Detection
• 3-Axis Camera Orientation
• ONVIF for 3rd Party Security Systems
• Micro SD Card Support
• Built-in Microphone
• White Housing

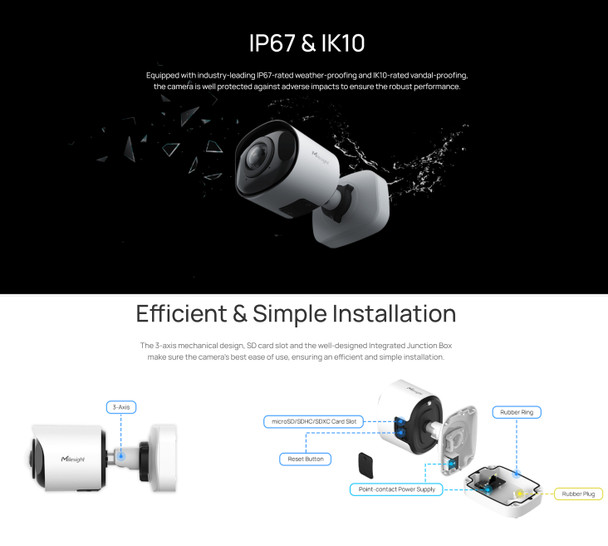

• Weatherproof up to IP67 rating
• Vandalproof High Impact IK10 rating
• Integrated Junction Box
• PoE OR 12VDC Power Support

Milesight MS-C8165-PE Specifications:

4K NDAA AI 180° Panoramic Mini Bullet Network Camera
Image Sensor 1/2.8" Progressive Scan CMOS
Min. Illumination Color: 0.01Lux @F1.2, Color: 0.012Lux @F2.0, B/W: 0Lux with IR on
WDR 120dB Super Wide Dynamic Range
Fixed Lens: 1.68mm @F2.0
Lens Mount: M12
Field of View: HFOV 180°/ VFOV 86°
Shutter Time: 1/100000s~1s
Day/Night Modes: Day/Night/Auto/Customize/Schedule
IR Night Vision 180° with IR Illumination Up to 15m
S/N >55dB
Video Max. Image Resolution: 3840x2160 (4K Original)
Primary Stream:
60Hz: 25fps@(3840x2160), 30fps@ (3456x1936, 3200x1800, 2880x1624, 2560x1440, 1920x1080, 1280x720)
50Hz: 25fps@(3840x2160), 25fps@ (3456x1936, 3200x1800, 2880x1624, 2560x1440, 1920x1080, 1280x720)
Secondary Stream:
60Hz: 30fps@ (704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@ (704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream:
60Hz: 30fps@ (1280x720, 704x576, 640x480, 640x360,352x288, 320x240)
50Hz: 25fps@ (1280x720, 704x576, 640x480, 640x360,352x288, 320x240)
Video Compression: H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate: 16Kbps~16Mbps (CBR/VBR adjustable)
Privacy Masking: Up to 24 areas
ROI: Up to 8 areas
Image Settings: Saturation/Brightness/Contrast/Sharpness
Web Browser Access Support: IE/Firefox/Chrome/Safari Browser
Interface Ethernet: 1*RJ45 10M/100M Ethernet Port
Audio Interface: Built-in Microphone
Network Storage: NAS (Support NFS, SMB/CIFS), ANR
Network Protocols: IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio Compression: G.711/AAC/G.722/G.726
Audio Sampling Rate: 8/16/32/44.1/48KHz
Audio Bit Rate: 16~256kbps
Two-way Audio: N/A
Intelligent Analytics / Video Analysis: Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
People Counting & Report: Count the number of people entering or exiting, up to 4 detection areas for regional people counting
Edge Storage Support: microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function: Heat Map, BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support: Yes, Voice & Video-over-IP
Event Trigger: Motion Detection, Network Disconnection, Audio Alarm, etc.
Event Action: FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
System Compatibility: ONVIF Profile G & Q & S & T, API
General Working Temperature: -40° ~ 60° C
Working Humidity: 0~90%(Non-condensing)
Power Supply: PoE(802.3af)/DC 12V±10%
Power Consumption: 6W MAX, 9W MAX (With IR on)
Weather Proof Up to IP67-rated for Weather-resistant Performance
Housing Vandal-proof IK10-rated metal housing
Dimensions: 95.8mmX74mmX158.5mm
Weight: 630g
Warranty: 3 Years (5 Year option)
