Milesight MS-C8164-UPD AI 4K Mini Vandal 24hr Color Bullet IP Camera

Milesight MS-C8164-UPD AI 4K Mini Vandal Color Bullet IP Camera delivers stunning ultra-HD video surveillance with 24-hour color imaging thanks to ultra-low light performance and built-in White light LED array. The device delivers real-time 4K (8-megapixel) UHD video for superb detail while a fixed 2.8mm lens achieves super wide area coverage. From image enhancements like true WDR to Real-time full UHD with cutting-edge compression methods like H.265, users will find diverse video capabilities at full professional levels. The Milesight AI 4K 24/7 Color Bullet IP Camera further supports vast 3rd party system integration including protocols like ONVIF for video security or SIP for IP phones and VoIP applications. Alternatively, the Milesight MS-C8164-UPD White Light 4K Color Bullet IP Camera yields smart, full operation even all on its own, boasting A.I. Video analytics to large capacity on-board edge storage.

The Milesight MS-C8164-UPD is compact, vandalproof IK10 tough and IP67 weatherproof and more all at an affordable cost. From flexible positioning to simple single cable PoE install or its rich, yet easy operation via a full function, plug-in free web browser interface the security camera provides professional IP surveillance with satisfying results. The model ending with a "J" includes compact junction box for high quality integration, protecting cable connections and providing clean appearance. Experience high-grade video security with smart functions, compact size and competitive cost.

Milesight MS-C8164-UPD Main Features:

• 3840x2160 (4K Ultra HD) @ 30fps Real-Time
• Fixed Lens 2.8mm (4mm or 6mm special order)
• 2.8mm Field of View: HFOV 108° DFOV 125° VFOV 60°
• Color: 0.005 Lux @ F1.0 / B/W: 0 Lux White LED On
• 120dB Super WDR
• up to 30m White Light Illumination with Smart On/Off
• A.I. (Artificial Intelligence) Vehicle/Human Detection
• ONVIF for universal 3rd party camera system support
• High-capacity on-board micro-SD slot edge storage
• IP67 High Weatherproof resistant
• IK10 High Impact Vandalproof

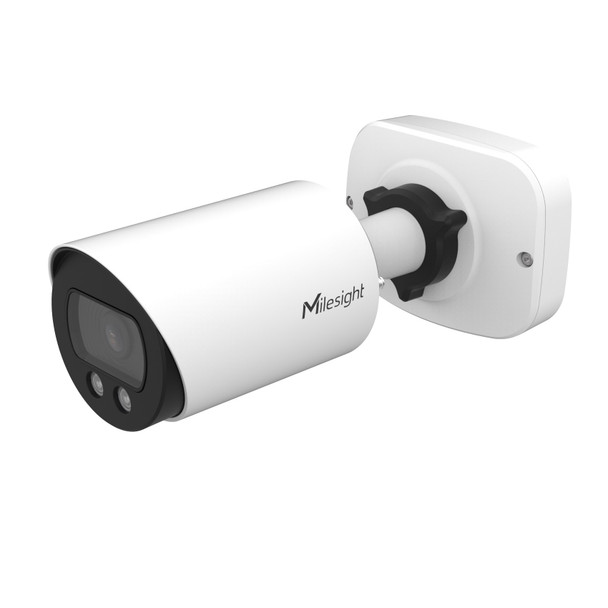

• Pre-assembled Junction Box (optional special-order MS-C8164-PDJ)
• Adapter Plate for Junction Box versions (optional special order A64)
• PoE (Power Over Ethernet)
• NDAA Compliant

Specifications:

Camera
Image Sensor: 1/2.8″ Progressive Scan CMOS
Min. Illumination: Color: 0.005 Lux@F1.0 / 0 Lux with White LED on
WDR: 120dB Super WDR
Lens: 2.8mm/4mm@F1.0
Mount: M12
Field of View:
H108°/D125°/V60°(2.8mm)
H87°/D101°/V49°(4mm)
Shutter Time: 1/100000s~1s
Illumination Distance: Up to 30m
S/N >55dB

Video
Max. Image Resolution: 3840x2160 (4K Ultra HD)
Primary Stream
60Hz/50Hz: 30fps@ (3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream
60Hz: 30fps@ (704x576, 640x480, 640x360, 352x288)
50Hz: 25fps@ (704x576, 640x480, 640x360, 352x288)
Tertiary Stream
60Hz: 30fps@ (1280x720, 704x576, 640x480, 640x360, 352x288)
50Hz: 25fps@ (1280x720, 704x576, 640x480, 640x360, 352x288)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps~16Mbps (CBR/VBR Adjustable)
Privacy Masking Up to 4 areas
ROI Up to 8 areas
Image Setting: Brightness/Contrast/Saturation/Sharpness

Interface
Ethernet: 1*RJ45 10M/100M Ethernet Port

Network
Network Storage: NAS (Support NFS, SMB/CIFS), ANR
Protocol: IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2
Intelligent Analytics:
Video Analysis: Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection,
Line Crossing, Loitering, Object Left, Object Removed
People Counting & Report: Count the number of people entering or exiting

System
Storage Support: microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced Function: BLC, HLC, 2D DNR, 3D DNR, Defog, AWB,
IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur
SIP/VoIP Support: Yes, Voice & Video-over-IP
Event Trigger: Motion Detection, Network Disconnection, etc.
Event Action: FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
System Compatibility: ONVIF Profile G & Q & S & T, API

General
Working Temperature -40°C~60°C
Working Humidity: 0~90%(Non-condensing)
Power Supply: PoE (802.3af)
Power Consumption:
4W MAX
6W MAX (With White LED on)
Weather Proof: Up to IP67-rated for Weather-resistant Performance
Housing: Vandal-proof IK10-rated Metal Housing
Weight: 610g (Junction Box Version) / 450g (Cable Out Version)
Dimensions: 97mmX74mmX180mm (Junction Box Version) / 64mmX64mmX160mm (Cable Out Version)
Warranty: 3/5 Years
