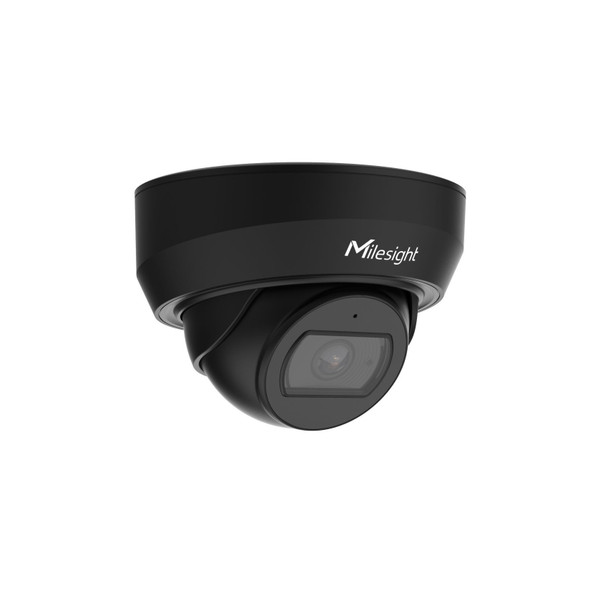

Milesight MS-C5375-PD 5MP AI Mini Vandal IR Turret IP Security Cameras

Milesight MS-C5375-PD 5MP NDAA AI Mini Turret Network Security Cameras grant a full range of the latest desirable surveillance technology advantages. Aside from super HD 5-megapixel detail and unfailing IR Night Vision or cutting-edge video compressions and a built-in Mic these units offer outstanding design attributes on every level for next generation video security. The Milesight MS-C5375-PD AI Mini Turret IP Cameras are weatherproof and vandalproof plus feature a 3-axis camera gimbal allowing easy orientation on nearly any surface angle while a fixed wide lens (default) provides superb area coverage. Users also benefit from modern A.I. detection methods and a wide set of ONVIF formats for integration with new or existing 3rd party camera systems. Milesight MS-C5375-PD-J includes a built-in junction box for cleaner installation.



Milesight MS-C5375-PD Main Features:



Milesight MS-C5375-PD



5MP NDAA AI Weather-proof Mini Turret Network Camera

Image Sensor: 1/2.8" Progressive Scan CMOS

Min. Illumination Color: 0.005 Lux @ F1.2, Color: 0.008Lux @ F1.6, B/W: 0 Lux with IR on

WDR 120dB Super Wide Dynamic Range

Lens: 2.8mm (Default) 4mm or 6mm (special order) @F1.6

Field of View: HFOV 105°/ DFOV 131°/ VFOV 78°(2.8mm)

               HFOV 86°/ DFOV 108°/ VFOV 63°(4mm)

Shutter Time: 1/100000s~1s

Day/Night Modes: Day/Night/Auto/Customize/Schedule

IR Night Vision: Up to 30m

S/N: >55dB

Video Max. Image Resolution: 5 Megapixel 2592 x 1944

Frame Rates Per Stream:

Main Stream:

60Hz: 30fps @ (2592x1944, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)

50Hz: 25fps @ (2592x1944, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)

Secondary Stream:

60Hz: 30fps @ (704x576, 640x480, 640x360, 352x288)

50Hz: 25fps @ (704x576, 640x480, 640x360, 352x288)

Tertiary Stream:

60Hz: 30fps @ (1280x720, 704x576, 640x480, 640x360, 352x288)

50Hz: 25fps @ (1280x720, 704x576, 640x480, 640x360, 352x288)

Video Compressions: H.265+/H.265(HEVC)/H.264+/H.264/MJPEG

Video Bit Rate: 16Kbps~16Mbps (CBR/VBR adjustable)

Privacy Masking: Up to 4 areas

ROI: Up to 8 areas

Image Settings: Saturation/Brightness/Contrast/Sharpness

Interface Ethernet: 1*RJ45 10M/100M Ethernet Port

Audio Interface: Built-in Microphone

Audio Compression: G.711/AAC/G.722/G.726

Audio Sampling Rate: 8/16/32/48KHz

Audio Bit Rate: 16~256kbps

Network Storage: NAS (Support NFS, SMB/CIFS), ANR

Network Protocols: IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL

Intelligent Analytics

Video Analysis: Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed

People Counting & Report: Count the number of people entering or exiting

System

Storage Support microSD/SDHC/SDXC Card Local Storage, up to 1TB

Advanced Function: BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur

SIP/VoIP Support: Yes, Voice & Video-over-IP

Event Trigger: Motion Detection, Network Disconnection, etc.

Event Action: FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.

System Compatibility: ONVIF Profile G & S & T, API

General Working Temperature -40°~60°C

Working Humidity: 0~90%(Non-condensing)

Power Supply: PoE(802.3af)

Power Consumption: 3.8W MAX, 5.8W MAX (With IR on)

Weather Proof: Up to IP67-rated for weather-resistant performance

Housing Vandal-proof: IK10-rated metal housing

Weight: 600g (Junction Box Version) / 400g (Cable Out Version)

Dimensions: 108mm X 96.5mm (Junction Box Version) / 106mm X 76.5mm (Cable Out Version)

Warranty: 3 Years (5 Year Option)
