Description
The XRN-6420RB2 from Hanwha Vision is a top-tier RAID-capable 64CH NVR engineered for large-scale enterprise surveillance. Equipped with RAID-5/6 support and eight hot-swappable drive bays, it supports a total of 80TB in high-reliability storage. It records resolutions up to 32MP across 64 channels with a total throughput of 520Mbps.
Designed for performance and scalability, this model includes dual HDMI outputs for local 4K and HD display, AI camera integration, fisheye dewarping, and multi-layout viewing. Full failover redundancy, iSCSI support, and comprehensive system security (TPM, TLS, signed firmware) ensure uninterrupted operations in critical environments.
Ideal for stadiums, airports, smart cities, and critical infrastructure, the XRN-6420RB2 is fully NDAA compliant and supports all Hanwha IP Cameras and 3rd-party security camera integrations.
✨ Key Features:
- 64CH IP input, up to 32MP resolution
- 8 hot-swappable SATA HDD bays (up to 80TB total)
- Built-in RAID-5/6 for storage protection
- Dual HDMI output for 4K and Full HD video
- 520Mbps recording bandwidth
- AI search support with Hanwha AI cameras
- NDAA compliant with TPM, TLS, and secure boot
- Remote video backup and failover (N+1)

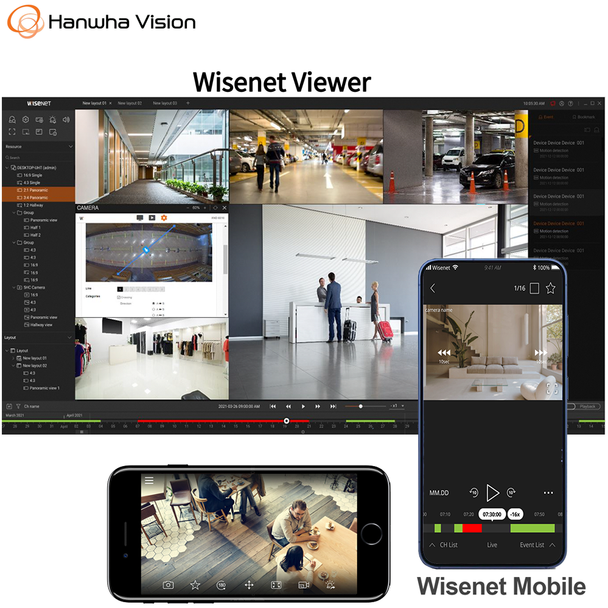

- Web/mobile/SSM/Wisenet Viewer support
- Embedded Linux OS and fan cooling
✅ Specifications Summary:
✨ Video & Display:
- Max Inputs: 64CH, Resolution: 32MP ~ CIF
- HDMI1: 3840x2160 @ 30Hz, HDMI2: 1920x1080 @ 60Hz
- Multi-Screen: Expand HDMI1 (up to 36 divisions), HDMI2 (up to 32)
- Virtual Channel View, Clone Mode, Dynamic Layout
✨ Recording & Playback:
- Compression: H.265, H.264, MJPEG
- Recording Bandwidth: Up to 520 Mbps (Distributed), 300 Mbps (Normal), 520 Mbps (RAID)
- Resolution: Up to 32MP
- Recording Modes: Normal, Dual Stream, Schedule, Event, Bookmark
- Playback Bandwidth: Up to 200Mbps (64CH)
- Simultaneous Playback: Max 112CH
- Fisheye Dewarping: 1CH local
- Playback Controls: Fast/Slow Forward, Backward, Step Navigation
⚖️ Storage:
- Internal: 8x SATA (Up to 10TB each, Max 80TB)
- RAID: RAID-5/6 (Array of 8)
- External: iSCSI
- Backup: SEC/AVI/JPG/PNG (local/network), Up to 16CH
↔️ Network & Protocols:
- Protocols: IPv4/6, TCP/IP, RTP, RTSP, SNMP, HTTPS, DHCP, ONVIF (Profile S), SUNAPI
- Max Bandwidth: 520Mbps
- DDNS: Hanwha DDNS
- Interfaces: 3x RJ-45 (1Gbps)
⚡ Audio:
- Input: 64CH Network
- Output: 1EA (3.5mm jack)
- Codec: G.711, G.726, AAC
- 2-Way Audio Support
⚠️ System / Security:
- OS: Embedded Linux
- User Access: Max 4 users
- Authentication: 802.1x, TLS, TPM, Signed Firmware
- Redundancy: N+1 Failover, ARB Support
- Logs: Up to 100,000 entries
✨ Interface & Ports:
- USB: 2x USB 2.0 (front), 2x USB 3.0 (rear)
- HDMI: 2EA
- Audio Out: 1EA
- Alarm I/O: 8 In / 4 Out
- Serial: Supported (SPC-2000/2001)
⚡ Power, Environmental, Mechanical:
- Power: 100–240V AC, 50/60Hz, Max 162W
- Operating Temp: 0°C to 40°C
- Humidity: 20% to 85%
- Dimensions: 438 x 86 x 434.9 mm
- Weight: 8.8kg (excl. HDD)
