Description
The Hanwha Vision XRN-3220B2 is a powerful and scalable 32-channel network video recorder engineered for modern IP surveillance systems. Featuring a 12th generation Intel® processor and embedded Linux OS, this NVR supports high-resolution input up to 32MP (8K) per security camera stream and delivers recording bandwidth of up to 520Mbps, ensuring ultra-reliable video capture and transmission even in demanding environments.
With support for 8 SATA HDDs offering up to 10TB capacity each, the Hanwha XRN-3220B2 NVR provides up to 80TB of maximum storage, ideal for long-term retention in enterprise and critical infrastructure applications. Its dual HDMI outputs support simultaneous 4K and 1080p local display, with flexible layout modes including virtual channel view, clone, and expand displays.

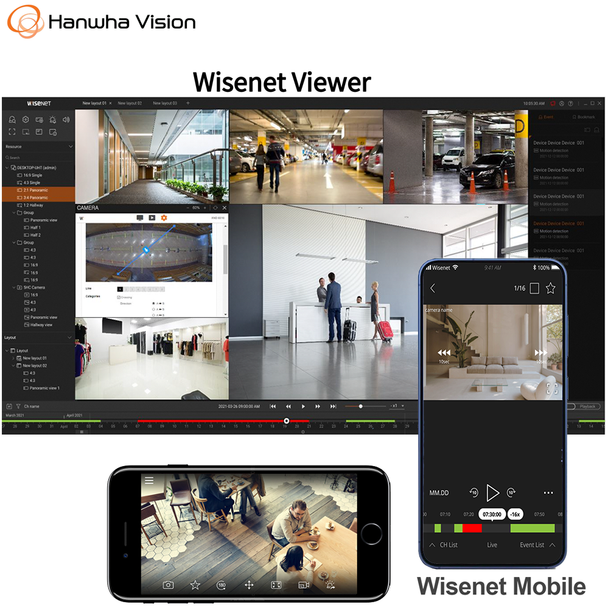

Designed for seamless compatibility with Wisenet Viewer, mobile apps, and third-party VMS via SUNAPI and ONVIF protocols, the unit also supports advanced AI search functions with Hanwha AI cameras, fisheye dewarping, and multi-channel playback. Security features like TLS encryption, TPM, 802.1x, IP filtering, and signed firmware ensure NDAA compliance and system integrity.
The XRN-3220B2 is the ideal foundation for scalable, high-performance IP surveillance deployments where performance, security, and integration are essential.
✨ Key Features:
- 32 IP camera channels, up to 32MP resolution
- Up to 520Mbps recording/transmission bandwidth
- Dual HDMI outputs: 4K (HDMI1) and Full HD (HDMI2)
- 8 SATA HDD bays, up to 10TB each (80TB total)
- Fisheye dewarping and multi-screen dynamic layout
- Compatible with Hanwha AI search, Wisenet Viewer, SSM, Webviewer, mobile
- Secure access with IP filtering, TPM, TLS, and signed firmware
- 2-way audio and multiple alarm/event triggers
- NDAA compliant and failover support (N+1)
- Embedded Linux OS, up to 4 users simultaneously
✅ Specifications Summary:
Video & Display:
- Inputs: Max. 32CH
- Supported Resolutions: CIF ~ 32MP
- HDMI Outputs: HDMI1 (3840x2160 @ 30Hz), HDMI2 (1920x1080 @ 60Hz)
- Layouts: Clone Mode (up to 64 div), Expand Mode (HDMI1: 32, HDMI2: 16), Dynamic, Virtual Channel View
Recording & Playback:
- Compression: H.265, H.264, MJPEG
- Recording Bandwidth: Up to 520 Mbps (Distributed), 300 Mbps (Normal)
- Playback Bandwidth: Up to 200 Mbps (32CH simultaneous)
- Modes: Normal, Dual Stream, Schedule, Event (Pre/Post), Bookmark
- Search Modes: Time, Event, Text, ARB, Bookmark, Smart Search
Storage:
- HDD Bays: 8 SATA bays (up to 10TB per drive, max 80TB)
- External: iSCSI storage supported
Network & Protocols:
- Protocols: IPv4/6, TCP/IP, UDP/IP, RTP, RTSP, RTCP, NTP, HTTP, HTTPS, DHCP, SMTP, FTP, SNMP, ONVIF (Profile-S), SUNAPI
- Transmission Bandwidth: Max. 520 Mbps
- Ethernet Ports: 3 x RJ-45 (1Gbps)
Audio:
- Channels: 32CH network audio
- Codecs: G.711, G.726, AAC (16/48KHz)
- Communication: 2-way audio
System & Security:
- OS: Embedded Linux
- Failover: N+1 redundancy
- Security: TPM, TLS encryption, 802.1x, IP filtering, signed firmware
- Max Users: 4 (1 local, 3 remote)
Interface & Controls:
- USB Ports: 2 x USB 2.0 (front), 2 x USB 3.0 (rear)
- HDMI Ports: 2 (1x 4K, 1x Full HD)
- Audio Out: 1 x 3.5mm jack
- Alarm I/O: 8 In, 4 Out
- Indicators: HDD, Alarm, Power, Record, Backup, Network
Power, Environment, Mechanical:
- Power Input: 100 ~ 240 VAC ±10%, 50/60 Hz, 1.5A
- Max Power Consumption: 143W (8 HDDs)
- Operating Temp: 0°C to +40°C (32°F to 104°F)
- Operating Humidity: 20% ~ 85% RH
- Dimensions: 438 x 86 x 434.9 mm
- Weight: 7.3Kg (16.1 lb without HDD)
- Material: Black metal housing
