Description
The Hanwha Vision XRN-6420DB4 is a robust 64-channel NVR engineered for intensive surveillance environments. Designed with a 12th Gen Intel® processor and advanced AI features, this system supports security camera resolutions up to 32MP (8K) and up to 520Mbps total bandwidth. Its dynamic dual-display outputs and scalable virtual channel views enhance real-time monitoring capabilities.

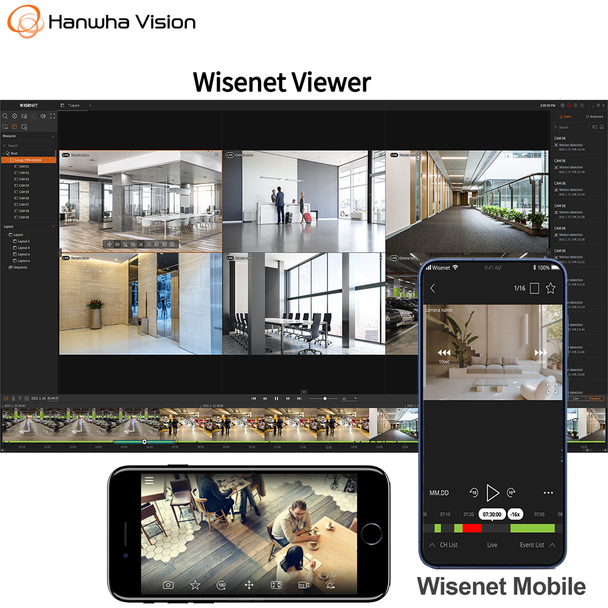

With 16 hot-swappable SATA bays supporting up to 160TB total capacity, and full RAID-5/6 protection, this unit is ideal for projects requiring both storage and data redundancy. The XRN-6420DB4 integrates seamlessly with Wisenet Viewer, SSM, Webviewer, and mobile apps, making it highly adaptable for commercial and enterprise IP surveillance needs.
TPM encryption, TLS protocol, N+1 failover, and signed firmware ensure data protection and operational stability. AI camera compatibility allows object attribute searches, optimizing forensic investigation workflows.
✨ Key Features:
- 64CH input with resolution up to 32MP (8K)
- Up to 520Mbps recording/transmission
- Dual HDMI outputs: 4K (3840x2160) & FHD
- 16 SATA HDD bays (up to 160TB)
- RAID-5/6 support with hot-swap drives
- AI Search via object attribute metadata
- Failover N+1 and ARB redundancy
- Dual SMPS for electrical reliability
- Secure OS with TPM and signed firmware
- Easy QR-based remote setup (P2P)
✅ Specifications Summary:
✨ Video & Display:
- Inputs: 64CH, up to 32MP
- HDMI 1: 3840x2160 (30Hz), HDMI 2: 1920x1080 (60Hz)
- Layouts: HDMI1 (up to 36 divisions), HDMI2 (up to 32)
✨ Recording & Playback:
- Codecs: H.265, H.264, MJPEG
- Bandwidth: Up to 520Mbps
- Modes: Normal, Dual Stream, Schedule, Event, Bookmark
- Playback: 112CH total (64CH local + 16CH/user remote)
- Smart Search, Event, Bookmark, ARB, Dewarping
⚖️ Storage:
- HDD: 16x SATA, Max. 160TB
- RAID-5/6 (Array Size: 8 HDDs x 2)
- Backup: AVI/PNG network, Recorder/SEC/AVI/JPG local
↔️ Network & Protocols:
- Protocols: ONVIF, SUNAPI, IPv4/6, HTTPS, SNMP, uPnP
- Bandwidth: Max 520Mbps
- Ports: 3x RJ-45 (1Gbps), 8 In / 4 Out Alarm IO
⚡ Audio:
- Input: 64CH via network
- Codecs: G.711, G.726, AAC
- 2-Way Audio: Yes
⚠️ System / Security:
- OS: Embedded Linux
- Max Users: 4
- Logs: 100,000 system/event logs
- Security: Signed firmware, TPM, 802.1x, TLS
✨ Interface & Ports:
- USB: 2x USB 2.0 (Front), 2x USB 3.0 (Rear)
- Audio Out: 1x 3.5mm
- HDMI: 2 outputs (4K/FHD)
- Alarm: 8 In, 4 Out
⚡ Power, Environmental, Mechanical:
- Power: Dual SMPS, 100~240 VAC ±10%, 2.7A
- Max Power: 265W
- Operating Temp: 0°C to +40°C
- Size: 440 x 132 x 571.1 mm
- Weight: Approx. 15.1 kg
