Description
The XRN-6420B2 delivers superior IP surveillance capabilities with support for 64 channels and video input up to 32MP resolution. With a 12th Gen Intel® processor and embedded Linux OS, this system offers excellent throughput with up to 520Mbps recording bandwidth.
It includes 8 SATA bays that support up to 10TB each for a maximum of 80TB of storage, along with dual HDMI outputs for 4K and Full HD display monitoring. The NVR supports fisheye dewarping, AI-based object attribute search (with compatible cameras), and multi-channel live and recorded video display.
Security is reinforced with TPM, TLS, and signed firmware, while system flexibility is enhanced via SSM, WebViewer, and mobile app support. Ideal for medium-to-large scale commercial video security systems.
✨ Key Features:
- 64 IP channel input, up to 32MP resolution
- 8 SATA bays, 10TB each (up to 80TB total)
- Dual HDMI outputs (4K + 1080p)
- 520Mbps throughput, 200Mbps playback
- Compatible with Hanwha AI cameras
- AI search, fisheye dewarping, remote backup
- Embedded Linux, NDAA compliant
- TLS, TPM, signed firmware, 802.1x security
- USB 3.0/2.0 ports for export/control
- Failover N+1 and iSCSI storage option
✅ Specifications Summary:
✨ Video & Display:
- Max Network Inputs: 64CH
- Max Resolution: 32MP ~ CIF
- HDMI Outputs: HDMI1 (3840x2160 @ 30Hz), HDMI2 (1920x1080 @ 60Hz)
- Display Modes: Dynamic layout, Virtual channel view, Clone Mode (up to 64 divisions)
- Expand Mode: HDMI1 up to 36 div., HDMI2 up to 32 div.
- Supported Web Views: 1/2H/2V/3V/4/6/8/9 layouts
✨ Recording & Playback:
- Compression: H.265, H.264, MJPEG
- Recording Bandwidth: Up to 520 Mbps (Distributed), 300 Mbps (Normal)
- Recording Modes: Normal, Dual Stream, Schedule (Continuous/Event), Event (Pre/Post), Bookmark
- Playback Bandwidth: Up to 200 Mbps (64CH)
- Simultaneous Playback: Max 112CH (Local 64CH, Remote 16CH/user)
- Dewarping: Local 1CH fisheye dewarping
- Playback Modes: Time, Event, Text, ARB, Bookmark, Smart search
- Playback Control: Fast/Slow Forward & Backward, Step Forward/Back
⚖️ Storage:
- HDD Support: 8x SATA bays, up to 10TB each (80TB max)
- External Storage: iSCSI
- Backup Options: Recorder/SEC/AVI/JPG (Local), AVI/PNG (Network)
- Multi-channel Playback: Up to 16CH
↔️ Network & Protocols:
- Protocols: IPv4/6, TCP/IP, UDP/IP, RTP (UDP/TCP), RTSP, RTCP, HTTP, DHCP (Server/Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF Profile S, SUNAPI (Server/Client)
- Max Bandwidth: 520 Mbps
- DDNS: Hanwha DDNS
- Ethernet Ports: 3x RJ-45 (LAN/WAN, 1Gbps)
⚡ Audio:
- Inputs: 64CH network
- Output: 1CH (3.5mm jack)
- Codecs: G.711, G.726, AAC (16/48KHz)
- Audio Communication: 2-way
- Max Remote Audio Users: Search (3), Live Unicast (10), Multicast (20)
⚠️ System / Security:
- Operating System: Embedded Linux
- Max Users: 4 (1 local, 3 remote)
- Security: IP filtering, user logs, 802.1x, TLS encryption, signed firmware, TPM support
- Logs: Up to 100,000 system/event entries
- Failover Support: N+1 and ARB
✨ Interface & Ports:
- USB: 2x USB 2.0 (front), 2x USB 3.0 (rear)
- HDMI: 2EA
- Audio Out: 1EA (3.5mm jack)
- Alarm I/O: 8 In / 4 Out
- Reset & Indicators: Power button, HDD/Alarm/Power/Record/Backup/Network indicators
⚡ Power, Environmental, Mechanical:
- Power Input: 100–240V AC ±10%, 50/60Hz, 1.5A
- Power Consumption: Max 143W (with 8 HDDs)
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
- Humidity: 20% to 85% RH
- Dimensions: 438 x 86 x 434.9 mm
- Weight: 7.3kg (excluding HDDs)
? Smartphone Support:
- OS: iOS, Android
- Protocols: RTP, RTSP, HTTP, SUNAPI
- Features: Live view (16CH), playback (4CH), multi-profile
? Integration & Control:

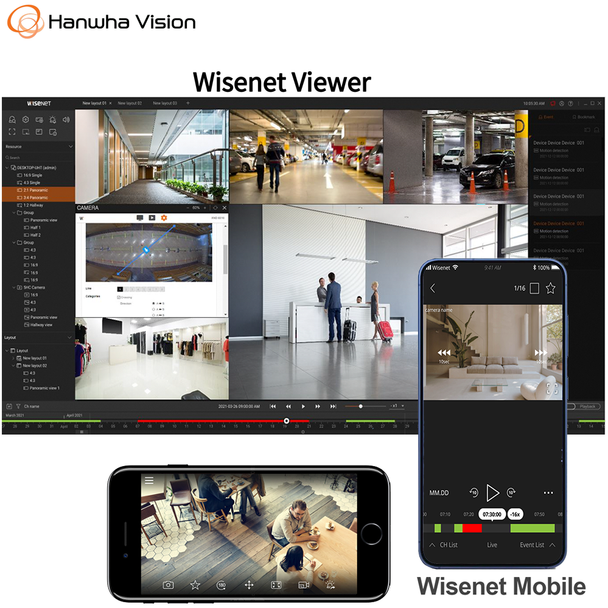

- Viewer Software: SSM, WebViewer, Wisenet Viewer, Wisenet Mobile
- Web Compatibility: Windows 10+, macOS 13.5.2+, Chrome, Edge, Safari
- PTZ Control: GUI, WebViewer, SPC-2000/2001
- Presets: Up to 300
- P2P Setup: QR code support
?️ Language Support:
- English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Czech, Portuguese, Danish, Romanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese
