Description
Hanwha’s XRN-3220RB2 builds on the reliability of the standard 3220B2 with enterprise-grade RAID-5/6 support, providing advanced storage redundancy across 8 hot-swappable SATA drive bays. With 32-channel capacity and support for video resolutions up to 32MP, this unit delivers up to 520Mbps of recording and transmission bandwidth, ideal for high-throughput enterprise surveillance environments.
Its dual HDMI outputs support 4K and 1080p displays, and multi-layout dynamic video monitoring makes it easy to adapt to command center environments. The NVR integrates AI object attribute search (when used with Hanwha AI security cameras), fisheye dewarping, and multi-channel smart search features for the next generation in IP surveillance management.

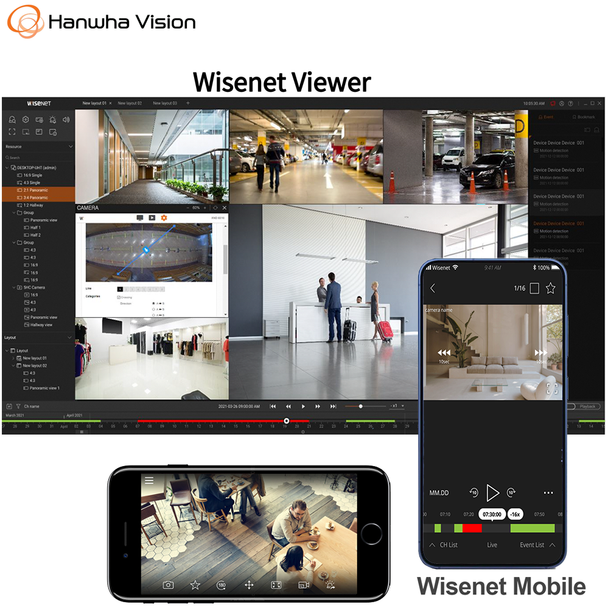

Security measures include onboard TPM, 802.1x, TLS encryption, and signed firmware. With full NDAA compliance, remote access, failover support, and seamless integration with Wisenet Viewer, SSM, and WebViewer, the XRN-3220RB2 is a smart choice for robust security infrastructure deployments.
✨ Key Features:
- 32 IP channels up to 32MP input resolution
- Built-in RAID-5/6 with 8-bay hot-swappable storage
- Up to 80TB total capacity (10TB per bay)
- 520Mbps bandwidth for high-resolution recording
- Dual HDMI local outputs for 4K & Full HD display
- AI search compatible with Hanwha AI cameras
- 2-way audio and alarm/event I/O
- Secure architecture: TPM, TLS, 802.1x, signed firmware
- Failover N+1 support and remote video backup
- NDAA compliant with embedded Linux OS
✅ Specifications Summary:
✨ Video & Display:
- Max Inputs: 32CH, Resolution: 32MP ~ CIF
- HDMI1: 3840x2160 @ 30Hz, HDMI2: 1920x1080 @ 60Hz
- Multi-Screen: Expand HDMI1 (up to 32 divisions), HDMI2 (up to 16)
- Virtual Channel View, Clone Mode, Dynamic Layout
✨ Recording & Playback:
- Compression: H.265, H.264, MJPEG
- Recording Bandwidth: Up to 520 Mbps (Distributed), 300 Mbps (Normal), 520 Mbps (RAID)
- Resolution: Up to 32MP
- Recording Modes: Normal, Dual Stream, Schedule, Event, Bookmark
- Playback Bandwidth: Up to 200Mbps (32CH)
- Simultaneous Playback: Max 80CH
- Fisheye Dewarping: 1CH local
- Playback Controls: Fast/Slow Forward, Backward, Step Navigation
⚖️ Storage:
- Internal: 8x SATA (Up to 10TB each, Max 80TB)
- RAID: RAID-5/6 (Array of 8)
- External: iSCSI
- Backup: SEC/AVI/JPG/PNG (local/network), Up to 16CH
↔️ Network & Protocols:
- Protocols: IPv4/6, TCP/IP, RTP, RTSP, SNMP, HTTPS, DHCP, ONVIF (Profile S), SUNAPI
- Max Bandwidth: 520Mbps
- DDNS: Hanwha DDNS
- Interfaces: 3x RJ-45 (1Gbps)
⚡ Audio:
- Input: 32CH Network
- Output: 1EA (3.5mm jack)
- Codec: G.711, G.726, AAC
- 2-Way Audio Support
⚠️ System / Security:
- OS: Embedded Linux
- User Access: Max 4 users
- Authentication: 802.1x, TLS, TPM, Signed Firmware
- Redundancy: N+1 Failover, ARB Support
- Logs: Up to 100,000 entries
✨ Interface & Ports:
- USB: 2x USB 2.0 (front), 2x USB 3.0 (rear)
- HDMI: 2EA
- Audio Out: 1EA
- Alarm I/O: 8 In / 4 Out
- Serial: Supported (SPC-2000/2001)
⚡ Power, Environmental, Mechanical:
- Power: 100–240V AC, 50/60Hz, Max 162W
- Operating Temp: 0°C to 40°C
- Humidity: 20% to 85%
- Dimensions: 438 x 86 x 434.9 mm
- Weight: 8.8kg (excl. HDD)
