Description
The Hanwha PRN-3200B2 is a 32-channel AI NVR built for robust enterprise-level video surveillance. With a recording bandwidth of 400Mbps and support for up to 32MP (8K) security cameras, this unit delivers high-performance recording and playback while offering AI-based metadata search for efficient video review.
This NVR features dual HDMI outputs (4K and Full HD), RAID-5/6 support across 8 SATA bays (80TB max), and smart video analytics. Failover support, TPM, TLS, and signed firmware provide robust security. Compatible with Hanwha Wisenet Viewer, WebViewer, and mobile apps.
✨ Key Features:
- 32CH IP input up to 32MP
- Up to 400Mbps total recording bandwidth
- AI search (person, vehicle, face, LPR)
- 8 SATA bays, up to 80TB, RAID-5/6 support
- HDMI 4K and HDMI 1080p dual outputs
- Fisheye dewarping and multi-layout display
- 2-way audio, alarm inputs/outputs
- Embedded Linux OS with failover support
- NDAA compliant, secure firmware, TPM
- Supports Wisenet Viewer, SSM, WebViewer
✅ Specifications Summary:
✨ Video & Display:
- HDMI Output: HDMI1 (3840x2160@30Hz), HDMI2 (1920x1080@60Hz)
- Display Layout: Multi-monitor, dynamic channel mapping
- Input: 32CH IP, up to 32MP resolution
✨ Recording & Playback:
- Compression: H.265, H.264, MJPEG
- Max Bandwidth: 400Mbps recording
- Playback: Up to 80CH simultaneous
- Event Recording: Motion, tamper, AI triggers
⚖️ Storage:
- Storage Bays: 8x SATA (10TB each)
- Max Capacity: 80TB
- RAID: RAID-5/6 support
- External Storage: iSCSI, USB
↔️ Network & Protocols:
- LAN Ports: 3x RJ-45 (Gigabit)
- Protocols: IPv4/6, HTTPS, SNMP, RTP, RTSP
- Interoperability: ONVIF Profile S, SUNAPI
⚡ Audio:
- Channels: 32CH input, 1CH output
- Codec: G.711, G.726, AAC
⚠️ System / Security:
- OS: Embedded Linux
- Security: TPM, TLS, 802.1x, secure boot, firmware validation
- Failover: N+1 redundancy
✨ Interface & Ports:
- USB: 2x USB 2.0 front, 2x USB 3.0 rear
- Alarm I/O: 8 inputs, 4 outputs
- Serial Interface: RS-232C
⚡ Power, Environmental, Mechanical:
- Power Supply: 100–240V AC, Max 205W
- Operating Temp: 0°C–40°C (32°F–104°F)
- Size: 438 x 86 x 434.9 mm
- Weight: Approx. 9.1kg without HDD
⚙️ Compatible Accessories / Software:

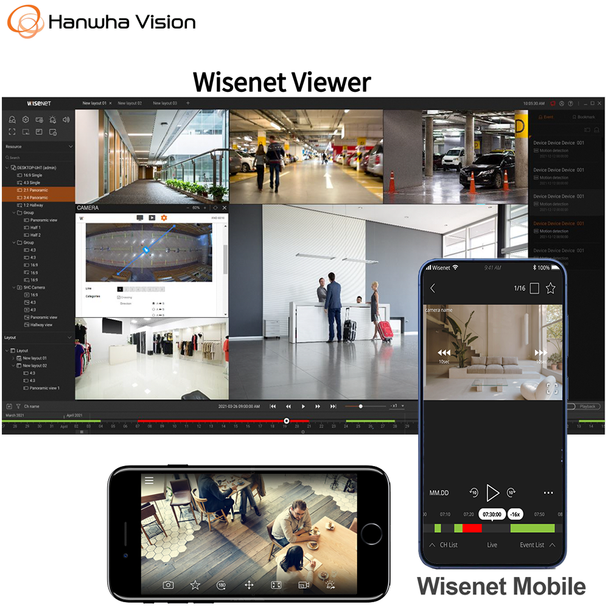

- Wisenet Viewer, SSM, SmartViewer, WebViewer, Wisenet Mobile
- SPC-2000 PTZ Controller
