Description
The Hanwha Vision ARN-410S is a streamlined 4-channel network video recorder engineered for compact, high-performance IP surveillance deployments. This NVR supports resolutions up to 8MP and offers efficient compression with H.265, H.264, and MJPEG formats. With a recording bandwidth of 40Mbps, it is well-suited for entry-level and small-scale surveillance environments.
The system features four PoE ports for simplified plug-and-play camera connectivity and a local HDMI monitor output for real-time viewing. Remote access is seamless through Hanwha's Wisenet Viewer, WAVE, and WebViewer platforms. Additional tools like P2P QR code support make remote configuration and monitoring effortless.
Security and reliability features include event push notifications, alarm outputs, and ARB support for redundancy. Recording modes are flexible and event-driven, with search functions such as calendar, smart search, and text-based filtering. The compact design, economic cost and 6TB storage capacity make it ideal for residential, retail, or small business use cases.
✨ Key Features:
- Supports up to 4 channels of 8MP IP video
- 40Mbps total recording bandwidth
- Built-in PoE for all 4 camera ports
- HDMI output with up to 4K (3840x2160 @ 30Hz) display
- P2P QR code remote setup
- H.265, H.264, MJPEG recording compression
- Multiple event-based triggers and smart search tools

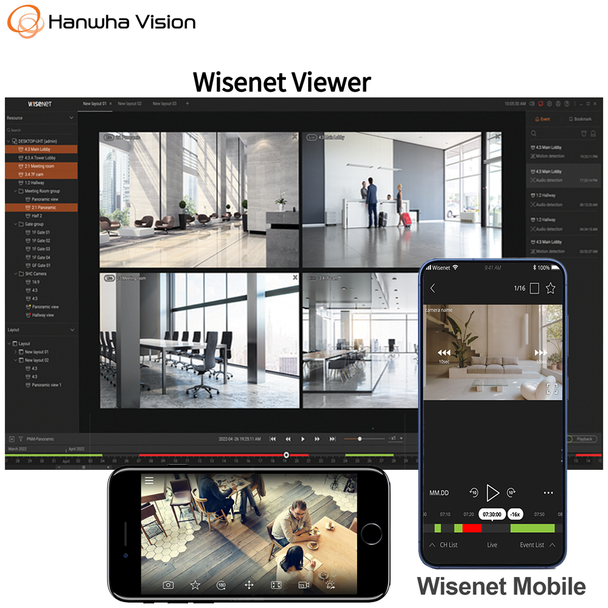

- Wisenet Viewer, WebViewer, and mobile app compatible
- Up to 6TB HDD storage support
- ARB and N+1 failover supported
✅ Specifications Summary:
✨ Video & Display:
- Max Network Inputs: 4CH, 8MP ~ CIF
- HDMI Display Modes: 1/2V/2H/3V/4 (Local), 1/2V/2H/3V/4 (Web)
- HDMI Resolution: 8M@30fps, 1080p@120fps, 720p@120fps, D1@120fps
✨ Recording & Playback:
- Compression: H.265, H.264, MJPEG
- Max Recording Bandwidth: 40Mbps
- Recording Modes: Normal, Dual Stream, Event, Bookmark
- Max Playback: 16CH (4CH local, 4CH per remote user)
- Playback Controls: Forward/Backward, Step Navigation
⚖️ Storage:
- SATA: 1 bay (Max 6TB)
- Backup Options: BU/Exe (GUI), JPG/AVI (Network)
↔️ Network:
- Max Bandwidth: 40Mbps
- Protocols: IPv4/6, TCP/IP, RTSP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI, etc.
- PoE Ports: 4x RJ-45 (10/100), 1x WAN (10/100)
⚡ Audio:
- Input/Output: 4CH (network)
- Codecs: G.711, G.726, AAC
- 2-Way Audio: Supported
⚠️ System / Security:
- OS: Embedded Linux
- Max Users: 4 (1 local, 3 remote)
- Logs: 100,000 system and event logs
- Encryption: 802.1x, IP filtering, signed firmware
✨ Interface & Ports:
- USB: 2x USB 2.0
- Alarm: 1 Out
- HDMI: 1EA
- Indicators: Power, Record, Network
⚡ Power, Environmental, Mechanical:
- Input: 54VDC / 1.20A
- Consumption: Max 52W
- PoE Budget: 35W
- Temp/Humidity: 0°C–40°C / 20–85% RH
- Dimensions: 300 x 47 x 208.7 mm
- Weight: 1.03kg
