Dahua OEM IPC-HFW1320S 3 Megapixel IR Bullet IP Camera

Write a Review
Calculated at Checkout
  • Dahua OEM IPC-HFW1320S 3 Megapixel IR Bullet IP Camera
  • Dahua OEM IPC-HFW1320S 3MP IR Bullet IP Security Camera
  • OEM Dahua IPC-HFW1320S 3MP IR Bullet IP Camera with Cable shown
  • Dahua IPC-HFW1320S IR Bullet IP Camera optional accessories

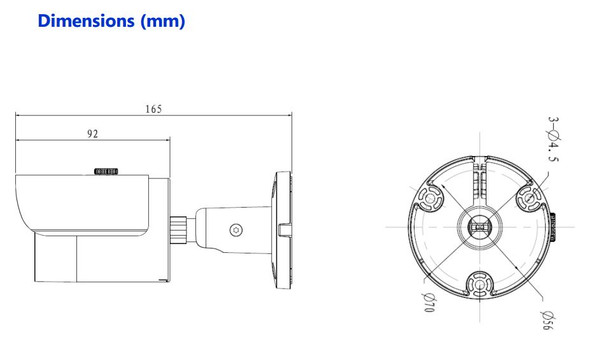

  • Dahua IPC-HFW1320S OEM 3MP IR Bullet Dimensions


Dahua OEM IPC-HFW1320S 3 Megapixel IR Bullet IP Camera is a popular model offering maximum video performance, low cost and a compact rugged casing. The unit delivers full 3MP resolution at up to 20fps and 1080P (2MP) or less at a full 30fps Real-time. The unit is simple yet effective for 24/7 video security even in scenes with zero light source. The device offers professional image settings and enhancements like DWDR (Digital WDR) and 3DNR (Digital Noise Reduction) plus numerous other selections and adjustments promise satisfying results. Though using a 3.6mm Fixed Megapixel Lens, the unit provides a good horizontal area coverage at over 80 degrees. This outdoor ready IP Camera can handle harsh environments and includes a solid multi-axis mounting bracket as well as a sun-shield. More benefits like 12VDC or PoE power input, Dual Streaming with H.264 and countless IT protocols such as RTSP or standards like ONVIF for easy 3rd party IP Camera System integration.

Dahua OEM IPC-HFW1320S Main Features:

  • 1/3” 3 Megapixel progressive scan CMOS Sensor
  • H.264 and MJPEG encoding with dual-streaming
  • Maximum 20fps 3MP (2048×1536) & 30fps at 1080P (1920×1080)
  • DWDR, Day/Night (ICR), 3DNR, AWB, AGC, BLC
  • Remote Viewing: Web Interface, CMS (DSS/PSS) Client Software/NVR and DMSS Mobile Apps
  • Numerous Protocols Supported: HTTPs, SSL, UPnP, RTSP, QoS, DDNS, ONVIF and more
  • 3.6mm fixed lens w/HFOV 81° (6mm optional)
  • IR LED Night Vision to 30 meters
  • Rugged IP67 Weatherproof
  • Operating Temperature: -30°C~+60°C, Less than 95% RH
  • Dimensions: Φ70mm×165mm or Φ2.75" x 6.49"
  • Weight: 0.38Kg or 0.83 lbs.
  • Power: 12VDC or PoE

Powerful 3MP Video Day or Night:
The OEM Dahua IPC-HFW1320S 3MP Compact IR Bullet IP Camera includes a popular small form factor casing yet boast big results on resolution and features. The device uses a current 3 Megapixel Progressive Scan CMOS image sensor that works well in almost any conditions but likewise offers in-depth camera image adjustments. Excellent video performance even in low or no light thanks to a mechanical Day/Night operation with 3DNR plus IR LED night vision. A wealth of adjustable video settings also give professional control over imaging. High Frame Rate video in MJPEG or H.264 compression also supporting dual streams the units adapt to bandwidth demands. The Fixed 3.6mm Megapixel Lens meanwhile gives a nice wide horizontal viewing angle of 81°.

Pro Performance and Quality Construction:
This OEM Dahua IPC-HFW1320S 3 MegaPixel IR Bullet IP Camera despite a low cost is packed with professional features and functions that meet the needs for a wide range of pro security camera systems. The units include a well-built web interface and provide IT protocol support to ONVIF integration for flexible installation. Further the unit's compact size and weatherproof construction mean it can easily be used in an indoor or outdoor surveillance requirement. IP67 weather-resistance for one ensures even direct exposure to harsh weather is of no concern. Additionally a cable feed through mount with 3 axis positioning plus Single Cable install via PoE support the unit is a breeze to install. Similarly even a simple to use and very effective IP software tool makes first time configurations like setting a static IP nice and quick.

NOTICE: For Dahua A2Z Sales primarily OEM product versions which means no brand labels and models may vary but all specs are otherwise the same as referenced model.

Last Updated January 13, 2016
