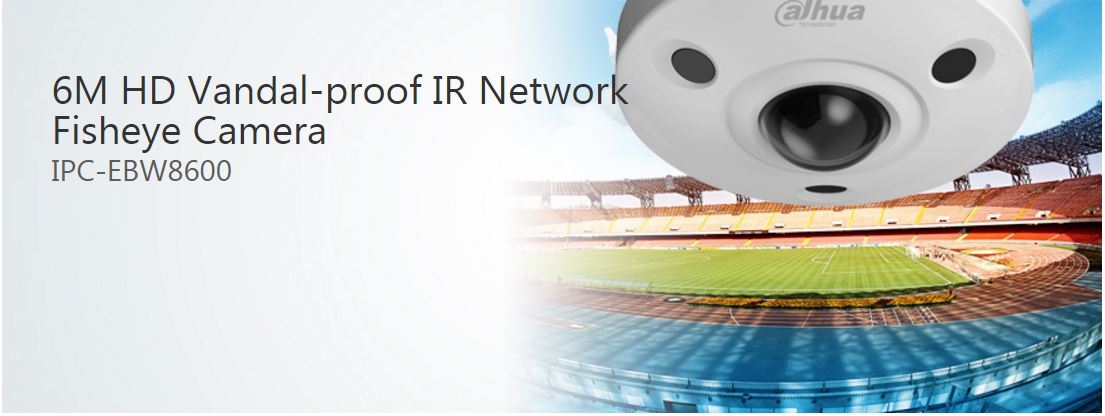

Dahua OEM IPC-EBW8600 6MP Vandal IR Fisheye IP Camera

Write a Review
Calculated at Checkout
  • Dahua OEM IPC-EBW8600 6MP Vandal IR Fisheye IP Camera

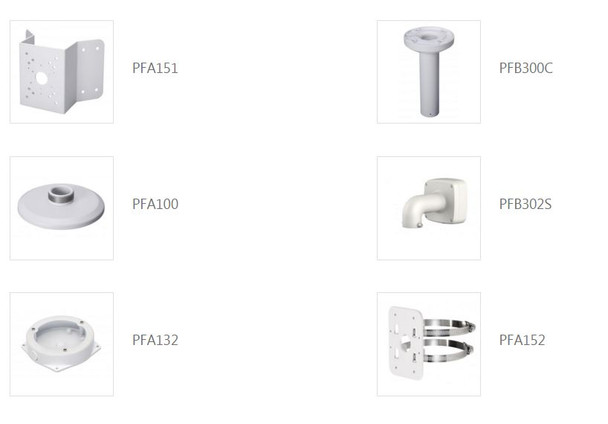

  • Dahua IPC-EBW8600 Fisheye Optional Accessories
  • Dahua OEM IPC-EBW8600 Fisheye Dimensions


Dahua IPC-EBW8600 OEM 6MP Fisheye Vandal IP Camera is a next generation HD Fisheye Security Cameras ready for nearly any indoor or outdoor security system need. The unit features the latest 6 MP Image Sensor and delivers up to real-time 30fps video streaming including dual streaming with codecs like MJPEG and H.264. The device is also equipped with true day/night operation plus IR LED illumination that delivers wide coverage area to about 30 feet. The Fisheye IP Camera is a capable of providing a complete video surveillance system. Built-in De-warping including multiple panoramic viewing modes, Picture in picture or ROI to Digital PTZ provide full Fisheye video management. Consider then the built-in Micro SD Card slot, Two Way Audio support with built-in MIC or I/O interface and the unit is obviously well equipped. Note then that they all tie in perfectly with Dahua's full function web interface offering live viewing, search, playback, export and settings via web browser and the IP Camera alone. The unit is slim yet solid with vandal proof and weatherproof ratings that allow install indoor or outdoor plus a variety of accessories allow install almost anywhere such as ceilings, walls, poles and more.

Dahua IPC-EBW8600 OEM Main Features:

  • 1/1.8” 6 Megapixel HD CMOS Image Sensor
  • H.264 or MJPEG dual-streaming
  • Full HD 6MP (3072 x 2048) at up to 30fps Real-time
  • Digital WDR, Day/Night (ICR), 3D Noise Reduction, ROI, AWB, AGC, BLC
  • Panoramic IR LED Illumination enables night vision to about 30 feet or 10 meters
  • Fisheye 185° Lens provides panoramic coverage horizontally, vertically and diagonally
  • Built-in De-wrap Mode: Original, Panoramic, Double Panoramic, 1+3, Digital ptz, 4
  • Network IT Protocol Support like: ARP, RTSP, SMTP, FTP, PPPOE, IPv4/IPv6, SNMP, QoS, UPnP and more
  • ONVIF Compliant for 3rd Party integration
  • Full Function Web Interface plus PC or MAC supported VMS and CMS Software (DSS/SmartPSS)
  • DMSS Dahua Mobile Viewing Applications are also available for Windows, iPhone, iPad and Android devices
  • Two Way Audio 1/1 Input/Output (Plus Built in-Microphone)
  • Alarm I/O Interface 2/1 Input/Output
  • Micro SD Card Slot for up to 64GB
  • IP67 Weatherproof Rated for Very Harsh Environments
  • IK10 Vandal Proof Rated for High Impact plus Tamper Resistance
  • Flexible Power Input: 12VDC or PoE (802.3at)
  • Temperature Range: -22 °F to 140 °F or -30°C to +60°C
  • Dimensions Φ5.9" x 1.99" or Φ150mm x 50.7mm
  • Weight: 1.27lbs. Or 0.58kg (1.89lbs. or 0.86kg with packaging)


Superior Coverage and HD Clarity:
The Dahua OEM 6MP Fisheye IP Camera is built around an all-new 6 Megapixel Image sensor that yields excellent performance, even in low light. The units delivers outstanding real-time 30fps in Full 6MP HD while also provides true day/night function and an integrated IR LED array for absolute night vision. Added Image Enhancements such as Digital Wide Dynamic Range and 3D Noise Reduction help ensure optimal video clarity. While a wide set of other pro attributes like Diverse Fisheye or Panoramic Imaging Modes, ROI (region of interest) to Privacy Masking and individual H.264 or MJPEG stream settings allow versatile operation. The addition of Alarm I/O interface to Two Way Audio simply makes the system all that more comprehensive for intelligent IP Surveillance System needs.

Full Featured, Fully Rugged Design:
The device is well equipped in every aspect and able to rival any competitor’s product in class. The Dahua OEM Fisheye 6MP IP Camera provides a rich set of advantages in both performance as well as functionality. The internal capabilities like even detection or event scheduling, user group levels plus specific rights, On-board Recording via SD Card and full function Web Browser interface promise a complete IP Camera System in one security camera. Dahua OEM Fisheye IPC-EBW8600 provides flexible implementation for ceilings, wall and pole mounting as well as there are optional mount accessories that can further assist easy install. One feature to note is this device uses High PoE (power over Ethernet 802.3at) or 12VDC input.

Last Updated April 11, 2016
