Description

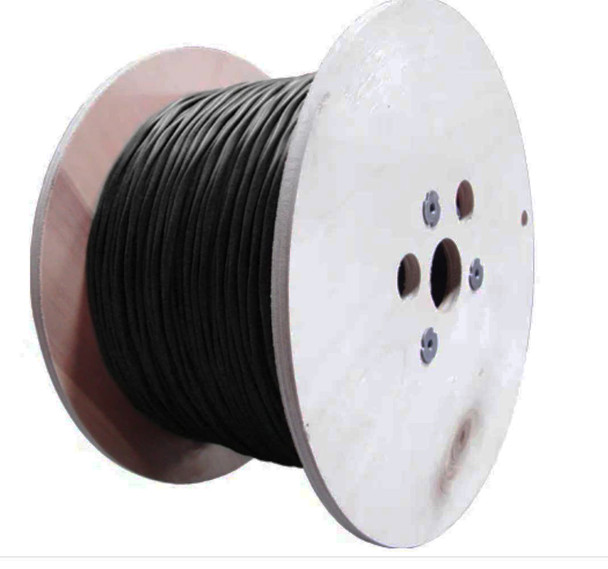

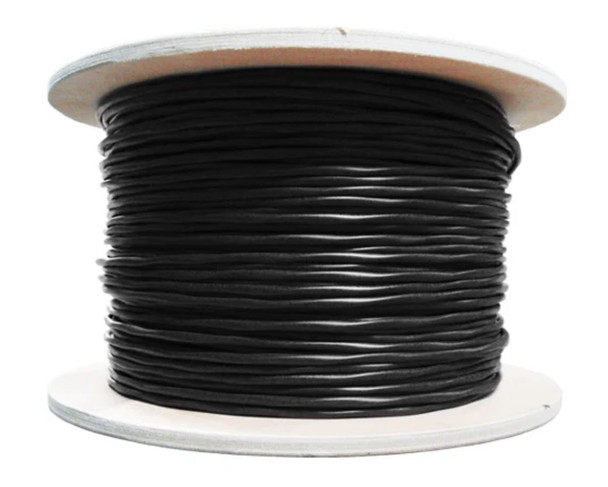

The AZP-C6CMXT2045BK is a rugged Cat6 outdoor cable designed for direct burial in harsh conditions. It features 23AWG solid bare copper conductors in a shielded twisted pair (STP) configuration with a drain wire for EMI/RFI protection. A waterproof tape barrier further enhances moisture resistance, while the UV-rated outdoor jacket withstands exposure to sunlight and weather. Rated up to 600MHz, it supports Gigabit Ethernet, CCTV, IP cameras, and broadband applications with consistent reliability. Delivered on a 1000ft wooden spool, it is UL/ETL listed and RoHS compliant for code-compliant outdoor cabling.
Key Features:
- Shielded STP construction with drain wire
- Waterproof tape for moisture resistance
- 23AWG solid bare copper
- Outdoor UV-rated jacket
- Rated 600MHz for Gigabit applications
- 1000ft wooden spool packaging
- UL/ETL listed, RoHS compliant
- Excellent for CCTV, IP cameras, and outdoor Ethernet
Technical Specifications:
- Category: Cat6
- Conductor: 23AWG Solid Bare Copper
- Shielding: STP with Drain Wire
- Water Protection: Waterproof Tape
- Jacket: Outdoor UV-rated
- Bandwidth: 600MHz
- Length: 1000ft Wooden Spool
- Applications: Direct burial, CCTV/security, outdoor data networks
- Compliance: ANSI/TIA-568.2-D, UL/ETL, RoHS
