Description
The AZP-C5U6614BK is a high-performance Cat5e riser-rated bulk Ethernet cable designed for reliable structured cabling in professional and security installations. Built with 24AWG solid bare copper conductors, this cable delivers dependable performance for data, voice, and video applications. The riser-rated (CMR) PVC jacket complies with building safety standards, making it suitable for vertical runs between floors or in-wall pathways.
Engineered for 350 MHz bandwidth, this Cat5e cable supports Gigabit Ethernet, IP devices, and video surveillance applications with stable throughput. It is particularly well-suited for CCTV deployments, IP security cameras, VoIP telephony, and backbone connections. The high-density polyethylene (HDPE) insulation ensures superior signal integrity, while the unshielded twisted pair (UTP) design reduces crosstalk for clean transmission.
Supplied in a 1000-ft pull box, the AZP-C5U6614BK simplifies installation with smooth payout and descending length markings, ensuring installers can quickly measure remaining cable. ETL verified and RoHS compliant, it is a dependable choice for professional network integrators and security contractors who demand performance and compliance.
Available in multiple jacket colors, this product line allows easy color-coding of cable runs for organization and project requirements. Black is the default option, with additional colors available below.
Key Features:
- 24AWG solid bare copper conductors
- Riser-rated PVC (CMR) jacket
- Verified to Cat5e / TIA-568.2-D standards
- Bandwidth rated up to 350 MHz

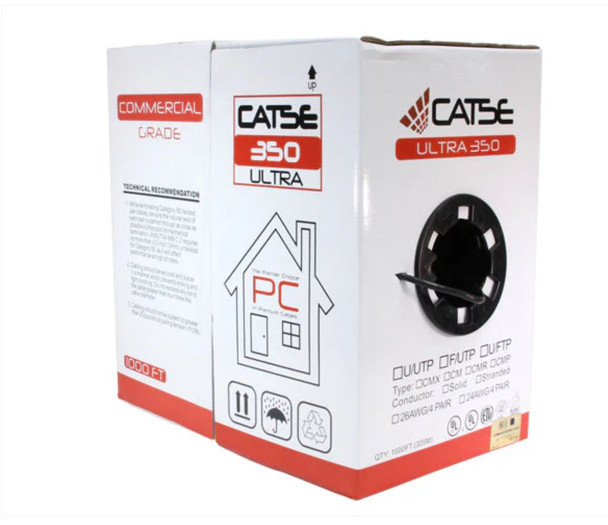

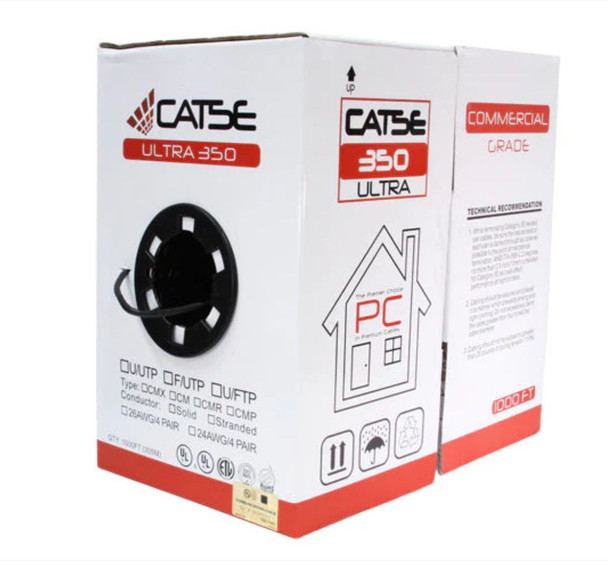

- Easy 1000-ft pull box with length markings
- ETL and RoHS compliant
- Excellent for CCTV, IP cameras, VoIP, and structured cabling
Technical Specifications:
- Category: Cat5e
- Conductor Size: 24AWG Solid Bare Copper
- Pairs: 4 pairs / 8 conductors
- Insulation: High Density Polyethylene (HDPE)
- Jacket: CMR PVC, RoHS compliant
- Bandwidth: 350 MHz
- Length: 1000 ft pull box
- Applications: 10/100/1000Base-T, CCTV, VoIP, broadband video, structured cabling
- Compliance: ISO/IEC 11801, ANSI/TIA-568.2-D, ETL Verified, RoHS
Options (Color Variants):

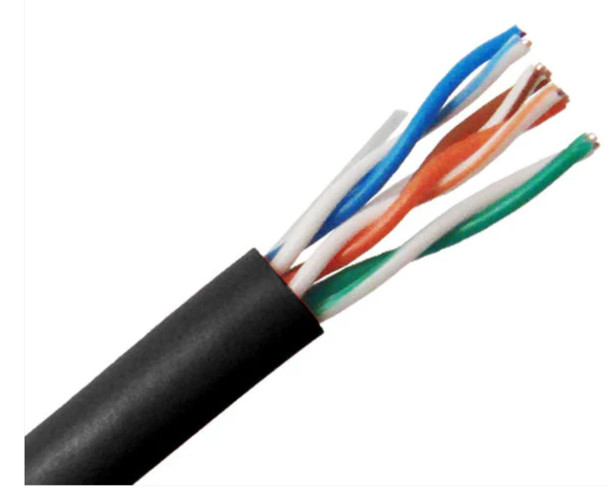

- AZP-C5U6614BK — Black (Default)

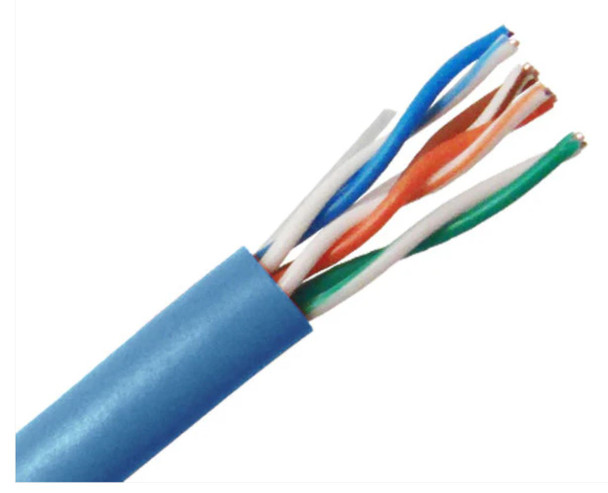

- AZP-C5U6612BL — Blue
- AZP-C5U6616GY — Gray
- AZP-C5U6613WH — White

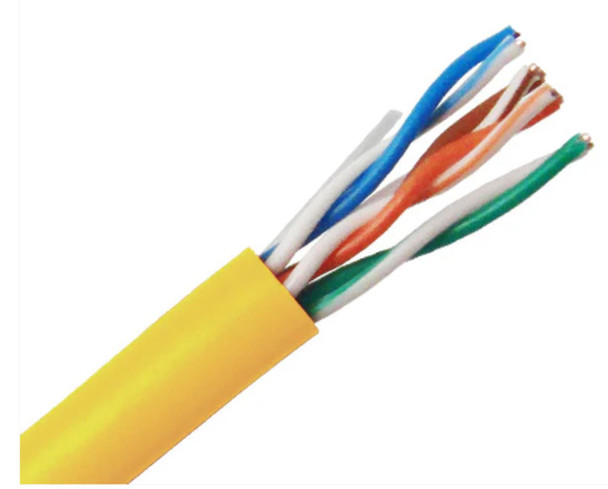

- AZP-C5U6620YL — Yellow
