Description

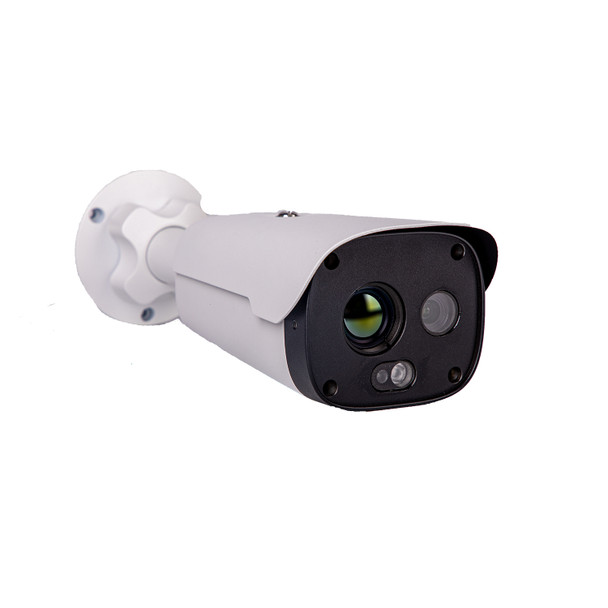

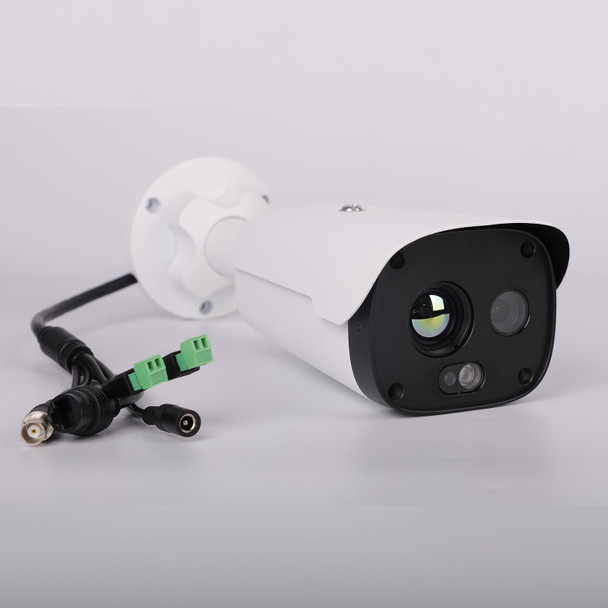

The A2Z AZIRD-TS6XX Thermal Infrared IP Security Camera is a rugged dual-spectrum solution that blends precision thermal analytics with full-HD visual detail for a variety of indoor or outdoor surveillance system and monitoring needs. Its 640×512 uncooled VOx thermal imager captures subtle heat signatures, while the 1920×1080 visible-light sensor preserves scene context—ideal for plant safety, perimeter security, utilities, and smart facilities. Multiple image modes (dual-light fusion, picture-in-picture, and visible-light temperature overlay) empower operators to diagnose events quickly and confirm conditions in real time.
Engineered for accurate thermography, the AZIRD-TS6XX supports real-time temperature tools (10 movable points, 10 areas, 3 line measurements), emissivity from 0.01–1.0, radiance adjustment, and raw image output at 25 Hz. Measurement ranges cover –20 °C to 180 °C, with a high-temperature span up to 650 °C, achieving ±2 °C or ±2% accuracy (max applied). A built-in 30m IR fill light strengthens visible imaging in low-light conditions and, combined with alarm linkage, can trigger a warning light and buzzer.
Integration is straightforward: ONVIF Profile S/G, RTSP, GB28181, and Modbus RTU/TCP temperature output fit modern VMS/SCADA workflows. The IP66 aluminum housing with lightning/surge protection and PoE power options enables dependable outdoor deployment.
Key Features:
- 640×512 uncooled VOx thermal detector; high sensitivity (NETD ≤ 0.04 °C) - (raw <9Hz default)
- 1920×1080 visible-light CMOS; 30m IR night vision (NIR fill)
- Dual-spectrum imaging modes: fusion, PIP, visible-light temperature overlay
- Real-time temperature tools: 10 points, 10 areas, 3 lines; raw 25 Hz output
- Measurement ranges: –20 °C–180 °C and 0–650 °C; accuracy ±2 °C or ±2% (max)
- On-board video analytics for event detection and smarter alerting
- Modbus RTU/TCP temperature output; SDK output available
- ONVIF Profile S/G, RTSP, GB28181; HTTPS/802.1X security
- 1 alarm input / 1 alarm output; buzzer & warning-light linkage
- PoE or 12 V DC power; IP66 weatherproof with lightning/surge protection
- N.C.N.R. Special Order w/ Lead Time
Model Options (No Cost Change):
- AZIRD-TS613 (13mm Thermal Lens + Default 4mm Visible Lens) – Default Selection
- AZIRD-TS625 (25mm Thermal Lens + Default 4mm Visible Lens)
- AZIRD-TS613-6 (13mm Thermal Lens + Optional 6mm Visible Lens)
- AZIRD-TS625-6 (25mm Thermal Lens + Optional 6mm Visible Lens)
Specifications Summary:
Imaging
- Thermal Sensor: Uncooled VOx FPA, 640×512; NETD ≤ 0.04 °C
- Visible Sensor: 1/2.8″ CMOS, 1920×1080; 30m IR/NIR fill
- Image Modes: Fusion, PIP, temperature overlay; multiple pseudo-color palettes
Optics & FOV
- Thermal Lenses: 13mm / 25mm; FOV approx. 48°×36° / 25°×19°
- Visible Lenses: 4mm / 6mm
Temperature & Analytics
- Measurement Ranges: –20 °C–180 °C; high range to 650 °C; ±2 °C or ±2% (max)
- Tools: 10 points, 10 areas, 3 lines; emissivity 0.01–1.0; radiance adjustable; (raw <9Hz default)
Networking & Integration
- Video/Protocols: H.264; TCP/IP, RTSP, GB28181, ONVIF S/G; HTTPS, 802.1X
- Industrial: Modbus RTU/TCP temperature output; SDK output
- I/O: 1 alarm in / 1 alarm out; warning-light & buzzer linkage
Power, Environmental, Mechanical
- Power: 12 V DC or PoE; low-power operation
- Protection: IP66; lightning/surge protection (outdoor-rated)
