Description

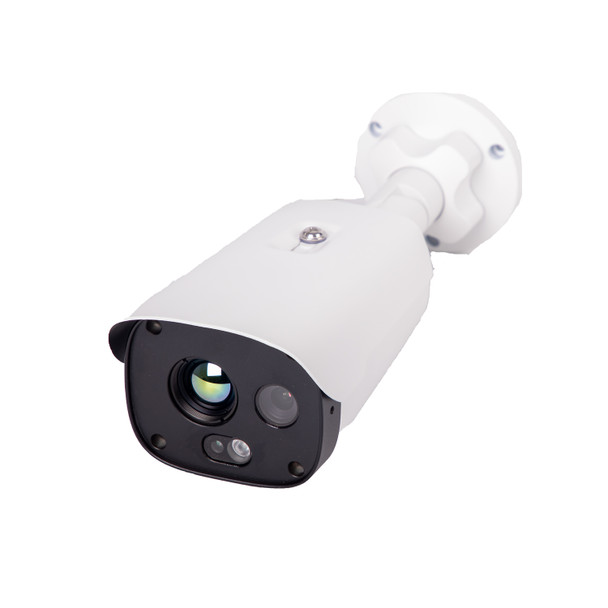

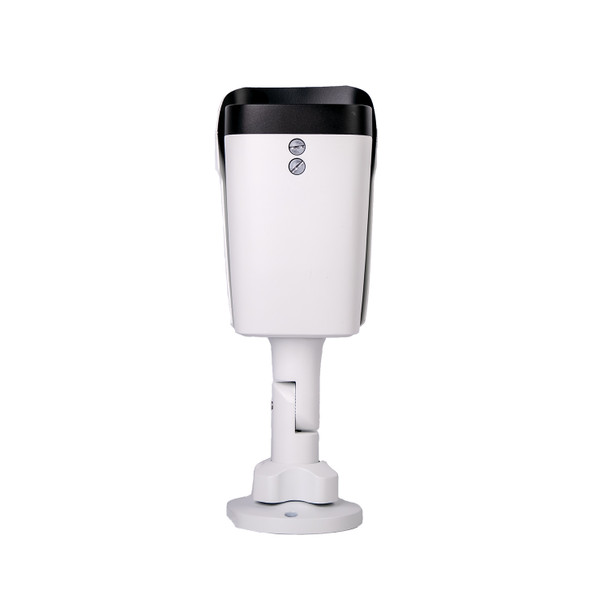

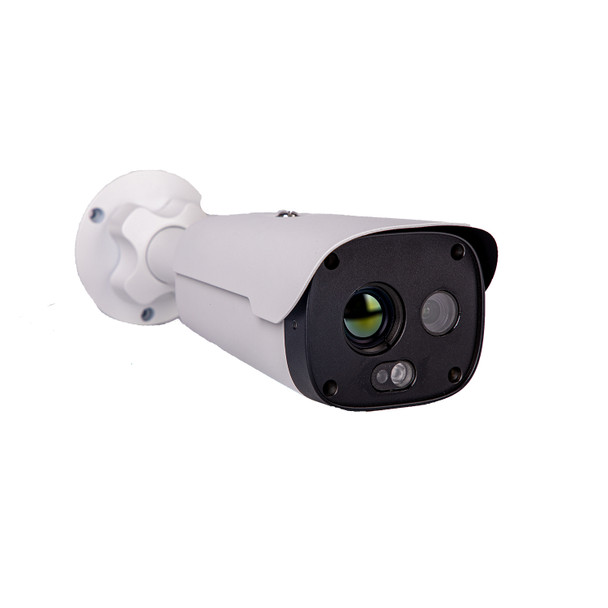

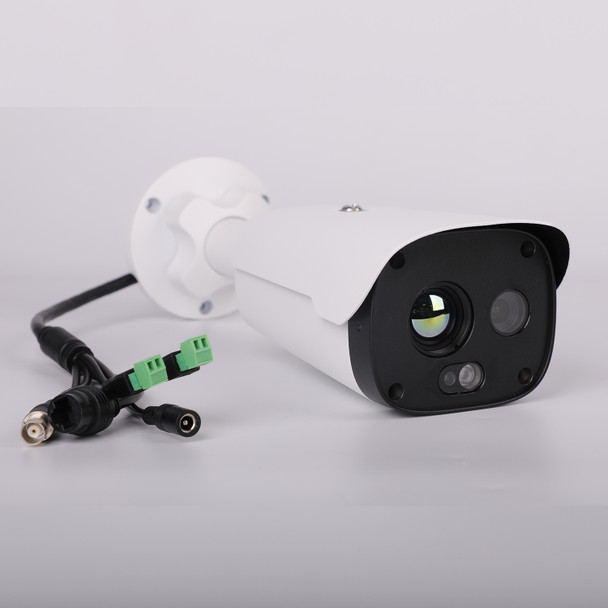

The A2Z AZIRD-TS3XX Thermal + Visible IR Bullet IP Security Camera brings dependable dual-spectrum performance to cost-sensitive deployments needing reliability and integration. A 384×288 VOx thermal sensor provides accurate thermal imaging, while a 1080p visible sensor captures scene detail—ideal for a variety of indoor or outdoor surveillance system and monitoring needs. Fusion, picture-in-picture, and temperature overlay reveal both heat anomalies and visual context, helping teams speed diagnostics and reduce false alarms.
Thermography features include 10 movable points, 10 areas, and 3 line measurements, plus emissivity control (0.01–1.0), radiance adjustments, and 25 Hz raw output when deeper analysis is needed. Standard ranges span –20 °C to 180 °C with a high-temperature range up to 500 °C, maintaining ±2 °C or ±2% accuracy (max applied). A built-in 30m IR fill light enhances the visible channel in low-light conditions, and alarm linkage supports buzzer and warning-light output.
Integration is straightforward via ONVIF S/G, RTSP, and GB28181 for VMS, and Modbus RTU/TCP for SCADA/PLC temperature data. The IP66 aluminum housing with surge protection and PoE simplifies outdoor installs.
Key Features:
- 384×288 uncooled VOx thermal; high sensitivity (NETD ≤ 0.04 °C) (raw <9Hz default)
- 1920×1080 visible-light CMOS; 30m IR night vision (NIR fill)
- Dual-spectrum imaging: fusion, PIP, visible-light temperature overlay
- Real-time temperature tools: 10 points, 10 areas, 3 lines; raw 25 Hz output
- Measurement ranges: –20 °C–180 °C and 0–500 °C; accuracy ±2 °C or ±2% (max)
- On-board video analytics for event detection and smarter alerting
- Modbus RTU/TCP temperature output; SDK output
- ONVIF S/G, RTSP, GB28181; HTTPS/802.1X security
- 1 alarm input / 1 alarm output; warning-light & buzzer linkage
- PoE or 12 V DC power; IP66 weatherproof with lightning/surge protection
- N.C.N.R. Special Order w/ Lead Time
Model Options (No Cost Change):
- AZIRD-TS313 (13mm Thermal Lens + Default 4mm Visible Lens) – Default Selection
- AZIRD-TS325 (25mm Thermal Lens + Default 4mm Visible Lens)
- AZIRD-TS313-6 (13mm Thermal Lens + Optional 6mm Visible Lens)
- AZIRD-TS325-6 (25mm Thermal Lens + Optional 6mm Visible Lens)
Specifications Summary:
Imaging
- Thermal Sensor: Uncooled VOx FPA, 384×288; NETD ≤ 0.04 °C
- Visible Sensor: 1/2.8″ CMOS, 1920×1080; 30m IR/NIR fill
Optics & FOV
- Thermal Lenses: 7.5mm / 13mm; FOV approx. 49.8°×37.4° / 28.8°×21.6°
- Visible Lenses: 4mm / 6mm
Temperature & Analytics
- Measurement Ranges: –20 °C–180 °C; high range to 500 °C; ±2 °C or ±2% (max)
- Tools: 10 points, 10 areas, 3 lines; emissivity 0.01–1.0; radiance adjustable; (raw <9Hz default)
Networking & Integration
- Video/Protocols: H.264; TCP/IP, RTSP, GB28181, ONVIF S/G; HTTPS, 802.1X
- Industrial: Modbus RTU/TCP temperature output; SDK output
- I/O: 1 alarm in / 1 alarm out; warning-light & buzzer linkage
Power, Environmental, Mechanical
- Power: 12 V DC or PoE; low-power operation
- Protection: IP66; lightning/surge protection (outdoor-rated)
