Description

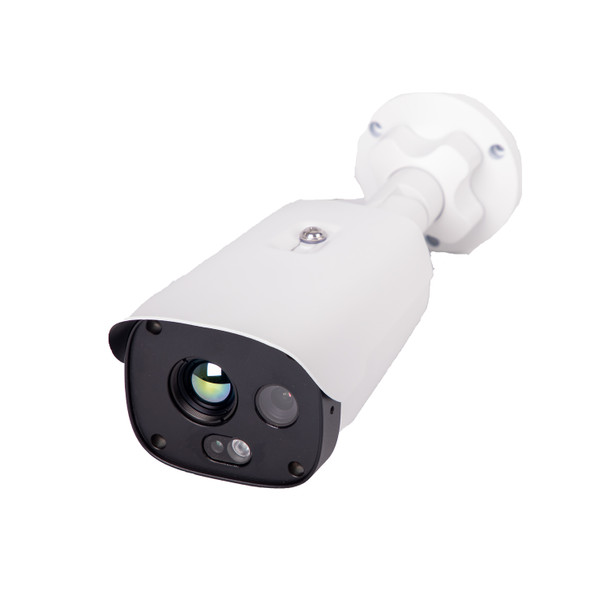

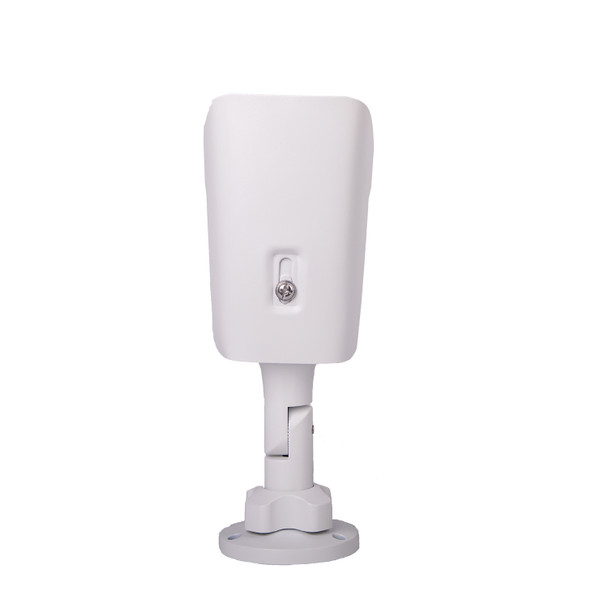

The A2Z AZIRD-TS2XX Thermal Infrared IP Security Camera makes dual-spectrum monitoring accessible without sacrificing integration or analytics—perfect for a variety of indoor or outdoor surveillance system and monitoring needs. Its 256×192 VOx thermal sensor detects heat anomalies reliably, while the 1080p visible channel documents scene detail. Fusion, PIP, and temperature overlay unlock faster situational awareness for building diagnostics, small facilities, and perimeter checks.
Thermal measurement is comprehensive: 10 movable points, 10 areas, and 3 line measurements, plus emissivity control (0.01–1.0), radiance adjustment, and raw 25 Hz exporting. Standard ranges cover –20 °C to 180 °C with a high-temperature span up to 500 °C; accuracy remains ±2 °C or ±2% (max applied). A 30m IR fill light supports true night vision on the visible channel, while alarm linkage can drive a warning light and buzzer during events.
Deployment is streamlined via PoE power, IP66 weatherproofing with surge protection, and open protocols—including ONVIF Profile S/G, RTSP, GB28181, and Modbus RTU/TCP for temperature output into SCADA/PLC systems.
Key Features:
- 256×192 uncooled VOx thermal; high sensitivity (NETD ≤ 0.05 °C) - (raw <9Hz default)
- 1920×1080 visible-light CMOS; 30m IR night vision (NIR fill)
- Dual-spectrum imaging: fusion, PIP, visible-light temperature overlay
- Real-time temperature tools: 10 points, 10 areas, 3 lines; raw 25 Hz output
- Measurement ranges: –20 °C–180 °C and 0–500 °C; accuracy ±2 °C or ±2% (max)
- On-board video analytics for event detection and smarter alerting
- Modbus RTU/TCP temperature output; SDK output
- ONVIF S/G, RTSP, GB28181; HTTPS, 802.1X security
- 1 alarm input / 1 alarm output; warning-light & buzzer linkage
- PoE or 12 V DC power; IP66 weatherproof with lightning/surge protection
- N.C.N.R. Special Order w/ Lead Time
Model Options (No Cost Change):
- AZIRD-TS232 (3.2mm Thermal Lens + Default 4mm Visible Lens) – Default Selection
- AZIRD-TS206 (6mm Thermal Lens + Default 4mm Visible Lens)
- AZIRD-TS232-6 (3.2mm Thermal Lens + Optional 6mm Visible Lens)
- AZIRD-TS206-6 (6mm Thermal Lens + Optional 6mm Visible Lens)
Specifications Summary:
Imaging
- Thermal Sensor: Uncooled VOx FPA, 256×192; NETD ≤ 0.05 °C
- Visible Sensor: 1/2.8″ CMOS, 1920×1080; 30m IR/NIR fill
Optics & FOV
- Thermal Lenses: 3.2mm / 6mm; FOV approx. 50°×38° / 29.8°×22.3°
- Visible Lenses: 4mm / 6mm
Temperature & Analytics
- Measurement Ranges: –20 °C–180 °C; high range to 500 °C; ±2 °C or ±2% (max)
- Tools: 10 points, 10 areas, 3 lines; emissivity 0.01–1.0; radiance adjustable; (raw <9Hz default)
Networking & Integration
- Video/Protocols: H.264; TCP/IP, RTSP, GB28181, ONVIF S/G; HTTPS, 802.1X
- Industrial: Modbus RTU/TCP temperature output; SDK output
- I/O: 1 alarm in / 1 alarm out; warning-light & buzzer linkage
Power, Environmental, Mechanical
- Power: 12 V DC or PoE; low-power operation
- Protection: IP66; lightning/surge protection (outdoor-rated)
