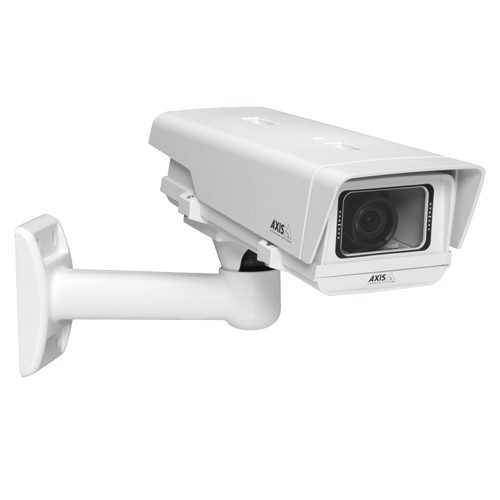

Axis M1114-E Megapixel HD IP Security Camera

Axis M1114-E Megapixel HD IP Security Camera is a high performance Megapixel Camera. Its all in one outdoor design, Megapixel HD Imaging and varifocal lens make it a top model in the Axis M11 Network Camera line. The Axis M1114-E delivers full frame rate 720p HD (high definition) or 1 Megapixel IP video Surveillance. The camera unit further offers dual steaming of H.264 and Motion JPEG codecs with a variety of individual stream settings. The M1114-E IP camera also includes a DC Auto Iris, Varifocal 2.8-8mm CS Mount lens for easily adjustable field of view. The Axis M1114-E provides low light imaging but is best suited for surveillance applications with adequate lighting. The Axis Outdoor Network Camera M1114-E of course offers in depth image settings and intelligent video motion detection with event triggers. The Axis M1114-E is a fully weatherproof camera thanks to it outdoor IP66 rated enclosure and feed through cable mount perfect for single cable installation with PoE. The Axis M1114-E is an excellent choice for professional IP security camera systems needing a high performance camera in a well lit environment with a
low cost!

Axis M1114-E Main Features:

• AXIS M1114-E: varifocal, DC-iris lens: 1 MP/HDTV 720p
• Image sensor Progressive scan RGB CMOS 1/4”
• DC-iris, CS mount: Varifocal 2.8 - 8 mm: 77° - 29° view*, F1.2 *horizontal angle of view
• Light sensitivity/Min. Illumination: 0.6 lux, F1.2
• Shutter time 1/24 500 s to 1/6 s
• Video
• Video compression
• H.264 (MPEG-4 Part 10/AVC), Motion JPEG
• Resolutions: 1280x800* to 160x90 *1440x900 (1.3 MP) scaled resolution available via VAPIX®
• Frame rate H.264 30 fps in all resolutions
• Frame rate Motion JPEG 30fps in all resolutions
• Video streaming Multiple, individually configurable streams in H.264 and Motion JPEG
• Controllable frame rate and bandwidthVBR/CBR H.264
• Pan/Tilt/Zoom Digital PTZ, preset positions, guard tour
• Image settings Compression, color, brightness, sharpness, contrast, white balance, exposure control, exposure zones, backlight compensation, fine tuning of behavior at low light, mirroring of images
• Rotation – including Corridor Format
• Text and image overlay, privacy mask
• Network
• Security Password protection, IP address filtering, HTTPS** encryption, digest authentication, user access log
• Supported protocols
• IPv4/v6, HTTP, HTTPS**, QoS Layer 3 DiffServ, FTP, SMB, SMTP, Bonjour, UPnP™, SNMPv1/v2c/v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS
• System integration Application
• Programming Interface
• Open API for software integration, including VAPIX® from Axis Communications, specifications available at www.axis.comAXIS Video Hosting System (AVHS) with One-Click Camera connection
• Intelligent video Video motion detection, active tampering alarm
• Event triggers: Intelligent video
• Event actions File upload: FTP, HTTP, network share and email
• Notification: email, HTTP and TCP
• Pre- and post-alarm video buffering
• Data Streaming Event data
• Installation aids in software
• Pixel counter
• General
• Casing Camera: Aluminum and plastic
• Camera Housing: IP66-rated weatherproof acrylate enclosure
• Color: white NCS S 1002-B
• Processor and memory: 128 MB RAM, 128 MB Flash
• Power: PoE (Power over Ethernet IEEE 802.3af Class 1)
• Connectors RJ-45 10BASE-T/100BASE-TX PoE
• Edge storage Support for recording to network share (Network Attached Storage or file server)
• Operating conditions
• Operating Temp: -20 °C to 50 °C (-4 °F to 122 °F)
• Humidity: 15 - 100% RH (condensing)
• Approvals EN 55022 Class B, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-3, EN 55024,
• FCC Part 15 Subpart B Class B, ICES-003 Class B, VCCI Class B, C-tick AS/NZS CISPR 22,KCC Class A, IEC/EN 60950-22, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60529 IP66, IEC 60068-2-30, IEC 60068-2-78
• Weight AXIS M1114-E: 790 g (1.74 lb.)
• Included accessories
• Wall bracket, sunshield, User’s Guide, CD with installation tools, recording software and Windows decoder 1-user license, Desiccant bag
• Optional accessories
• AXIS T93E05 Protective Housing (for AXIS M11 Network Cameras) (Housing Already included)
• Mounting Accessories
• AXIS T8414 Installation Display
• AXIS P8221 Network I/O Audio Module
• AXIS Power over Ethernet products
