ACTi I96 1080P HD IP PTZ Camera WDR 30x IP67 PoE

Write a Review
Calculated at Checkout
  • ACTi I96 PTZ Camera Clear Dome
  • ACTi I96 HD PTZ Camera Smoke Dome

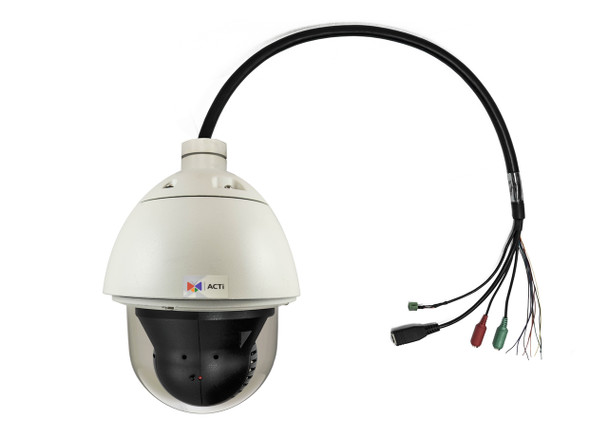

  • ACTi I96 PTZ Camera and Cable

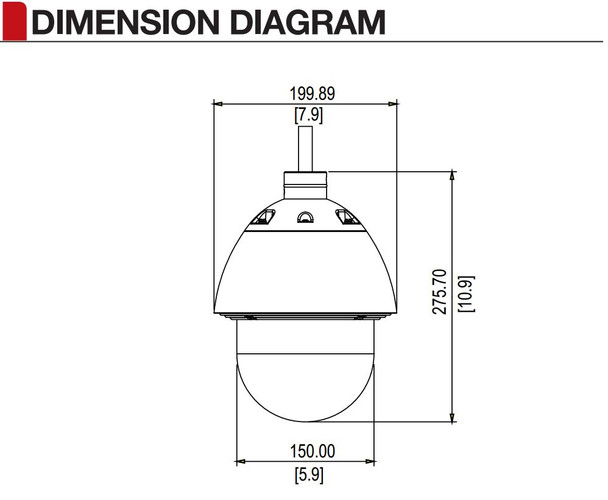

  • ACTi I96 PTZ dimensions
  • ACTi I96 optional IK10 high impact PTZ dome covers


ACTi I96 HD IP PTZ Speed Dome Camera is a superb choice for professional outdoor High Definition IP Surveillance Systems. Outfitted with a 2 Megapixel 1080P HD CMOS sensor and True Day/Night operation these units provide crystal clear video security around the clock. In addition Image enhancements like Extreme WDR to DNR ensure absolute clarity in even the most challenging lighting. Excellent Pan/Tilt/Zoom performance is realized with high speed movement, accuracy plus extended Pan/Tilt operation. Everything from 30x optical zoom to built-in intelligence with advanced motion detection, sophisticated alarm triggers and even local recording are included. The ACTi I96 HD PTZ Cameras deliver all the popular attributes like High PoE power input to rugged IP67 weatherproof construction.

ACTi I96 PTZ Main Features:

  • 2 Megapixel 1080P HD CMOS Sensor
  • Full 1080P High Definition at 30fps
  • H.264 and MJPEG Dual Streaming
  • Extreme WDR (145dB Wide Dynamic Range)
  • True Day/Night ICR with Superior Low Light Sensitivity and DNR (2D+3D Noise Reduction)
  • 30X Optical Zoom w/DC Auto Iris, Auto Focus
  • High Speed Pan/Tilt/Zoom with 256 preset positions, 10 guard tours and Auto Scan
  • Superior Pan/Tilt: 360° Endless Pan and Above the Horizon Tilt -20° ~ 200°
  • Numerous Network IT Protocols: TCP, UDP, HTTPS, PPPoE, RTP, RTSP, IPv6, DDNS, NTP, ICMP, FTP, SMTP, UPnP and more
  • Two Way Audio - G.711 Compression, External Device Input/Output
  • MicroSDHC or MicroSDXC memory card slot (card sold separate)
  • Alarm I/O Interface: 4 Inputs and 2 Outputs
  • Alarm Triggers Go to PTZ Preset/Tour, Command Devices, E-Mail Notification, Local Recording, and FTP upload, External Relay
  • ONVIF Compliance for easy third party IP camera system install
  • IP67 Weatherproof, High Impact Vandal IK10 Body and IK09 Dome (IK10 optional)
  • Extended Operating Temperature Range: -40°C ~ 50°C (-40°F ~ 122°F) within 30mins
  • High PoE (IEEE802.3at) or 24VAC Power Input
  • Dimensions (Φ x H): 200mm x 276mm (7.9 x 10.9-inches)
  • Weight: 2500 grams (5.51 lbs.)

ACTi IP Video Excellence:
ACTi I96 HD PTZ Security Cameras like other units from ACTi deliver exceptional performance for a competitive cost. These units provide real-time 30fps full 1080P High Definition video with optional MJPEG or H.264 dual streaming. Also equipped with an Extreme WDR (145dB Wide Dynamic Range) for industry leading results in even the highest contrast scenes. Likewise advantages such as 2D plus 3D Digital Noise Reduction (DNR) optimize low light imaging for certain clarity. Furthermore, in-depth security camera video settings allow professional customization of shutter speed, AGC, BLC, Brightness, Sharpness and fully adjustable video orientation. There are even more perks like Defogging and Digital Image Stabilization which all combine for an industry best PTZ surveillance system solution.

Complete Pan/Tilt/Zoom Functionality:
The I96 ACTi HD PTZ IP Cameras are high speed dome units that offer top tier characteristics, sure to meet the most demanding applications needs. The units incorporate a 30x optical zoom with DC Iris and Auto Focus for long range IP surveillance. Likewise they allow endless 360 degree Pan (rotation) and 20 degrees over the horizon Tilt range for maximum versatility. Precision and Speed combined with support for 256 preset positions, 10 guard tours and even auto scan are all accessible. Even-more these PTZs support third party PTZ Protocols from Sony and Pelco as well as Absolute Positioning for an installers ideal capabilities.

ACTi Feature Packed Design:
The list of professional features cover nearly any possible demand allowing administrators, integrators to users all satisfaction. Comprehensive Network IT compliance for protocols like UPnP, ARP, IGMP, ICMP, RTSP, PPPoE while network security functions like HTTPS encryption, IEEE 802.1x or IP Address Filtering and more are all on-board. Functions like Privacy Masking, Alarm Triggers via Motion Detection or external alarm input along with numerous alarm triggers allow for complex automated system actions. ACTi I96 HD PTZ Cameras include local recording with MicroSDHC and MicroSDXC memory cards to various alerts from email notifications to FTP uploads. Little if anything is missing from these new Pan/Tilt/Zoom systems and users will appreciate the full range of abilities such as the Two Way Audio. This and beyond is packaged with a user friendly web interface and ONVIF compliance for easy IP camera system integration.

Rugged Design, Professional Flexibility, Easy Installation:
As expected the I96 ACTi IP PTZ Security Cameras easily adapt to all sorts of project install requirements. First off, these outdoor PTZ dome models are simply made tough, featuring an IP67 weatherproof construction and offering up to an IK10 High Impact, Vandal Proof Dome housing. Made for harsh environments, units include heater and fan enabling extended operating temperatures to -40 degrees Fahrenheit. Another true quality is the fact that these PTZs can be installed with a little as a single network cable thanks to High PoE power input, yet 24VAC power input is also still available. Nearly any Install can be achieved with an array of mounting accessories like a Pedant Pipe Mount or Wall Mount as well as others like Parapet, Corner and Pole Mount adapters are all selectable.



PMAX-0312 Wall Mount Adapter
PMAX-0702 Junction Box
PMAX-0102 Pendant Pipe Mount
PMAX-0402 Corner Adapter
PMAX-0503 Pole Mount Adapter
PDCX-1005 Transparent IK10 Vandal proof Dome Cover
PDCX-1108 Smoked IK10 Vandal Proof Dome Cover
Other accessories available

Shown below with Pendant Ceiling Pipe Mount


Shown Below with Wall Mount and Junction Box


Last Updated January 5, 2015
