ACTi

ACTi E82 3 Megapixel Vandal WDR IR Dome IP Camera

Write a Review
SKU:
E82
Shipping:
Calculated at Checkout
$0.00

Description

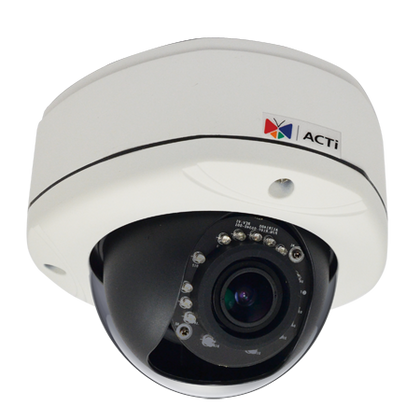

ACTi E82 3 Megapixel IR Vandal Dome IP Security Camera is a rugged choice for day or night, high definition IP surveillance. The network camera delivers a stunning 15fps 3 megapixel resolution and equally impressive 30fps 1080P HD format. Advanced H.264 and MJPEG compression are also included with dual streaming. The integrated Infrared IR LED array enables absolute night vision with DNR (digital noise reduction) for superb clarity. This IR Vandal Dome IP Camera from ACTi is further equipped with a 2.8-12mm varifocal lens and 3-axis camera mount for easy alignment.

In addition to super low light or even no light video surveillance, the dome cameras also have a basic WDR function for high contrast lighting. Internally, these cameras are just as smart with in-depth image settings, dual video streams with bit rate control to advanced alarm trigger and event notification methods. Privacy Masking, Motion Detection and Local Recording to MicroSDHC card slot are even incorporated for a potentially stand-alone, all-in-one surveillance system.

ACTi E82 3 Megapixel Infrared Vandal Dome IP Cameras are built to IP66 weatherproof and IK10 vandal proof ratings for maximum camera protection. The units are offered with a range of mounting accessories and easy install is achieved with PoE (power over ethernet) input. All the most desired functions like support for RTSP, FTP or ONVIF (and many more) enable customized security camera systems and surveillance deployment.

ACTi E82 Main Features:

  • 1/3.2" CMOS Progressive Scan Image Sensor
  • 3 Megapixel at 15fps or 1080P HD at 30fps Real-time with Basic WDR
  • Infrared LED Array (850nm): 15 meter or 49 feet effective IR illumination
  • Minimum Illumination Color: 0.1 lux at F2.0 (30 IRE, 2400°K); B/W: 0 lux (IR LED on)
  • Megapixel Varifocal Fixed Iris Lens: 2.8-12mm / F1.4 (70.5° Wide - 28.2° Telephoto)
  • Viewing Angle Adjustment Pan: 0° - 350°; Tilt: 17° - 163°; Rotate: 0° - 350°
  • Video Compression of H.264 HP and MJPEG dual video streaming including Bit Rate Mode Constant, Variable
  • Max Frame Rate and Resolution: 3MP at 15fps(2048x1536); 1080P at 30fps (1920x1080P); 720P at 30fps (1280x720); VGA at 30fps (640x480); CIF at 15fps (320x240)
  • Electronic Shutter 1/5 ~ 1/2,000 sec (manual mode); 1/5 ~ 1/10,000 sec (auto mode)
  • Image Enhancement: Basic WDR (69 dB); White balance: automatic, hold, and manual; Brightness; Contrast; Auto Sharpness; AGC; DNR (Digital Noise Reduction); Flickerless
  • Privacy Mask 4 configurable regions, Text Overlay, Image Orientation Image flip and mirror
  • Network Protocol and Service: TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour
  • RJ-45 connector, Ethernet Port 1, Ethernet (10/100 Base-T)
  • Security IP address filtering; HTTPS encryption; Password set user levels; Anonymous login; IEEE 802.1X network access control
  • Alarm Trigger: Video Motion Detection (3 VMD zones)
  • Alarm Response: Notify control center; Change settings; Command devices; E-mail notifications plus snapshots; Save video or snapshot to SD Card; snapshot and video upload to FTP
  • Local Recording Storage MicroSDHC memory card slot (card not included)
  • Approvals CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B), IK10, IP66
  • Outdoor Environmental Casing IP66 rated Weatherproof; IK10 rated Vandal proof; transparent dome cover (smoke option)
  • Supported Mounting Options: Surface, Pendant, Wall, Corner, Pole, Flush (some accessories sold separately)
  • Power over Ethernet Power input: PoE Class 2 (IEEE802.3af) Consumption 4.54 W (IR on)
  • Operating Temperature -40°C ~ 50°C (-40°F ~ 122°F) Operating Humidity 10% ~ 85% RH
  • Dimensions (Ø x H) 150.76 mm x 116.9 mm (6" x 4.6")
  • Weight: 1015 g (2.24 lb.)
